ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
Specifications
Brand Name :
YUHONG
Model Number :
L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case
Base Tube Material :
TP321
Base Tube Standard :
ASTM A249 , ASME SA249
Type :
Wound, L type, LL Type, KL Type
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type :
L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description

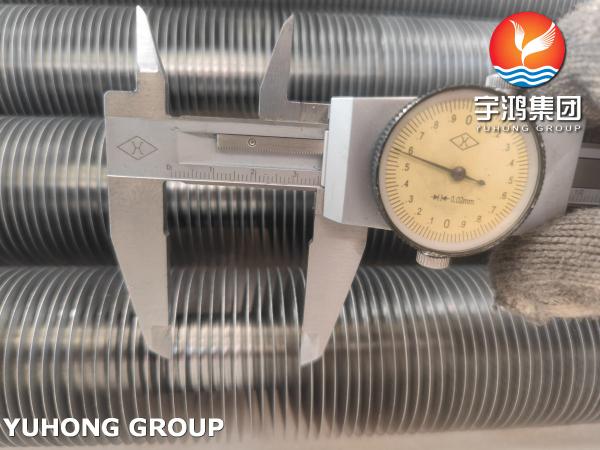

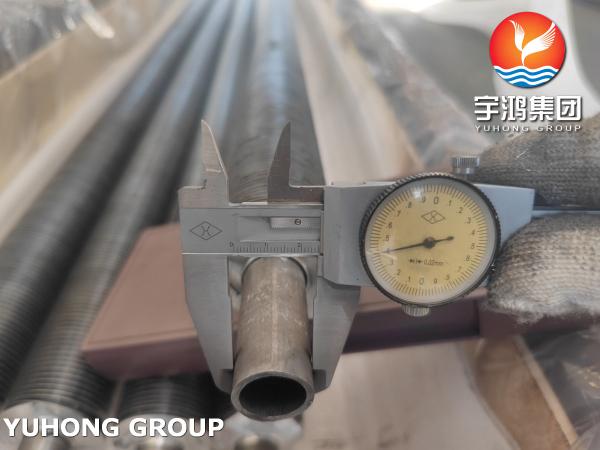

Wound Fin Tube ASTM A249 TP321 For Air Cooler, Heat Exchanger, Condenser
Product Specifications
Base Tube Material TP321
Base Tube Standard ASTM A249, ASME SA249
Type Wound, L type, LL Type, KL Type
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

TP321 is a titanium-stabilized austenitic stainless steel offering excellent resistance to intergranular corrosion following exposure to temperatures between 427°C to 816°C (800°F to 1500°F). This alloy is particularly suitable for high-temperature applications requiring oxidation and corrosion resistance.

When used in ASTM A249 TP321 Wound Fin Tubes, it provides robust performance and efficient heat transfer for applications in power generation, industrial boilers, chemical processing, and aerospace industries.

Type Description Base tube O.D. (mm) Fin pitch Fin height Fin thick
Wound L / KL / LL Type Fin Tube 16-63 2.1-5 <17 ~0.4
Chemical Composition
Grade C Mn Si P S Cr Ni Ti
TP321 ≤ 0.08% ≤ 2.00% ≤ 0.75% ≤ 0.045% ≤ 0.030% 17.0-19.0% 9.0-12.0% 5x(C + N) minimum, 0.70% maximum
Mechanical Properties
Tensile Strength 515 MPa (75,000 psi) minimum
Yield Strength 205 MPa (30,000 psi) minimum
Elongation 40% minimum in 50 mm
Hardness ≤ 95 HRB (Rockwell Hardness B)
Key Features
  • Enhanced Heat Transfer: Fins significantly increase surface area for improved heat transfer rates
  • Corrosion Resistance: TP321 provides excellent resistance to oxidation and intergranular corrosion
  • Mechanical Bonding: Wound fin design ensures secure bond between fins and base tube
  • High Thermal Conductivity: Aluminum fins ensure efficient heat exchanger performance
  • Durable Construction: TP321 base tube withstands mechanical stress at high temperatures
Applications
Heat Exchangers

Shell and Tube Heat Exchangers for chemical/petrochemical industries and Air-Cooled Heat Exchangers for industrial/HVAC applications.

Boilers and Superheaters

Used in steam boilers and superheaters in power generation plants and industrial boilers requiring high temperature/pressure resistance.

Chemical Processing

Ideal for heat exchangers and condensers in chemical plants and petrochemical refineries handling corrosive substances.

Aerospace and Defense

Employed in aerospace heat exchangers where materials must withstand extreme temperatures and corrosive environments.

ASTM A249 TP321 Wound Copper Fin Tube Coil Pipe 22mm For Air Cooler Condenser
