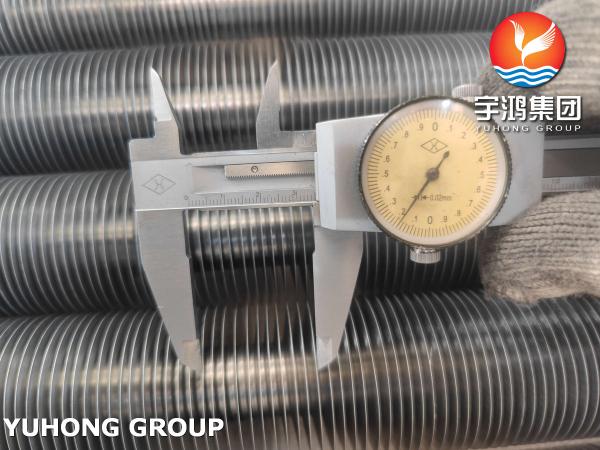

Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Intercooler Wound Finned Copper Pipe Tube L Type ASTM A179 Corrosion Resistance
Specifications
Brand Name :
YUHONG
Model Number :
L Type Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C,T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply - Wooden Case + Iron Frame
Features :
High Efficiency, Corrosion Resistance, Easy To Clean
Type :
L/LL/KL Type Fin Tube
Base Tube Standard :
ASTM A179, ASME SA179
Fin Materials :
Aluminium, Copper
Bare Tube Diameter(MM) :
16-63 Mm
Fin Pitch(MM) :
2.1-5 Mm
Fin Height(MM) :
<17 Mm
Fin Thick(MM) :
~0.4 Mm
Use :
Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc
Highlight :
Al1060 Spiral Wound Fin Tubes, L Type Spiral Wound Fin Tubes, ASME SA179 Spiral Wound Fin Tubes
Description
ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler Boiler
Product Description

The ASTM A179 Wounded Fin Tube design significantly enhances the surface area of the tube, improving heat exchange efficiency and enabling effective thermal transfer in a compact space. AL1060 aluminum alloy has excellent corrosion resistance, making it suitable for various chemical environments and extending the lifespan of the tubes.

The L-fin structure enables high-efficiency heat exchange in limited spaces, making it suitable for compact equipment layouts. These tubes are widely applicable in refrigeration, air conditioning, and petrochemical industries, meeting various operational demands.

Chemical Composition
Grade C Si Mn P S Mo Cr V
A179 0.06-0.18 / 0.27-0.63 ≤0.035 ≤0.035 / / /
Mechanical Properties of ASTM A179/A179M
Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%) Hardness (HRB)
≥325 ≥180 ≥35 ≤72
Specifications For Various Types Of Finned Tubes
Type Description Base tube O.D. (mm) Fin pitch (mm) Fin height (mm) Fin thick (mm)
Embedded G-type fin tube 16-63 2.1-5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6-10 <17 0.2-0.4
Low fin tube t-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube corrugated tube 16-51 8~30 <2.5 /
Wound L/KL/LLtype fin tube 16-63 2.1-5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studded fin tube 25-219 8~30 5~30 φ5-20
Key Advantages
  • High Heat Exchange Efficiency
  • Corrosion Resistance
  • Lightweight Design
  • Excellent Thermal Conductivity
  • Space Efficiency
  • Versatile Applications
  • Ease of Maintenance
Applications
  • Plate heat exchangers
  • Shell-and-tube heat exchangers
  • Industrial cooling towers
  • Circulation cooling systems
  • Central air conditioning systems
  • Split air conditioners
  • Boilers
  • Reactors
  • Evaporators
  • Heat Pump Systems
