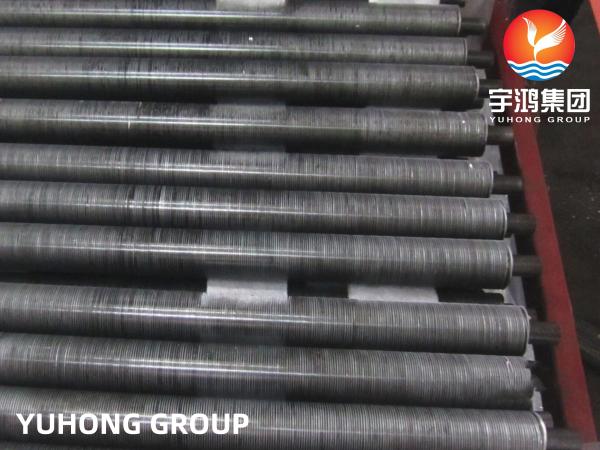

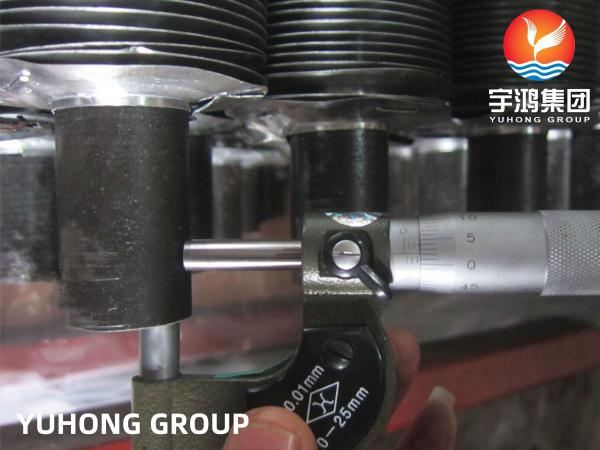

ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
ASTM B209 Gr.1060 low Aluminium Finned Tubes For Heat Exchangers KL Type
Specifications
Brand Name :
YUHONG
Model Number :
L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case
Base Tube Material :
Gr.A-1
Base Tube Standard :
ASME SA210 , ASTM B209
Type :
Wound, L type, LL Type, KL Type
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type :
L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description
Wound Fin Tube ASME SA210 Gr.A-1 Aluminum ASTM B209 Gr.1060 For Air Cooler, Heat Exchanger
Product Specifications
Attribute Value
Base Tube Material Gr.A-1
Base Tube Standard ASME SA210, ASTM B209
Type Wound, L type, LL Type, KL Type
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

The Wound Fin Tube with ASME SA210 Gr.A-1 base and ASTM B209 Gr.1060 aluminum fins is engineered for optimal performance in heat exchanger applications. Gr.A-1 is a medium-carbon steel grade specifically designed for high temperature and pressure environments, making it ideal for boiler and superheater tubes.

Technical Specifications
Type Description Base tube O.D. (mm) Fin pitch Fin height Fin thick
Wound L / KL / LL Type Fin Tube 16-63 2.1-5 <17 ~0.4
Chemical Composition
Grade C Mn P S Si
Gr.A-1 0.27-0.33% 0.93% minimum ≤ 0.035% ≤ 0.035% 0.10% minimum
Mechanical Properties
Tensile Strength 415 MPa (60,000 psi) minimum
Yield Strength 255 MPa (37,000 psi) minimum
Elongation 30% minimum in 50 mm
Hardness ≤ 79 HRB (Rockwell Hardness B)
Key Features
  • Enhanced Heat Transfer: Aluminum fins significantly increase surface area for improved heat transfer rates
  • Corrosion Resistance: Aluminum fins provide excellent resistance to corrosion in air and water environments
  • Mechanical Bonding: Wound L type fin design ensures secure mechanical bond between fins and base tube
  • High Thermal Conductivity: Aluminum fins ensure efficient heat exchanger performance
  • Durable Construction: Gr.A-1 base tube provides strength and resistance to mechanical stress
Applications
Boilers and Superheaters
  • Power Plants: Steam boilers and superheaters in power generation
  • Industrial Boilers: High temperature and pressure industrial applications
Heat Exchangers
  • Shell and Tube Heat Exchangers: Chemical and petrochemical industries
  • Air-Cooled Heat Exchangers: Industrial and HVAC cooling systems
Chemical Processing
  • Chemical Plants: Heat exchangers and condensers
  • Petrochemical Refineries: High strength and corrosion resistance applications
