OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
OEM Spiral Wound Finned Copper Tube Tubing 15mm ASME SA179
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
7-45DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
A179
Fin Material :
Alumunium AL1060
Fin Height :
15.875mm
Fin Thk. :
0.4mm
FPI :
9-13
Application :
Heat Exchanger
Description

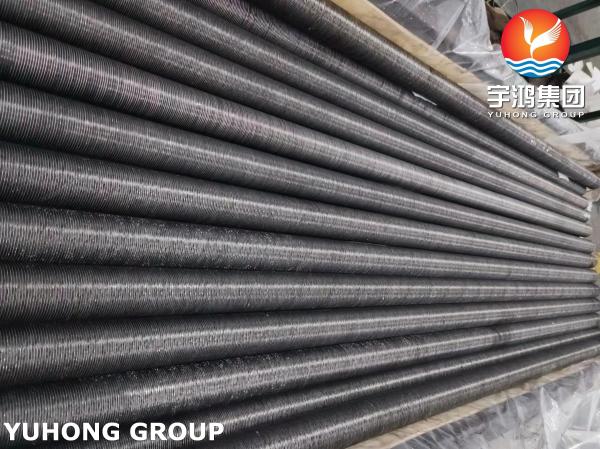

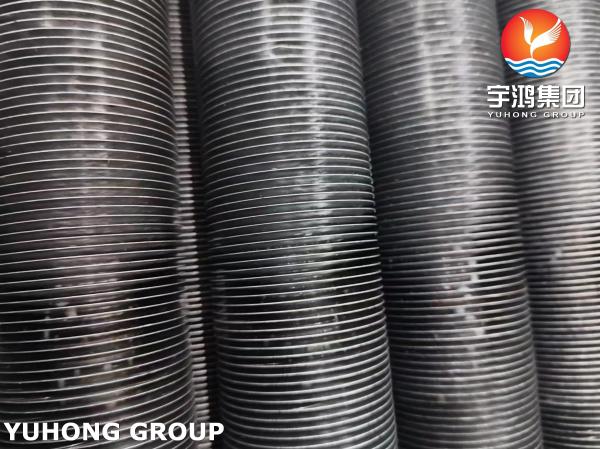

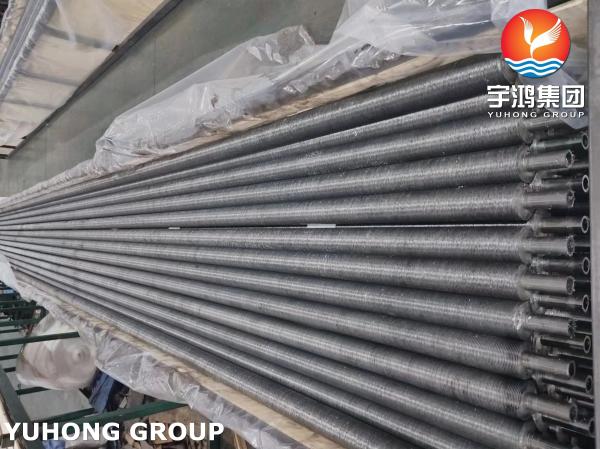

ASME SA179 ASTM A179 Carbon Steel L Type Fin Tubes With Al1060 Aluminium Strip
Attribute Value
Material A179
Fin Material Aluminium AL1060
Fin Height 15.875mm
Fin Thk. 0.4mm
FPI 9-13
Application Heat Exchanger
Product Overview

The ASTM A179 / ASME SA179 Carbon Steel L-Type Fin Tubes with Al1060 Aluminum Strip are engineered for heat exchanger applications, delivering exceptional thermal efficiency and corrosion resistance. These tubes combine carbon steel (ASTM A179) for structural integrity with Al1060 aluminum fins for optimal heat transfer, creating a cost-effective and durable solution for industrial cooling systems including air coolers, condensers, and heat exchangers.

Key Features
  • Base Tube Material: ASTM A179 Carbon Steel - Low-carbon steel with excellent mechanical properties and thermal conductivity, ideal for high-temperature and high-pressure environments.
  • Fin Type: L-Type Fin - Spiral-wound aluminum strip design increases surface area for superior heat dissipation with minimal air-side resistance.
  • Fin Material: Al1060 Aluminum Strip - Offers exceptional thermal conductivity, lightweight properties, and corrosion resistance.
  • Application: Heat Exchanger, Air Coolers, Condensers - Designed for industrial systems requiring high-efficiency heat transfer in demanding environments.
Chemical Composition
Base Tube: ASTM A179 Carbon Steel
Element Composition
Carbon (C) ≤ 0.06%
Manganese (Mn) 0.27% - 0.63%
Phosphorus (P) ≤ 0.035%
Sulfur (S) ≤ 0.035%
Fin Material: Al1060 Aluminum
Element Composition
Aluminum (Al) ≥ 99.0%
Iron (Fe) ≤ 0.35%
Copper (Cu) ≤ 0.05%
Silicon (Si) ≤ 0.25%
Mechanical Properties
Base Tube: ASTM A179 Carbon Steel
Property Value
Tensile Strength 335 - 485 MPa
Yield Strength ≥ 205 MPa
Elongation ≥ 30%
Hardness Brinell hardness: 160 - 190 HB
Fin Material: Al1060 Aluminum
Property Value
Tensile Strength 70 - 110 MPa
Yield Strength 30 - 55 MPa
Elongation ≥ 20%
Advantages
  • High Heat Transfer Efficiency: L-type fin design maximizes surface area for optimal heat dissipation.
  • Corrosion Resistance: Al1060 aluminum provides excellent resistance to oxidation and corrosion.
  • Durability and Strength: Carbon steel base tube withstands high-pressure conditions while aluminum fins ensure long-term reliability.
  • Energy Efficiency: Superior thermal conductivity reduces energy consumption in cooling systems.
  • Cost-Effectiveness: Combines affordable carbon steel with high-performance aluminum for optimal value.
Applications
  • Industrial air cooling systems
  • Chemical processing and petrochemical plant heat exchangers
  • Industrial condensers
  • Large-scale HVAC systems
Conclusion

The ASTM A179 Carbon Steel L-Type Fin Tube with Al1060 Aluminum Strip delivers exceptional performance in heat exchanger and cooling applications. Its innovative design combines high thermal efficiency, corrosion resistance, and mechanical durability, making it an ideal solution for demanding industrial environments.
