HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
7-45DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Material :
A179
Fin Material :
Al1060, Al1100
Fin Type :
G Type, Embedded
Fin tube test :
HT/ET
Fin thk :
0.4mm
FPI :
9-13
Description

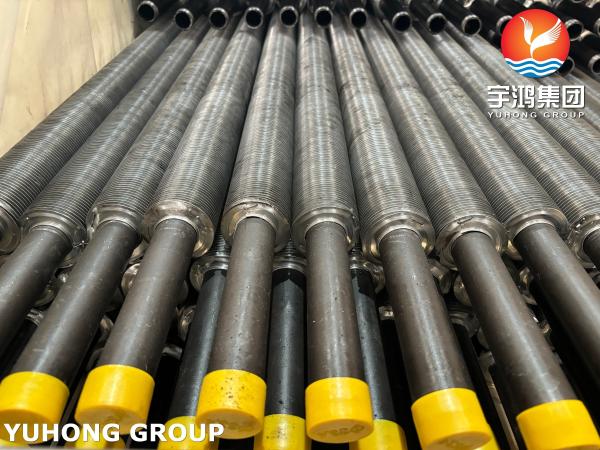

L Type Wound Fin Tube ASTM A179 Carbon Steel Tube Fin Material Al1060 For HVAC
Material
A179
Fin Material
Al1060, Al1100
Fin Type
G Type, Embedded
Fin tube test
HT/ET
Fin thk
0.4mm
FPI
9-13
Key Features
  • Base Tube Material: ASTM A179 Carbon Steel, offering excellent thermal conductivity and mechanical properties.
  • Fin Material: AL1060 Aluminum, known for its high thermal conductivity, lightweight, and corrosion resistance.
  • Fin Type: L-Type Wound Fins, mechanically wound for strong attachment and optimized heat transfer.
  • Application: Designed for HVAC systems, ensuring efficient heat exchange in air conditioning and ventilation applications.
Technical Specifications
Property Base Tube (ASTM A179) Fin (AL1060)
Outer Diameter (OD) 15.88 mm - 50.8 mm Customizable based on design
Wall Thickness 1.5 mm - 4.0 mm -
Fin Thickness - 0.3 mm - 0.5 mm
Fin Pitch - 3 - 5 fins per inch
Fin Attachment Mechanically wound (L-type)
Chemical Composition
Element ASTM A179 (Base Tube) AL1060 (Fin)
Carbon (C) 0.06 - 0.18% ≤ 0.03%
Manganese (Mn) 0.27 - 0.63% ≤ 0.03%
Phosphorus (P) ≤ 0.035% -
Sulfur (S) ≤ 0.035% -
Aluminum (Al) - ≥ 99.6%
Mechanical Properties
Property ASTM A179 (Base Tube) AL1060 (Fin)
Tensile Strength ≥ 325 MPa 60 - 100 MPa
Yield Strength ≥ 180 MPa 30 - 50 MPa
Elongation ≥ 35% ≥ 25%
Advantages
  • High Thermal Efficiency: AL1060 aluminum fins ensure excellent heat dissipation and energy transfer.
  • Corrosion Resistance: AL1060 fins resist oxidation in humid HVAC environments.
  • Durable Design: L-type wound fins provide robust mechanical attachment and durability under thermal cycling.
  • Lightweight: Aluminum fins reduce overall weight, improving installation and operational efficiency.
Applications
  • HVAC Systems: Heat exchangers for air conditioning and ventilation.
  • Refrigeration Units: Enhancing thermal performance in cooling systems.
  • Air Handling Units: Optimizing heat exchange for industrial and commercial applications.
HVAC Wound Stainless Steel Finned Tube ASTM A179 Carbon Steel Material ODM
