TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
Specifications
Brand Name :
YUHONG
Model Number :
Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China,Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Bundle + Cap , Ply wooden case
Base Pipe Standard :
ASTM A312 , ASME SA 312, ASTM A376, ASME SA376
Base Tube Material :
TP304, TP304L, TP304H, 1.4301 , 1.4306, 1.4307
Fin Type :
Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Application :
Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test :
Hammer Hitting Test
Studded Tube Length :
Max.: 34m /pc
Description
Stainless Steel Studded Tube, ASME SA312 TP304H With 11Cr, Fired Heater Tube Coils Application
Product Specifications
Attribute Value
Base Pipe Standard ASTM A312, ASME SA 312, ASTM A376, ASME SA376
Base Tube Material TP304, TP304L, TP304H, 1.4301, 1.4306, 1.4307
Fin Type Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Application Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test Hammer Hitting Test
Studded Tube Length Max.: 34m /pc
Product Description

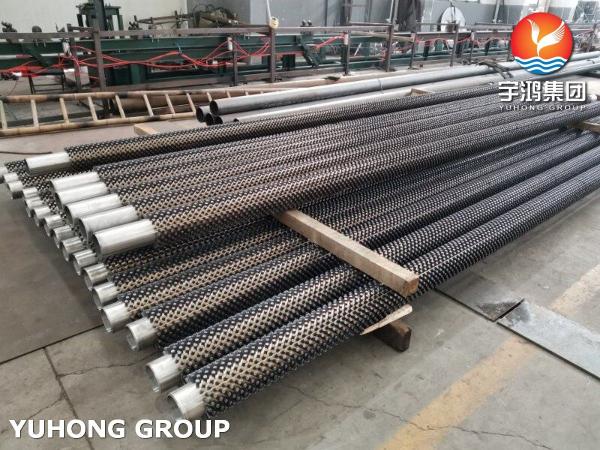

Studded Tubes are specially designed for convection chambers in petrochemical heating furnaces to significantly enhance heat transfer efficiency. These tubes offer two to three times the heat transfer surface area compared to standard tubes while maintaining equivalent thermal strength when properly designed.

TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized

Our manufacturing process features:

  • Precision resistance welding controlled by PLC automation
  • Servo motor-driven feeding and graduation systems
  • Customizable stud configuration via human-computer interface
  • Adjustable graduation parameters and compensation coefficients
Material Composition
ASME SA312 TP304H Chemical Composition (%)
C Si Mn P S Cr Ni Mo Ti Nb Cu Al V Co Fe Result
0.04~0.1 ≤1.0 ≤2.0 ≤0.045 ≤0.03 18.0~20.0 8.0~11.0 / / / / / / / /
Mechanical Properties
ASME SA312 TP304H Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2(Mpa) Elongation: A (%)
≥515 ≥205 ≥35
Manufacturing Advantages
  • 20,000 square meter production facility with 4 specialized finning machines
  • Daily production capacity of 50,000 studs
  • Strategic location near Shanghai Port (under 2 hours transport)
  • Exceptional performance under extreme temperature and pressure conditions
TP304H SS Low Fin Tube Cooling Systems ASME SA312 11Cr Customized
Typical Applications

Boiler systems, Steam Furnaces, Fired Heaters, Evaporators, Radiant Tube Coils, Convection Tube Coils, Superheaters, and other high-efficiency heat transfer applications.
