ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
Specifications
Brand Name :
YuHong
Model Number :
ASME SA335 P9 Studded Finned Tube with AS Studs
Certification :
ABS, BV, ISO, ASTM, SGS
Place of Origin :
China
MOQ :
200 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Clients' requirements
Delivery Time :
35-60 Days (Depend on Order's Quantity and Complexity)
Packaging Details :
Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Product Name :
Studded Tube / Studded Finned Tube
Base Tube Specification&Material :
ASME SA335 P9
Fin material :
Alloy Steel
Base Tube O.D. :
25-219 mm
Fin O.D. :
5~20 mm
Fin Height :
5~35 mm
Fin Pitch :
8~30 mm
Processing method :
Welding
Application Industries :
Petrochemical and Refinery; Power Generation; HVAC systems and so on
Description
Studded Finned Tube ASME SA335 P9 with Alloy Steel Studs for Heater and Furnace
Product Specifications
Attribute Value
Product Name Studded Tube / Studded Finned Tube
Base Tube Specification & Material ASME SA335 P9
Fin Material Alloy Steel
Base Tube O.D. 25-219 mm
Fin O.D. 5~20 mm
Fin Height 5~35 mm
Fin Pitch 8~30 mm
Processing Method Welding
Application Industries Petrochemical and Refinery; Power Generation; HVAC systems
Product Overview

A studded finned tube is a high-performance heat exchanger component featuring welded studs that significantly enhance heat transfer efficiency between fluids and gases. The stud design maximizes surface area while maintaining a compact footprint, making it ideal for demanding industrial applications.

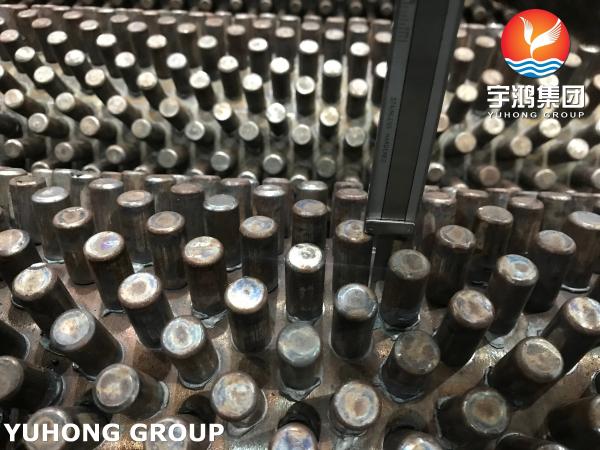

ASME SA335 P9 Studded Longitudinal Finned Tube Stainless Steel For Heater Furnace
Base Tube Material: ASME SA335 P9
Chemical Composition (Weight %)
Element Composition Range
Carbon (C) 0.15 max
Manganese (Mn) 0.30 - 0.60
Phosphorus (P) 0.025 max
Sulfur (S) 0.025 max
Silicon (Si) 0.25 - 1.00
Chromium (Cr) 8.00 - 10.00
Molybdenum (Mo) 0.90 - 1.10
Nickel (Ni) 0.40 max (optional)
Vanadium (V) 0.18 max (optional)
Iron (Fe) Balance
The 9% Cr-1% Mo composition provides exceptional high-temperature strength and oxidation resistance, while low carbon content ensures good weldability.
Mechanical Properties
Property Value
Tensile Strength (min) 415 MPa (60,000 psi)
Yield Strength (min) 205 MPa (30,000 psi)
Elongation (min, % in 50mm) 30%
Hardness (max, Brinell HBW) 179 HBW
Impact Toughness (Charpy V-Notch, min at 21°C) Typically required (varies by spec)
Supplied in normalized & tempered condition for optimal strength and ductility. Retains strength up to ~650°C (1200°F) and requires preheating (~200-300°C) with post-weld heat treatment (PWHT) to prevent cracking.
Studded Finned Tube Design Advantages
  • Increased Surface Area: Studs significantly enhance heat transfer surface for superior thermal efficiency
  • Compact Design: Maximizes heat transfer capacity without increasing physical footprint
  • High-Temperature Performance: Resilient in extreme conditions up to 650°C (1200°F)
  • Reduced Fouling: Smooth stud surfaces minimize deposit buildup compared to traditional fins
  • Enhanced Durability: Superior erosion/corrosion resistance in harsh industrial environments
Industrial Applications
  • Power Generation: Heat Recovery Steam Generators (HRSGs), Fluidized Bed Boilers, Superheaters
  • Petrochemical: Fired Heaters, Catalytic Cracking Units (FCCU), Coker Units
  • Waste Treatment: Waste-to-Energy Plants, Air Preheaters (APH)
  • Chemical Processing: Sulfuric Acid Plants, Ammonia Production, Syngas Coolers
  • Heavy Industry: Cement Clinker Coolers, Blast Furnace Gas Ducts
