Specifications
Brand Name :
YUHONG
Model Number :
ASTM A213 T9
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
Depend the size of finned tubes, 50-100PC
Price :
30-10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons/month
Delivery Time :
40-60 days
Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Type :
Studded Fin Tubes
Standard :
ASTM A213
Material :
T9 Base Tubes and CS Fins
O.D. :
Generally Greater Than 100mm
Length :
According to clients' need
Use :
For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Packing :
Ply-wooden Case With Iron Frame
Description
Studded Tubes ASTM A213 T9 For Furnaces In Corrosive Environment
Product Specifications
Attribute Value
Product Fin Tubes or Finned Tube
Type Studded Fin Tubes
Standard ASTM A213
Material T9 Base Tubes and CS Fins
O.D. Generally Greater Than 100mm
Length According to clients' need
Use For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc

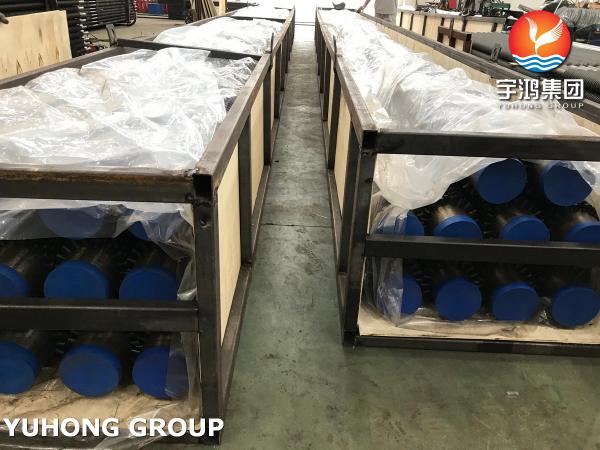

Packing Ply-wooden Case With Iron Frame
Product Overview

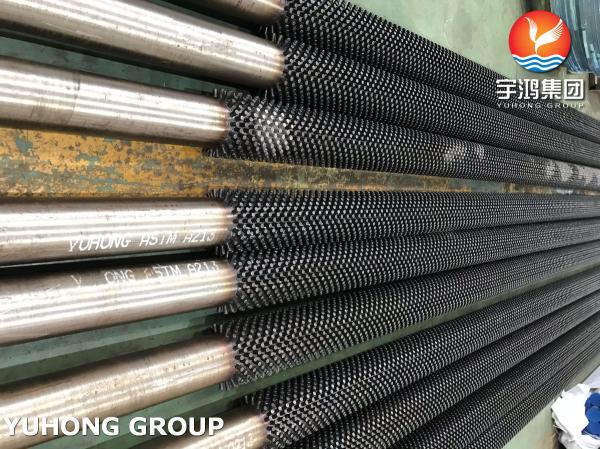

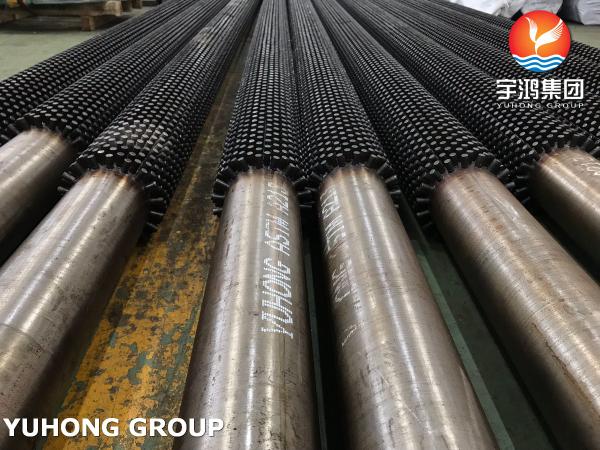

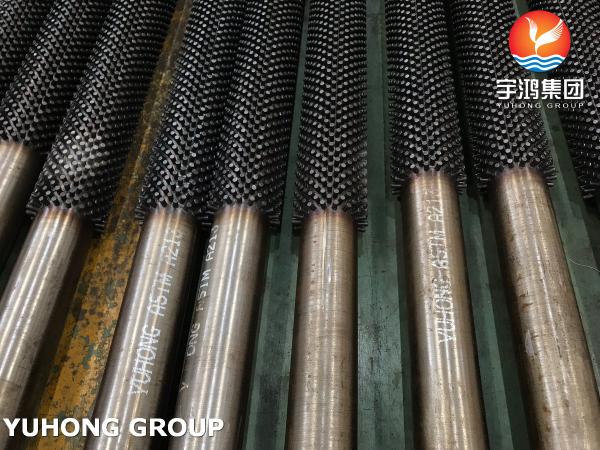

Studded fin tubes, also known as nail head tubes or nail-like ribbed tubes, are widely used in petrochemical industries, particularly in the convection chambers of tubular furnaces to enhance heat transfer effects.

OEM T9 Studded Tube Finned Aluminum Tubing For Furnaces
Design Features
  • Studded Fins: Protruding fins increase surface area for heat transfer and promote turbulent flow
  • Material: Constructed from durable materials including carbon steel, stainless steel, alloy or copper
  • Robust Structure: Studs arranged in specific formations for effective heat transfer in high-pressure applications
ASTM A213 T9 Alloy Specifications

ASTM A213 covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, including Grade T9.

Chemical Composition (%)
Grade C Mn P S Si Cr Mo
T9 0.15 0.30-0.60 0.025 0.025 0.025-1.00 8.00-10.00 0.90-1.10
Mechanical Properties
Grade Tensile Strength,min Yield Strength (0.2%Offset,min)
T9 60ksi (415 MPa) 30ksi (205 MPa)
OEM T9 Studded Tube Finned Aluminum Tubing For Furnaces
Key Advantages
  • Minimal heat affected zone with excellent weld microstructure
  • Significantly improved heat exchange efficiency compared to smooth tubes
  • Superior corrosion and wear resistance with low contact thermal resistance
  • Enhanced fluid mixing for improved thermal performance
  • Versatile applications across multiple industries
  • Robust construction for harsh operating conditions
Industrial Applications
  • Heat exchangers, boilers, furnaces and refineries
  • Power generation, petrochemical processes, and HVAC systems
  • Cooling towers, condensers, and evaporators
  • Fired heaters and thermal process equipment
  • Ship cooling systems and marine heat exchangers
Finned Tube Specifications
Type Description Base tube O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Wound L / KL / LL type fin tube 16-63 2.1~5 <17 ~0.4
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
Studded Studded fin tube 25-219 8~30 5~35 φ5-20
OEM T9 Studded Tube Finned Aluminum Tubing For Furnaces
