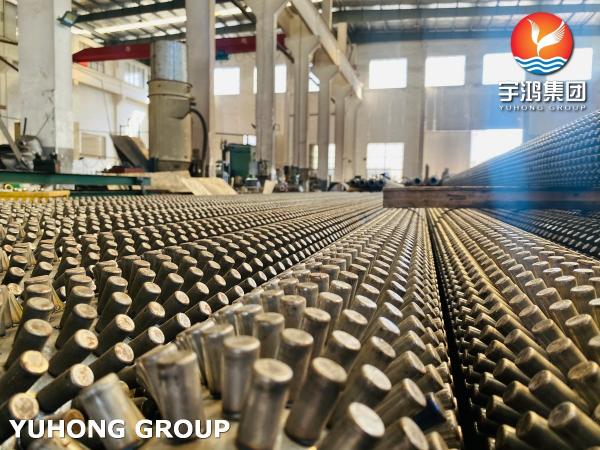

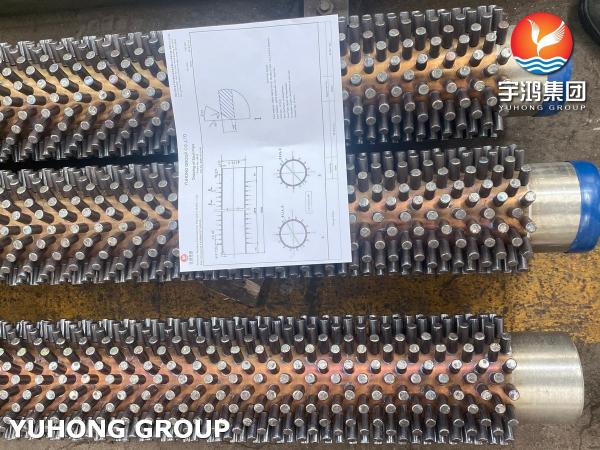

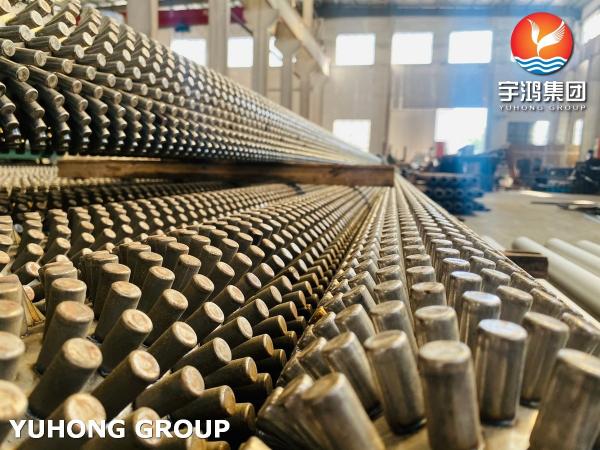

SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
SS409 SS410 Longitudinal Finned Studded Tube Alloy Steel 50mm-325mm
Specifications
Brand Name :
YUHONG
Model Number :
Studded Fin Tube, Studded Tube, Pin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Bundle + Cap , Ply wooden case
Base Pipe :
ASTM A335 P5, ASME SA335 P5
Stud Material :
SS409 , SS410, 11Cr, 13Cr
Studded Tube OD :
50mm ~ 325mm
Studded Tube Length :
Max.: 34m/pc
Studs Diameter :
12.7mm, 15.88 19.05mm
Studs Hight :
Max.: 50.8mm
Studded Tube Application :
Furnace, Fired Heater, Convective Heater Coils
Description
Alloy Steel Studded Tube, ASME SA335 P5 With 11Cr, Fired Heater, Convective Heater Coils For Oil Refinery
Product Specifications
Attribute Value
Base Pipe ASTM A335 P5, ASME SA335 P5
Stud Material SS409, SS410, 11Cr, 13Cr
Studded Tube OD 50mm ~ 325mm
Studded Tube Length Max.: 34m/pc
Studs Diameter 12.7mm, 15.88mm, 19.05mm
Studs Height Max.: 50.8mm
Application Furnace, Fired Heater, Convective Heater Coils
Product Description

Studded tubes are engineered components commonly used in heat exchangers and boilers. The strategically placed studs on the exterior surface significantly increase the effective surface area, dramatically improving heat transfer efficiency. This makes studded tubes particularly valuable in applications where optimal heat exchange is critical, including industrial processes, power generation systems, and petrochemical plants.

Key Applications in Heater Systems
  • Heater Coils: Enhances heat transfer efficiency by increasing available surface area for thermal exchange
  • Combustion Chamber: Improves heat transfer rates and overall system efficiency
  • Radiant Section: Maximizes heat transfer between hot gases and internal process fluid
  • Convection Section: Optimizes heat transfer from flue gases to process fluid
ASME SA335 P5 Chemical Composition (%)
C Si Mn P S Cr Ni Mo Ti Nb Cu Al V Co Fe Result
≤0.15 ≤0.50 0.3~0.6 ≤0.025 ≤0.025 4.0~6.0 / 0.45~0.65 / / / / / / / /
ASME SA335 P5 Tensile Test (ASTM A370-20)
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2 (Mpa) Elongation: A (%)
≥415 ≥205 ≥30
Material Advantages
  • High Temperature Performance: Engineered for demanding high-temperature environments in power plants and refineries
  • Superior Corrosion Resistance: Alloy composition ensures durability in corrosive conditions
  • Creep Resistance: Maintains mechanical properties under prolonged high-temperature exposure
  • Application Versatility: Suitable for steam pipelines, boiler tubes, heat exchangers, and superheaters
Fin Tube Specifications
Type Description Base Tube O.D. (mm) Fin Pitch (mm) Fin Height (mm) Fin Thickness (mm)
Embedded G-type fin tube 16-63 2.1-5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6-10 <17 0.2-0.4
Low fin tube T-type fin tube 10-38 0.6-2 <1.6 ~0.3
Bamboo tube Corrugated tube 16-51 8~30 <2.5 /
Wound L/KL/LL type fin tube 16-63 2.1-5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studded Studded fin tube 25-219 8~30 5~30 φ5-20
