ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
Specifications
Certification :
ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Brand Name :
YUHONG
Model Number :
Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Place of Origin :
China,Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Bundle + Cap , Ply wooden case
Base Pipe Standard :
ASTM A312 , ASME SA 312, ASTM A376, ASME SA376
Base Tube Material :
TP304, TP304L, TP304H, TP309, TP310, TP310H, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Fin Type :
Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Application :
Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test :
Hammer Hitting Test
Studded Tube Length :
Max.: 34m /pc
Description
Stainless Steel Seamless Pipe ASTM A312 TP317L with 11Cr Studded Tube
Fired Heater and Furnace Application
Product Specifications
Base Pipe Standard ASTM A312, ASME SA 312, ASTM A376, ASME SA376
Base Tube Material TP304, TP304L, TP304H, TP309, TP310, TP310H, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H
Fin Type Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Application Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test Hammer Hitting Test
Studded Tube Length Max.: 34m /pc
Product Description

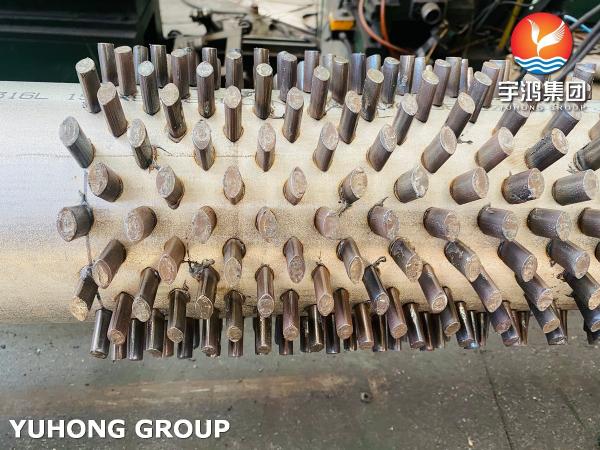

Studded fin tubes are heat exchanger tubes with metal studs or pins welded onto the surface, creating additional surface area for improved heat transfer efficiency in various industrial applications.

Dimensions
  • Base Tube / Core Tube O.D: 15.88 - 325mm
  • Fin Height: 6 - 50.8mm
  • Fin Thickness: 0.8 - 3.0mm
  • Fin Pitch: Customizable to customer requirements
  • End Types: Plain Ends / Beveled Ends
  • No Fin Area on Both Sides: Customizable per customer drawing
ASME SA312 TP317L Chemical Composition (%)
C Si Mn P S Cr Ni Mo
≤0.035 ≤1.0 ≤2.0 ≤0.045 ≤0.03 18.0~20.0 11.0~15.0 3.0~4.0
ASME SA312 TP317L Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2(Mpa) Elongation: A (%)
≥515 ≥205 ≥35
Manufacturing Advantages
  • 20,000+ square meters workshop with 4 finning machines
  • Daily extrusion capacity up to 700m
  • Proximity to Shanghai Port (less than 2 hours' drive)
  • High rigidity for extreme temperature and pressure conditions
Applications
  • Air Cooler
  • Charge Air Chiller
  • Condenser
  • Evaporator
  • Fluid Cooler
  • Gas Cooler
  • Oil Cooler
  • Radiator
  • Refrigeration
  • Steam to Air Heat Exchanger
  • Superheater
ODM Stainless Steel Seamless Finned Pipe Aluminum Tubing ASTM A312 TP317L
