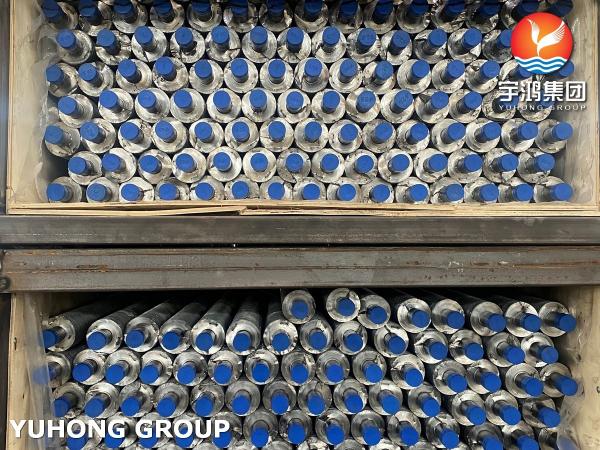

TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
TP316L Stainless Steel Seamless G Type Finned Tube Micro Coil ASTM A213 Oil Refinery Cooling
Specifications
Brand Name :
YUHONG
Model Number :
G Fin tube , Embedded Fin tube , Stainless Steel Embedded G Type Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
MOQ :
1 PC
Price :
1 - 10000 USD
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Base Tube Material Grade :
TP316, TP316L , TP316H, SUS316, SUS316L, 1.4404
Base Tube Material Standard :
ASTM A213, ASME SA213, JIS G3459, GOST 9941
Type :
Straight Tube , U bend Tube , Coil Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type :
G Fin tube , Embedded Fin tube , Embedded G Type Fin Tube
Fin Material :
Aluminum , Copper
Testing :
Firmness Test, Pull Test
Description
Embedded G Fin Tube, Stainless Steel Seamless Tube ASTM A213 TP316L With Aluminum 1060, Oil Refinery Cooling
Product Specifications
Attribute Value
Base Tube Material Grade TP316, TP316L, TP316H, SUS316, SUS316L, 1.4404
Base Tube Material Standard ASTM A213, ASME SA213, JIS G3459, GOST 9941
Type Straight Tube, U bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type G Fin tube, Embedded Fin tube, Embedded G Type Fin Tube
Fin Material Aluminum, Copper
Testing Firmness Test, Pull Test
Product Description

Embedded G fin tubes feature a fin strip wound into a machined groove and securely locked into place by back filling with base tube material. This construction ensures maximum heat transfer is maintained at high tube metal temperatures.

Embedded fins (G Fins) are manufactured by winding aluminum or copper strip into a helical groove machined on the outer surface of the tube.

Fin Tube Specifications
Type Description Base tube O.D. (mm) Fin pitch (mm) Fin height (mm) Fin thickness (mm)
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube Corrugated tube 16-51 8.0~30 <2.5 /
Wound L/KL/LL type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
ASME SA213 TP316L Chemical Composition (%)
C Si Mn P S Cr Ni Mo
≤0.035 ≤1.0 ≤2.0 ≤0.045 ≤0.03 16.0~18.0 10.0~14.0 2.0~3.0
ASME SA213 TP316L Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2(Mpa) Elongation: A (%)
≥515 ≥205 ≥35
Testing Equipment
  • Hydraulic test lines up to 40MPa
  • Under water pneumatic test
  • Computer controlled microscope
  • Penetration Test
  • Ultrasonic thickness gauge
  • Fin Firmness Test equipment
  • Other specialized testing equipment
Applications
  • Dry Kiln
  • Steam systems
  • Refineries
  • Energy plants
  • Reactors
  • Heat exchangers
  • Gas Station air cooling
  • Cooling towers
  • Waste equipment
