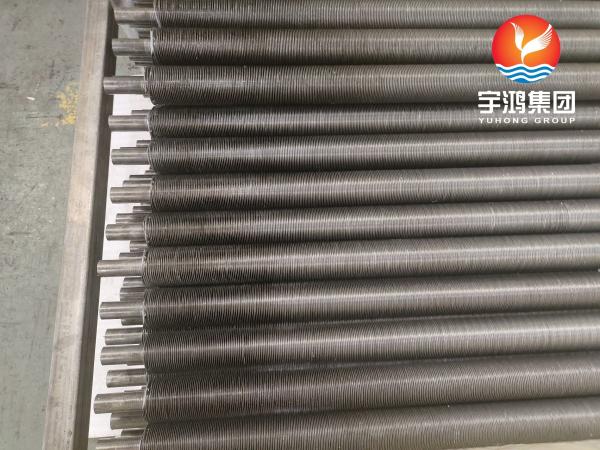

ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A179
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
Depend the size of finned tubes, 50-100PC
Price :
1-10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons/month
Delivery Time :
30-60 days
Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Type :
Embedded G Type
Standard :
ASTM A179
Material :
Base Tubes SA179 and AL1100 Fins
Application :
Radiators / Heat exchanger / Economizaer, etc.
Packing :
Ply-wooden Case With Iron Frame
Description
ASTM A179 Embedded G Type Finned Tube With Aluminum Gr. 1100 For Radiators
Product Specifications
Attribute Value
Product Fin Tubes or Finned Tube
Type Embedded G Type
Standard ASTM A179
Material Base Tubes SA179 and AL1100 Fins
Application Radiators / Heat exchanger / Economizer, etc.
Packing Ply-wooden Case With Iron Frame
Material Composition
Grade C Mn P S
A179 0.06-0.18 0.27-0.63 0.035 0.035
Mechanical Properties
Grade Tensile Strength min Yield Strength min Elongation in 2" or 50mm min
A179 47ksi (325 MPa) 26ksi (180 MPa) 35%
Product Features
ASTM A179 covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. Due to their excellent thermal conductivity, mechanical properties, and cost-effectiveness, these tubes are highly preferred for making fin tubes.
  • Excellent thermal conductivity ensures efficient heat transfer between the fluid inside the tube and the fins
  • Cost-effective compared to other materials like stainless steel or copper alloys
  • Ideal for large-scale industrial applications
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
Performance in Radiator Applications
  • Enhanced Heat Transfer: Increased surface area allows for more efficient heat dissipation
  • Strong Mechanical Bond: Excellent contact between fins and tube minimizes thermal resistance
  • Durability: Superior resistance to thermal cycling and mechanical stress
  • Corrosion Resistance: Suitable for harsh environments and corrosive fluids
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
Common Applications
  • HVAC Systems for heating and cooling applications
  • Industrial Radiators in power plants and manufacturing facilities
  • Automotive Radiators for engine cooling
  • Oil Coolers in hydraulic systems
ASTM A179 Steel G Fin Tube With Aluminum Gr. 1100 For Radiator Economizar
Embedded G-type fin tubes are critical components in radiators due to their enhanced heat transfer capabilities, durability, and thermal stress resistance. Their embedded fin design ensures reliable performance in HVAC systems, industrial radiators, and automotive cooling applications.
