Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
Specifications
Brand Name :
YUHONG
MOQ :
1 PC
Model Number :
G Fin tube , Embedded Fin tube , Embedded G Type Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China , Korea
Price :
1 - 10000 USD
Supply Ability :
10000 Tons/Month
Delivery Time :
5 - 90 Days
Packaging Details :
Ply-Wooden Case + Iron Frame
Base Tube Material Grade :
NO4400 , Monel 400 , 2.4360
Base Tube Material Standard :
ASTM B163 , ASME SB163
Type :
Straight Tube , U bend Tube , Coil Tube
Application :
Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type :
G Fin tube , Embedded Fin tube , Embedded G Type Fin Tube
Fin Material :
Aluminum , Copper , Stainless Steel , Carbon Steel
Description

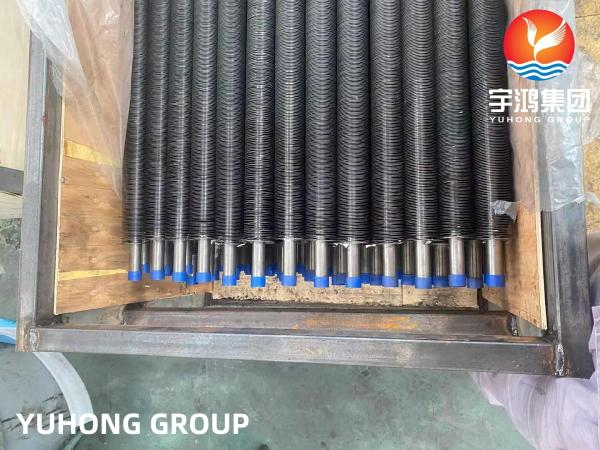

Monel 400 Embedded G Fin Tube, Base Tube ASME SB163 NO4400, Fin Material Al 1060
Product Specifications
Attribute Value
Base Tube Material Grade NO4400, Monel 400, 2.4360
Base Tube Material Standard ASTM B163, ASME SB163
Type Straight Tube, U bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type G Fin tube, Embedded Fin tube, Embedded G Type Fin Tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

Embedded G fin tubes, or G-type fin tubes, are a specialized finned tube design where fins are mechanically embedded into grooves on the tube surface. This construction creates a strong mechanical bond between fins and tube, ensuring optimal heat transfer efficiency and long-term durability.

Key Features
  • Enhanced heat transfer performance
  • Durable mechanical bond between fins and tube
  • Groove-cut tube surface for secure fin attachment
  • Ideal for demanding industrial applications

These fin tubes are widely used in industries requiring efficient heat transfer, durability, and reliable performance. Their robust construction makes them essential components in various heating and cooling systems across multiple sectors.

Base Tube Material: Monel 400 (UNS N04400)

Monel 400 is a solid solution nickel-copper alloy that can only be hardened through cold working (drawing or rolling). It offers excellent strength and toughness across a wide temperature range, along with superior resistance to corrosive environments. This material is particularly valued in marine and chemical processing applications.

Material Equivalents
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4360 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe
Chemical Composition
C Mn Si S Cu Fe Ni
0.3 max 2 max 0.5 max 0.24 max 28 – 34 2.5 max 63 min
Mechanical Properties
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000, MPa – 550 Psi – 35,000, MPa – 240 40 %
Applications
  • Chemical processing equipment
  • Steam systems
  • Refineries
  • Energy plants
  • Reactors
  • Heat exchangers
  • Gas pipelines
  • Waste treatment equipment
Monel 400 Copper Steam Pipe Fins ASME SB163 NO4400 Al 1060
