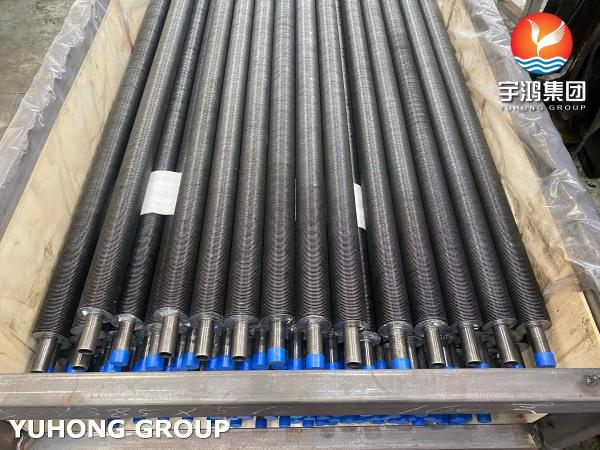

Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Petrochemical HVAC G Type Finned Tube Coil Welded Carbon Steel ODM
Specifications
Brand Name :
YUHONG
Model Number :
Embedded G Type Fin Tube
Certification :
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Place of Origin :
China, Korea
MOQ :
1 PC
Price :
10-1000 USD/PC
Payment Terms :
L/C,T/T
Supply Ability :
10000 TONS PER MONTH
Delivery Time :
20-90 DAYS
Packaging Details :
STEEL FRAME CASE
Base Tube Material Grade :
SA179
Base Tube Material Standard :
ASME SA179, ASTM A179
Fin Material :
Aluminum, Carbon Steel
Max. Working Temperature :
750 °F（400 °C）
Bare Tube Diameter(MM) :
16 - 63 mm
Fin Pitch(MM) :
2.1 - 5 mm
Fin Height(MM) :
<17 mm
Fin Thick(MM) :
~0.4 mm
Description
ASME SA179 Embedded G Type Fin Tube For Air Cooler, Condenser
Product Specifications
Attribute Value
Base Tube Material Grade SA179
Base Tube Material Standard ASME SA179, ASTM A179
Fin Material Aluminum, Carbon Steel
Max. Working Temperature 750 °F (400 °C)
Bare Tube Diameter (MM) 16 - 63 mm
Fin Pitch (MM) 2.1 - 5 mm
Fin Height (MM) <17 mm
Fin Thickness (MM) ~0.4 mm
Product Description

ASME SA179 Embedded G Fin Tube is a high-performance heat transfer component designed for enhanced thermal efficiency. The base tube is constructed from ASME SA179 carbon steel, renowned for its superior heat transfer properties and mechanical strength.

The fin strip is precisely wound into machined grooves on the tube surface and securely locked in place by back filling with base tube material. This innovative design delivers exceptional heat transfer efficiency at elevated tube metal temperatures.

Maximum Working Temperature: 750°F (400°C)
Fin Materials: Aluminum, Copper, Carbon Steel
Chemical Composition
Grade C Mn P S
SA179 0.06-0.18% 0.27-0.63% 0.035% max 0.035% max
Mechanical Properties
Grade Tensile Strength Yield Strength Elongation Hardness
SA179 ≥ 180 MPa (26 ksi) ≥ 325 MPa (47 ksi) Variable based on diameter Typically ≤ 72 HRB
Industrial Applications
Power Generation: Used in heat exchangers for steam generation and cooling systems in power plants, enhancing overall efficiency and output.
Petrochemical Industry: Essential for refineries and chemical processing plants requiring high thermal efficiency and durability in corrosive environments.
HVAC Systems: Maximizes heat exchange in condenser and evaporator coils for improved energy efficiency in air conditioning and refrigeration units.
Oil and Gas Industry: Provides reliable performance in heat exchangers exposed to harsh marine conditions on offshore platforms.
Natural Gas Processing: Maintains process efficiency and reduces energy costs in high-performance heat exchangers.
