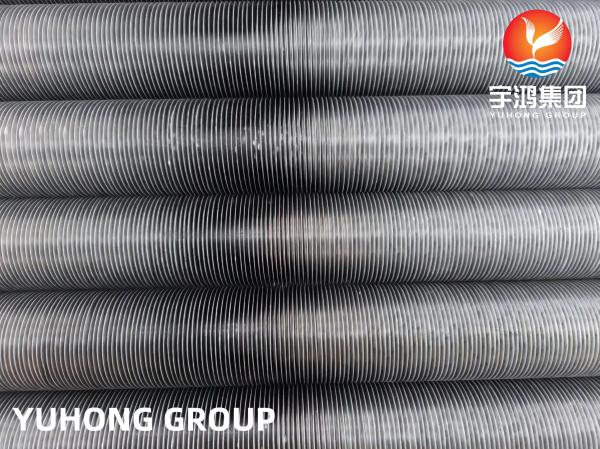

Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Specifications
Brand Name :
YUHONG
Model Number :
Embedded G type fin tube
Certification :
ASME, PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Place of Origin :
China,Korea
MOQ :
1PC
Price :
1--10000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10000 tons/month
Delivery Time :
5---75 days
Packaging Details :
Ply wooden case
Base Tube Material :
A179, SA179 , SA179N, SA179KN, A192, SA192, A1, C , A214 , SA214
Base Tube Standard :
ASTM A178, ASME SA178, ASTM A179, ASME SA179, ASTM A192, ASTM A210, ASME SA210, ASTM A214, ASME SA214
Fin Material Grade :
Aluminum 1050, 1060, 1100 , 6061, 6063
Applicable :
Air Coolering , Cooling tower , Heat Exchanger
Testing :
Pressure Test, Firmness Test, Pulling Test
Length :
Max.: 34m/pc
Description
ASME SA210 A1 Seamless Tube with Aluminum 1060 Embedded G Fin Tube
Product Specifications
Attribute Value
Base Tube Material A179, SA179, SA179N, SA179KN, A192, SA192, A1, C, A214, SA214
Base Tube Standard ASTM A178, ASME SA178, ASTM A179, ASME SA179, ASTM A192, ASTM A210, ASME SA210, ASTM A214, ASME SA214
Fin Material Grade Aluminum 1050, 1060, 1100, 6061, 6063
Applications Air Cooling, Cooling Tower, Heat Exchanger
Testing Pressure Test, Firmness Test, Pulling Test
Length Max.: 34m/pc
Aluminum 1060 Extruded Spiral G Type Finned Tube ASME SA210 A1
Product Description

Yuhong Holding Group brings over 35 years of expertise in manufacturing steel pipes, tubes, and fin tubes for petrochemical, oil refinery, furnace, heating, boiler, heat exchanger, and air cooler applications. Our YUHONG brand products are exported to over 85 countries worldwide and have earned an excellent market reputation.

Embedded G Fin Tube Features
  • Also known as G type Finned Tube, providing perfect fin-to-tube connection
  • Manufactured by grooving tubes and inserting fins into helical grooves
  • Creates integral bond between fin and tube for superior durability
  • Ideal for high temperature applications and thermal cycling
  • Suitable for applications requiring regular fin-side cleaning
Manufacturing Capabilities
  • 20,000 square meters production facility
  • 10 dedicated finning machines for Embedded G type fin tubes
  • Daily extrusion capacity of 1800 meters
  • Strategic location near Shanghai Port (2 hours drive)
Technical Specifications
ASME SA210 Gr.A-1 Chemical Composition (%)
C Si Mn P S Cr Ni Mo
≤0.27 ≤0.10 ≤0.93 ≤0.035 ≤0.035 / / /
ASME SA210 Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa) Yield Strength: Rp 0.2(Mpa) Elongation: A (%)
≥415 ≥255 ≥22
Quality Assurance
  • Chemical Composition Analysis
  • Mechanical Properties Testing
  • Hydrostatic Test
  • Pressure Test
  • Boroscopic Inspection
  • Firmness Test
Applications
  • Heat exchangers for power plants (electric, nuclear, thermal, geothermal)
  • Steam condensate systems
  • Chemical and petrochemical industry
  • Food processing plants and refrigeration technology
  • Industrial applications (steel mills, incinerators, gas compression facilities)
