High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant
High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-J599 MPO
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-J599 MPO
Brand :
Liocrebif
Output format :
RS422
Application :
Zhitong substation, remote communication base station, Military optical communication network, Communication vehicle transmission, long-distance space transmission, portable communication transmission tools for communication soldiers, Remote video conferen
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-J599 MPO
Product Introduction

The J599 MPO fiber optic connector is based on the J599 circular fiber optic connector, utilizing a standard MPO fiber optic connector. The connector features a three-thread quick-connect design, along with a five-key positioning mechanism, offering blind-mate and anti-misinsertion capabilities, as well as vibration resistance. The connector is constructed from stainless steel 316L material, featuring high contact density and electromagnetic shielding functionality. The fiber optic components are removable, facilitating on-site installation. The connector has low insertion loss and high reliability, and is waterproof, dustproof, and corrosion-resistant. It is primarily used in marine vessel communication equipment, aircraft-mounted equipment, and harsh environments such as acidic, alkaline, hydrochloric acid, and humid conditions, as well as military communication and outdoor harsh environment communication applications. The connector is available in configurations ranging from 2 to 96 fibers.

Table1 J599 MPO Main Parameters

Insertion loss

Single mode

≤0.75 dB (low insertion loss ≤0.30 dB)

Multi-mode

≤0.6 dB (typical ≤0.2 dB)

Return loss

Single mode

≥50 dB

Mechanical properties

Plug

≤500 N (main cable)

Socket

≤30 N (branch cable)

Operating temperature

-40°C to 85°C

Protection rating

IP68

Optical cable diameter

7mm

Sheath material

LZSH (or TPU)

Tensile unit

KEVLAR

Fiber type

9/125, 50/125, 62.5/125

Fiber coating

900um tight-fitting fiber

Tensile strength

Short term: 600N Long term: 200N

Operating temperature

-40℃～85℃

Table 2 Dimensions Of The External Structure(See more at Figure 1)

Shell Number

Shell Code

A Max

B Thread

L Max

13

C

29.4

M18*1-6g

32

15

D

32.4

M22*1-6g

32

Main Features

Compliant with GJB599A (MIL-DTL-38999) III series interface The connector uses a five-key positioning system with blind insertion, anti-misinsertion, and anti-vibration functions

Using a three-thread quick connection with an anti-loosening mechanism

Using ceramic ferrules and ceramic sleeves to achieve precise fiber alignment

Applications

Zhitong substation, remote communication base station

Military optical communication network

Communication vehicle transmission, long-distance space transmission, portable communication transmission tools for communication soldiers

Remote video conference signal transmission for practical exercises

Coal mines, oil wells, natural gas, etc.

Geological exploration communication

Broadcast television relay

Emergency fiber optic communication restoration

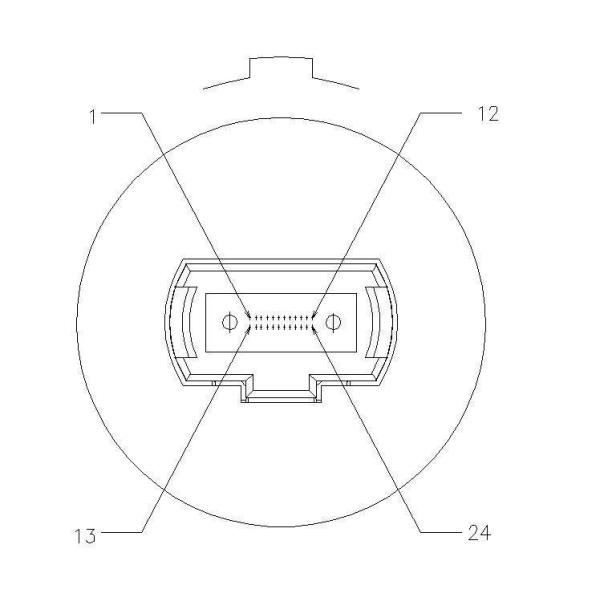

Table 3

Shell Number

Shell Code

Connection Arrangement And Connection Code

13

C

Connection Code

12

Connection Code

24

Specification

MPO12

Specification

MPO24
High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant

 High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant

15

D

Connection Code

12

Connection Code

24

Specification

MPO12

Specification

MPO24
High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant

High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant

Figure 1
High Power Mpo Fiber Connector Mpo Optical Connector Vibration Resistant
