Powerful Fiber Optic Termination Fiber Optic Ends J599 III Easy Installation
Powerful Fiber Optic Termination Fiber Optic Ends J599 III Easy Installation
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-J599 III
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-J599 III
Brand :
Liocrebif
Output format :
RS422
Application :
Aviation, Electronics, Weapons, Ships, Electricity, Fiber optic communication systems for harsh outdoor environments
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-J599 III

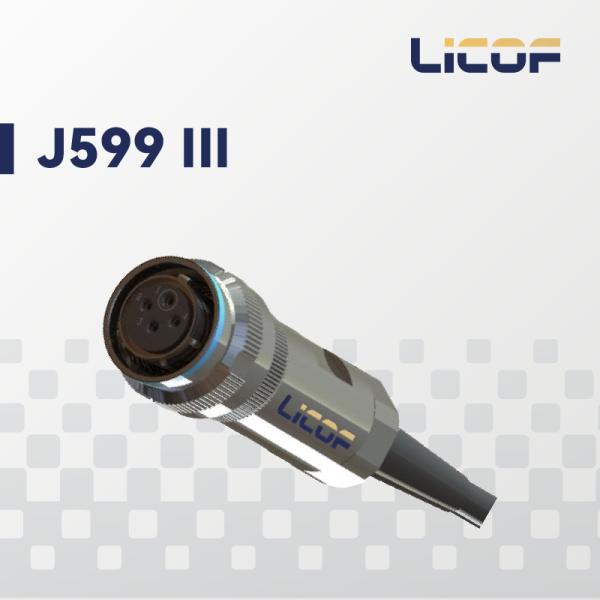

Product Introduction

The J599 III series fiber optic connectors use a five-key circular identification positioning system. The five-key positioning system has blind insertion and anti-misinsertion functions, as well as vibration resistance. The connectors are made of 316L or aluminum alloy materials. They feature low loss, high reliability, and removable fiber components for easy on-site installation. The outer casing can be made of different materials and coatings to meet different environmental requirements.

Table1 J599 III Main Parameters

Insertion loss

≤0.6 dB (≤4 cores)

≤0.75 dB (≥5 cores)

Mechanical life

500 times

Operating temperature

-55°C to +85°C (depending on the optical cable used)

Tensile strength

≥720 N (multi-core cable)

Vibration

10 Hz to 2000 Hz, acceleration: 147 m/s²

Impact

980 m/s²

Table 2 Dimensions Of The External Structure(See more at Figure 2)

Shell Name

Shell Code

A Max

Thread

L Max

09

A

21.80

M12x1-6g

32

11

B

25.00

M15x1-6g

32

13

C

29.40

M18x1-6g

32

15

D

32.40

M22x1-6g

32

17

E

35 60

M25x1 6g

32

19

F

38.50

M28x1-6g

32

21

G

41.70

M31x1-6g

32

23

H

44.90

M34x1-6g

32

25

J

48.00

M37x1-6g

32

Main Features

Compliant with GJB599A (MIL-DTL-38999) Series III interface

The connector uses a five-key circumferential identification and positioning mechanism for blind mating and anti-misinsertion

The socket features a three-thread quick-connect design with an anti-loosening mechanism

The housing can be made from different materials and coatings to meet various environmental requirements

Constructed from stainless steel 316L material, with high contact density and electromagnetic shielding functionality

Utilizes ceramic pins and ceramic sleeves for precise fiber optic alignment

Applications

Aviation

Electronics

Weapons

Ships

Electricity

Fiber optic communication systems for harsh outdoor environments

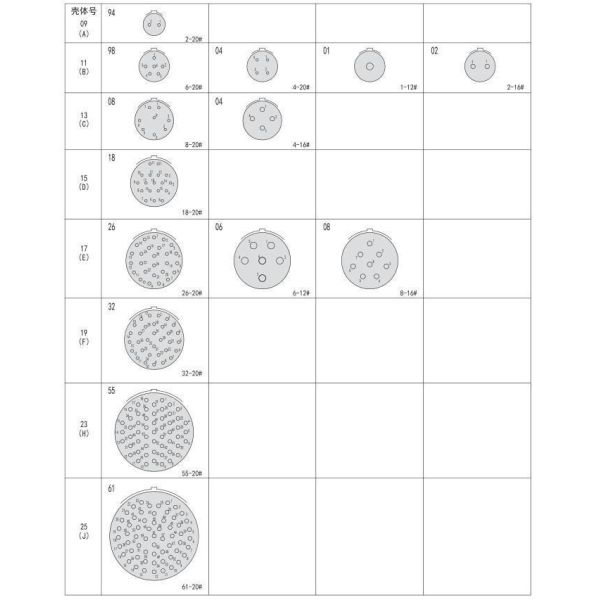

Figure 1
Powerful Fiber Optic Termination Fiber Optic Ends J599 III Easy Installation
Figure 2
Powerful Fiber Optic Termination Fiber Optic Ends J599 III Easy Installation
