1950-2050nm Wavelength Fiber Optic Patch Cords Standard For Medical Detection Equipment
1950-2050nm Wavelength Fiber Optic Patch Cords Standard For Medical Detection Equipment
1950-2050nm Wavelength Fiber Optic Patch Cords Standard For Medical Detection Equipment
1950-2050nm Wavelength Fiber Optic Patch Cords Standard For Medical Detection Equipment
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-1950-2050PM Fiber Optic Patch Cords
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-1950-2050PM Fiber Optic Patch Cords
Brand :
Liocrebif
Output format :
RS422
Application :
Related optical detection and applications. Fiber optic sensing systems. Medical detection equipment. Aviation and aerospace communications equipment
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-1950-2050PM Fiber Optic Patch Cords
Product Introduction

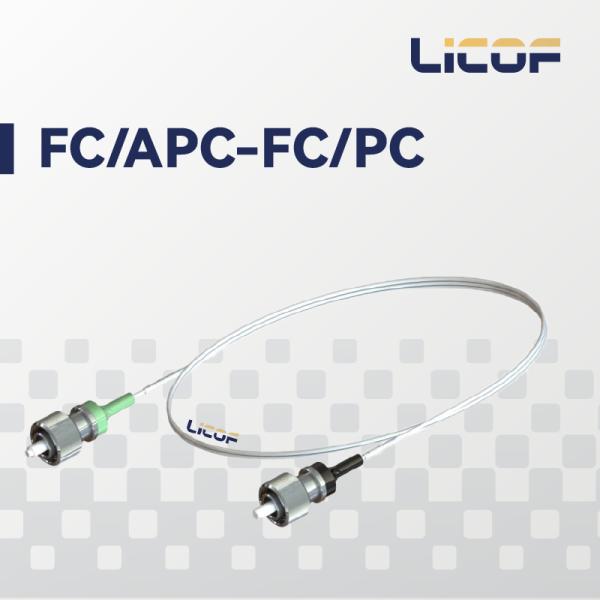

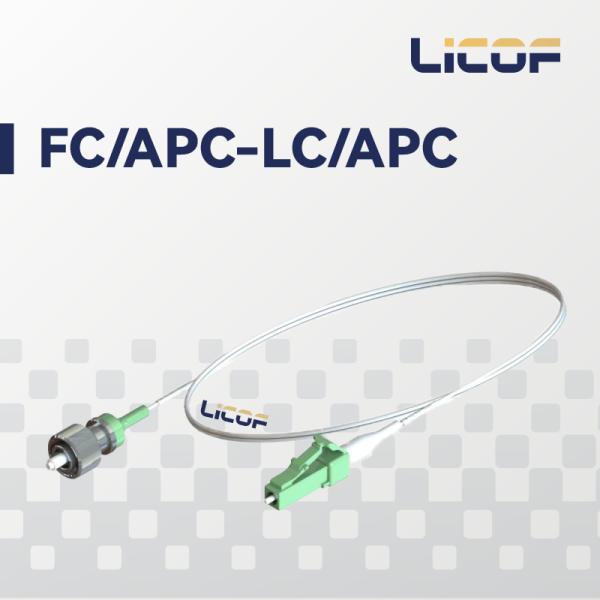

Polarization-maintaining fiber patch cords (tail fibers) are fiber optic connectors featuring standard fiber optic connectors at one or both ends. They are manufactured using polarization-maintaining fibers with precise stress-axis alignment to create fiber patch cords (tail fibers). Our polarization-maintaining fiber patch cords utilize imported polarization-maintaining fiber connectors, offering low loss, high extinction ratio, and low return loss. Optional AR coating on fiber end-faces is available upon request to optimize fiber-to-free-space coupling.

Table1 1950-2050PM Fiber Optoc Patch Cords Main Parameters

Category

Indicator Requirements

Unit

Center Wavelength

1950nm,2000nm,2050nm

nm

Connector Type

FCSCLC

/

Insertion Loss

≤0.6

dB

Return Loss

>50 (PC),>60 (APC)

dB

Extinction Ratio

≥23

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.2

dB

Mating Cycles

>1000

time

Fiber Type

PM 1950 fiber

/

Power Handling (CW)

300

mW

Tensile Load

≥5 (0.9 optical cable), ≥50 (3.0 optical cable)

N

Operating Temperature

-20 -+85

℃

Main Features

Polarization-maintaining fiber connectors cover wavelengths of 1950 nm, 2000 nm, and 2050 nm.

Connectors utilize imported connector components, featuring low loss and high extinction ratio.

Offers fast-axis, slow-axis, and custom-angle alignment to meet diverse customer requirements.

Connectors available in FC, SC, LC, and other models, with support for non-standard (steel-jacketed pins) polarization-maintaining end customization.

Fiber end-face finishes include PC, UPC, APC, or custom grinding angles.

Applications

Related optical detection and applications

Fiber optic sensing systems

Medical detection equipment

Aviation and aerospace communications equipment
