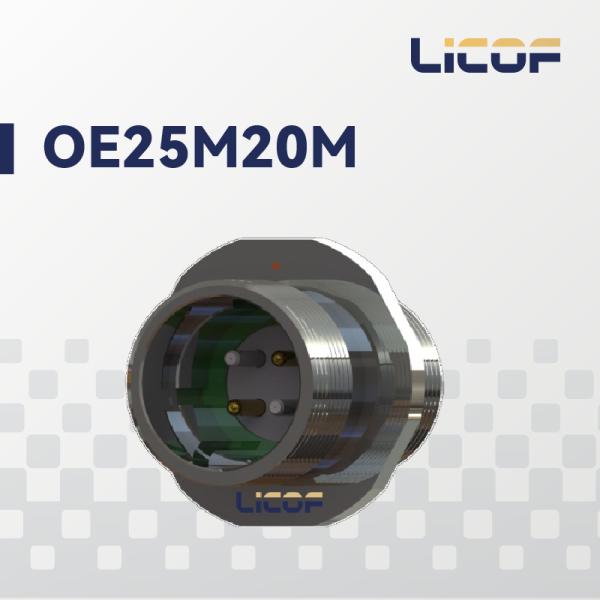

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance
OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance
OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance
OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-OE25M/05M
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-OE25M/05M
Brand :
Liocrebif
Output format :
RS422
Application :
Fiber-Optic Perimeter Sensing and Detection, Mobile Outdoor Base Station Equipment, Lake Monitoring and Underwater Surveillance, High-Speed Rail and Highway Signal Control, Coal Mines, Oil Wells, Natural Gas, etc., Geological Exploration Communications
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-OE25M/05M

Main Performance

Number of Contact Pins

2~7 cores

Contact Resistance

<20 mQ

Insulation Resistance

>2000MΩ (normal), >1000MΩ (environmental testing)

Dielectric Voltage

≤1500V DC, 1 min

Single-Core Current Rating

≤20A

Insertion Loss

1.2dB standard / 0.6dB low loss (1310nm)

1.0dB standard / 0.5dB low loss (1550nm)

Mechanical Life

>500 cycles

Factory Test Pressure

Standard lateral 5MPa, customizable up to 20MPa lateral pressure, customizable receptacle with longitudinal waterproofing

Operating Temperature

-45°C to 90°C

Connector housing

Standard stainless steel 316L, customizable titanium alloy TC4;

Optical contact

Zirconia ceramic pins

Electrical contact

Gold-plated brass

Sealing end cap

Stainless steel 316L

Cable

Polyurethane cable or rubber-sheathed cable

Connector Arrangement

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

Number of cores: 2 optical/electrical

Single-core current rating: 20A

Operating voltage: 1000V DC/AC rms

Dielectric voltage: 1500V DC

Insertion loss: ≤1.0dB@1550nm

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

Number of cores: 4 optical/electrical

Single-core current rating: 10A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1500V DC

Insertion loss: ≤1.0dB@1550nm

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

Number of cores: 7 optical/electrical

Single-core current rating: 5A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

Note: Customization is available to support optical, electrical, and RF transmission requirements with different core counts.

Dimensions Of The External Structure

Plug shape

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

OE25M/05MTEXFY Vertical Tail Attachment Configuration

Outlet shape

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

OE25M/05MI Outlet

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance

OE25M/05MF Outlet

Sealing Cap Profile

OE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance OE25M/05M Optical Fiber Connector Customized 2-7 Cores High PerformanceOE25M/05M Optical Fiber Connector Customized 2-7 Cores High Performance
