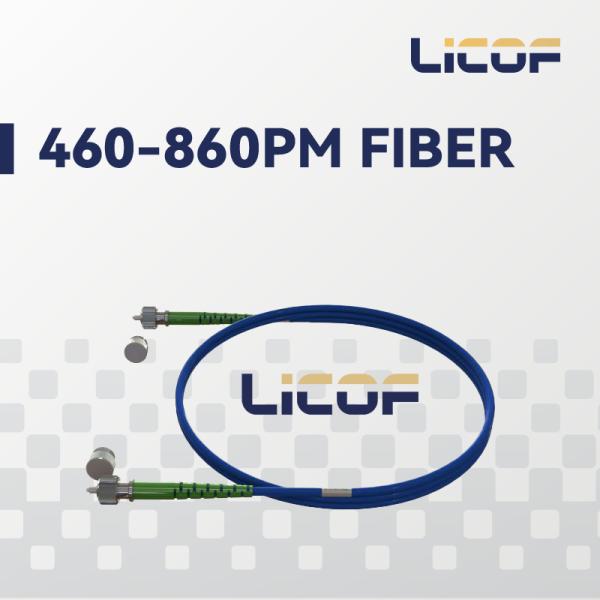

460-860PM Fiber Jumper Cables Fiber Optic Jumpers High Precision
460-860PM Fiber Jumper Cables Fiber Optic Jumpers High Precision
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-460-860PM Fiber Optic Patch Cords
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-460-860PM Fiber Optic Patch Cords
Brand :
Liocrebif
Output format :
RS422
Application :
Related optical detection and applications. Fiber optic sensing systems. Medical detection equipment. Aviation and aerospace communications equipment
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-460-860PM Fiber Optic Patch Cords
Product Introduction

Polarization-maintaining fiber optic patch cords (tail fibers) are a type of fiber optic connector featuring standard fiber optic connectors at one or both ends. They are manufactured using polarization-maintaining fiber and precise stress axis alignment to create fiber optic patch cords (tail fibers). The polarization-maintaining fiber optic patch cords produced by our company utilize imported polarization-maintaining fiber optic connectors, offering low loss, high extinction ratio, and return loss. We can also provide AR coating on the fiber end face according to customer requirements, which is used to optimize fiber-to-free-space coupling.

Table1 460-860PM Fiber Optoc Patch Cords Main Parameters

Category

Specification Requirements

Unit

Center wavelength

460 nm, 488 nm, 532 nm, 590 nm, 632 nm, 638 nm, 650 nm, 680 nm, or other

nm

Connector type

FC/SC/LC

/

Insertion loss

≤1.5 (Type 1.0)

dB

Return loss

>45 (PC), >50 (APC)

dB

Extinction ratio

≥20

dB

Interchangeability

≤0.3

dB

Repeatability

≤0.5

dB

Mating cycles

>1000

time

Fiber type

PM460 fiber or PM630 fiber

/

Power handling (CW)

50

mW

Tensile load

≥5 (0.9 cable), ≥50 (3.0 cable)

N

Operating temperature

-20 to +85

℃

Main Features

Ultraviolet wavelength polarization-maintaining fiber connectors (visible light polarization-maintaining fiber connectors) support multiple communication wavelengths, including 460 nm, 488 nm, 532 nm, 590 nm, 632 nm, 638 nm, 650 nm, and 680 nm.

The connectors use imported connector components, featuring low loss and high extinction ratio.

They offer fast-axis, slow-axis, and custom-angled alignment options to meet diverse customer requirements.

The connectors are available in various models, including FC, SC, and LC, and support custom polarization-maintaining ends (steel-jacketed pins).

Fiber end faces can be provided with PC, UPC, APC, or custom-ground angles.

Applications

Related optical detection and applications

Fiber optic sensing systems

Medical detection equipment

Aviation and aerospace communications equipment
