J599 A8 Fiber Cable Connectors Vibration Resistant Optical Cable Connector
J599 A8 Fiber Cable Connectors Vibration Resistant Optical Cable Connector
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-J599 A8
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-J599 A8
Brand :
Liocrebif
Output format :
RS422
Application :
Aviation, Electronics, Weapons, Ships, Electricity, Fiber optic communication systems for harsh outdoor environments
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-J599 A8
Product Introduction

The J599 A8 series fiber optic connectors feature a three-thread quick-connect design with five-key positioning, offering blind-mate and anti-misinsertion functionality, as well as vibration resistance. The connectors are constructed from 316L stainless steel or aluminum alloy, ensuring low insertion loss and high reliability. The fiber optic components are removable, making on-site installation convenient. The product features waterproof, dustproof, and corrosion-resistant properties. Currently available specifications include: 2-core, 4-core, 6-core, and 8-core. Customization is also available upon customer request.

Table1 J599 A8 Main Parameters

Insertion loss

≤0.6 dB

Operating temperature

－55°C to +85°C

Vibration

10 Hz to 2000 Hz, power spectral density 0.4 G²/Hz, root mean square acceleration value 23.1

Shock

2940 m/s², duration 3 ms, velocity change rate 2.96 m/s

Mechanical life

500 times

Tensile strength

≥720 N (compatible with optical cables 5.0 mm or larger); ≥68 N (2 mm contact jumper)

Air tightness

(Suitable for airtight connector sockets) Gas leakage ≤1×10⁻⁹ Pa·m³/s at an internal/external pressure difference of 1 atmosphere

Salt spray performance

≥500 hours (stainless steel material), ≥200 hours (aluminum alloy with cadmium plating), ≥48 hours (aluminum alloy with nickel plating)

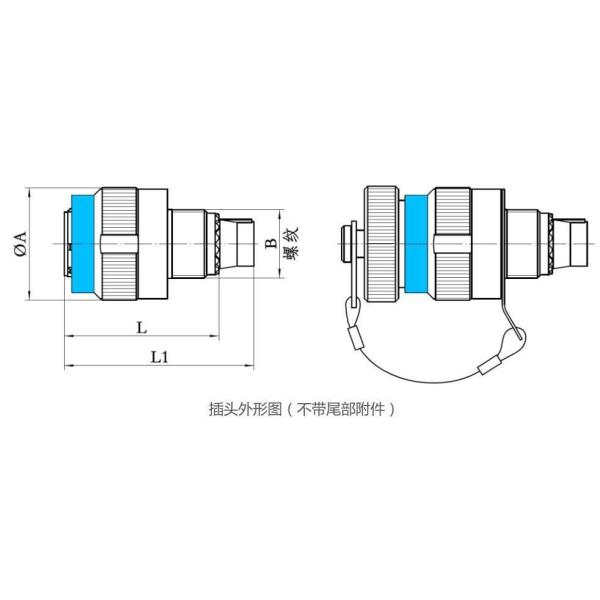

Table 2 Dimensions Of The External Structure

Shell number

Shell code

A Max

Thread

L Max

L1 Max

11

B

25.00

M15×1-6g

32

42

13

C

29.40

M18x1-6g

32

42

15

D

32.40

M22x1-6g

32

42

17

E

35.60

M25×1-6g

32

42

19

F

38.50

M28x1-6g

32

42

21

G

41.70

M31x1-6g

32

42

23

H

44.90

M34x1-6g

32

42

25

J

48.00

M37x1-6g

32

42

Main Features

Interface dimensions and performance comply with GJB599A (MIL-DTL-38999) III and ARINC801 standards

Suitable for aviation, electronics, and naval systems, used for multi-channel optical communication

The housing can be made of different materials and coatings to meet various environmental requirements

Five-key positioning with blind insertion and anti-misinsertion functions

Three-threaded quick-connect design with anti-loosening mechanism

Ceramic pins and sleeves ensure precise contact alignment

Multiple tail configuration options available

Adapter connectors (optional with airtight seals) available to eliminate cable constraints

Applications

Aviation

Electronics

Weapons

Ships

Electricity

Fiber optic communication systems for harsh outdoor environments
