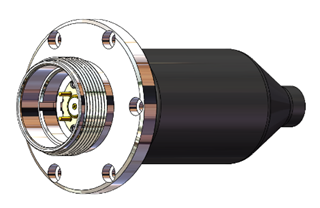

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-OE60M/30M
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-OE60M/30M
Brand :
Liocrebif
Output format :
RS422
Application :
Fiber-Optic Perimeter Sensing and Detection, Mobile Outdoor Base Station Equipment, Lake Monitoring and Underwater Surveillance, High-Speed Rail and Highway Signal Control, Coal Mines, Oil Wells, Natural Gas, etc., Geological Exploration Communications
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-OE60M/30M

Main Performance

Contacts per Core

7~11 cores

Contact Resistance

<10 mΩ

Insulation Resistance

Normal state >2000MΩ, environmental testing >1000MΩ

Dielectric Voltage

≤2000V/DC, 1 min

Single-Core Current Rating

≤40A

Insertion Loss

1.2dB standard / 0.3dB low loss (1310nm)

1.0dB standard / 0.25dB low loss (1550nm)

Mechanical Life

>500 cycles (sealing ring 100 cycles)

Factory Test Pressure

Standard lateral 30MPa, customizable up to 60MPa lateral pressure, receptacle with longitudinal waterproofing

Operating Temperature

-45℃~90℃

Connector housing

Standard stainless steel 316L, customizable titanium alloy TC4;

Optical contact

Zirconia ceramic pins

Electrical contact

Gold-plated brass

Sealing end cap

Stainless steel 316L

Cable

Polyurethane cable or rubber-sheathed cable

Connector Arrangement

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

Number of cores: 2 optical, 5 electrical + 1 RF

Single-core current rating: 20A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

Number of cores: 5 optical, 4 electrical

Single-core current rating: 20A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

Number of cores: 8 optical, 3 electrical

Single-core current rating: 20A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

Note: Customization is available to support optical, electrical, and RF transmission requirements with different core counts.

Dimensions Of The External Structure

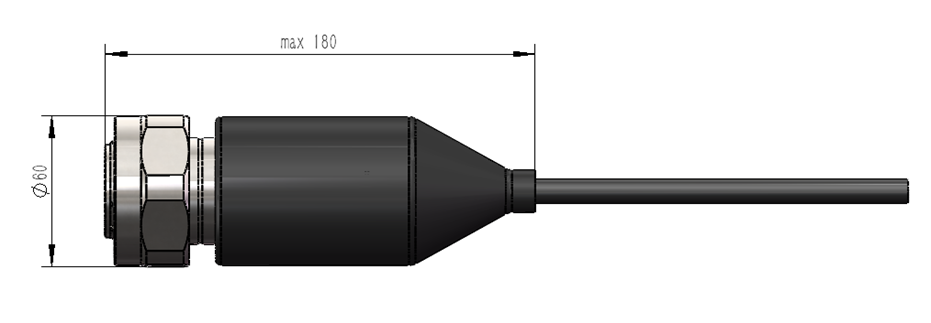

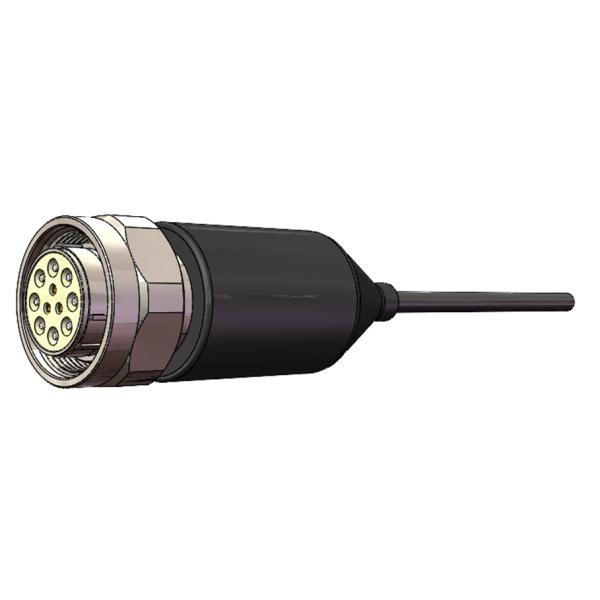

Plug shape

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

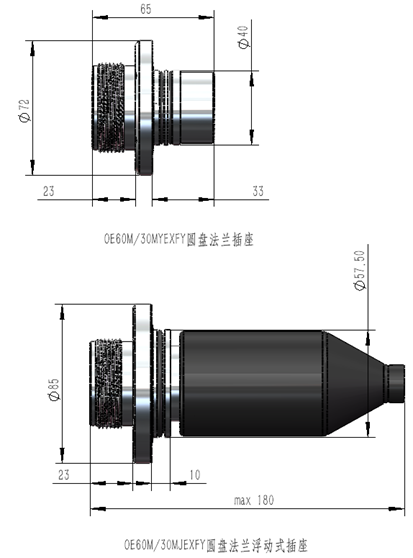

Outlet shape

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

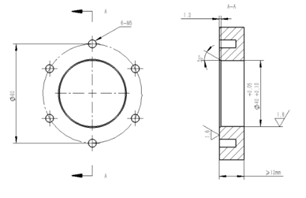

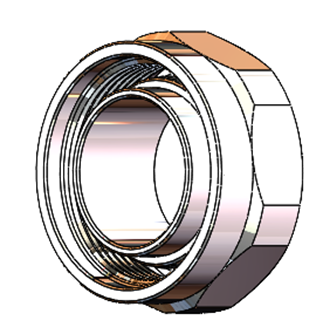

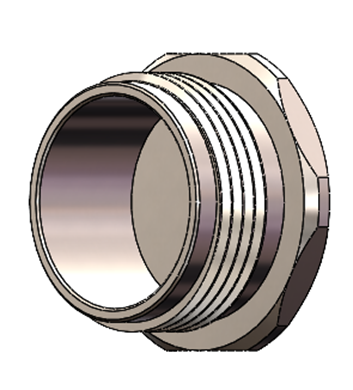

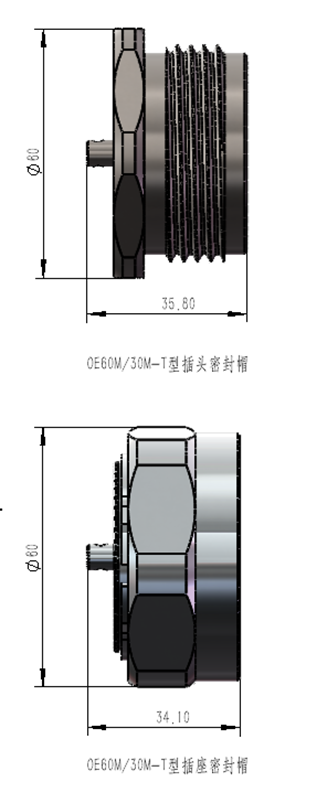

Sealing Cap Profile

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application

OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application OE60M/30M Optical Electrical Connector Underwater 7-11 cores For Fiber Application
