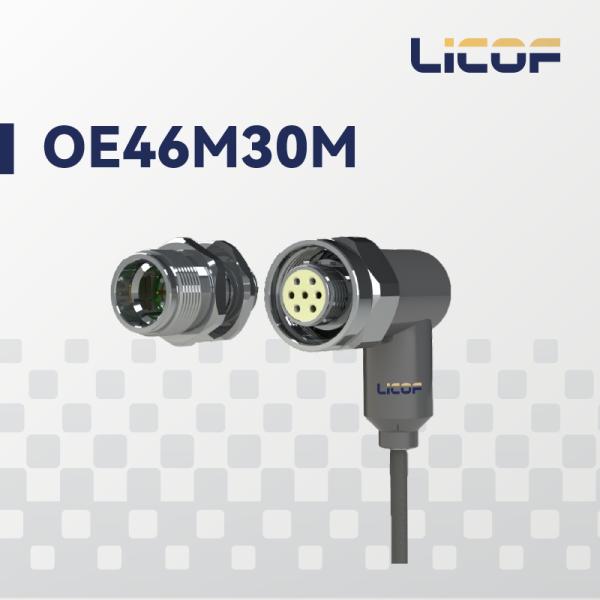

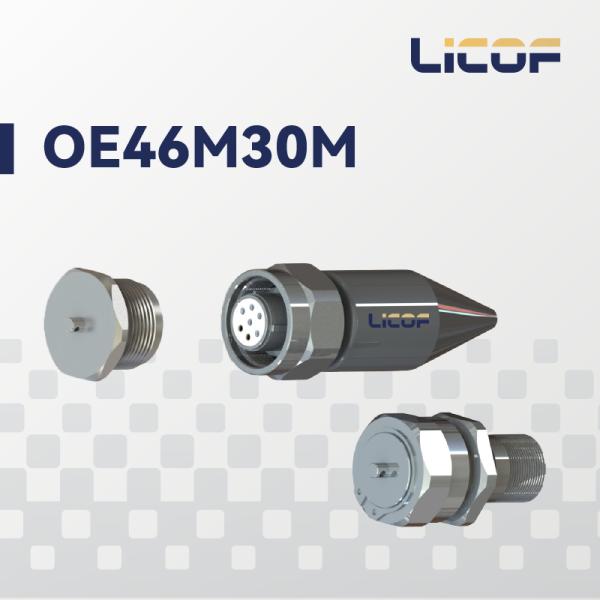

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-OE46M/30M
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-OE46M/30M
Brand :
Liocrebif
Output format :
RS422
Application :
Fiber-Optic Perimeter Sensing and Detection, Mobile Outdoor Base Station Equipment, Lake Monitoring and Underwater Surveillance, High-Speed Rail and Highway Signal Control, Coal Mines, Oil Wells, Natural Gas, etc., Geological Exploration Communications
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-OE46M/30M

Main Performance

Number of Contact Pins

2~32 cores

Contact Resistance

<10 mQ

Insulation Resistance

>2000MΩ at normal conditions, >1000MΩ after environmental testing

Dielectric Voltage

≤3000V DC, 1 min

Single-Core Current Rating

≤40A

Insertion Loss

1.2dB standard / 0.6dB low loss (1310nm)

1.0dB standard / 0.5dB low loss (1550nm)

Mechanical Life

>1000 cycles

Factory Test Pressure

Standard lateral 30MPa, customizable up to 60MPa lateral pressure, customizable with longitudinal waterproofing for receptacles

Operating Temperature

-45℃~90℃

Connector housing

Standard stainless steel 316L, customizable titanium alloy TC4

Optical contact

Zirconia ceramic pins

Electrical contact

Gold-plated brass

Sealing end cap

Stainless steel 316L

Cable

Polyurethane cable or rubber-sheathed cable

Connector Arrangement

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 2 optical/electrical

Single-core current rating: 65A

Operating voltage: 1000V DC/AC rms

Dielectric voltage: 2500V DC

Insertion loss: ≤1.0dB@1550nm


OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 4 optical/electrical

Single-core current rating: 40A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 2500V DC

Insertion loss: ≤1.0dB@1550nm

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 7 optical/electrical

Single-core current rating: 20A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm


OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 12 optical/electrical

Single-core current rating: 13A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 16 optical/electrical

Single-core current rating: 13A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 32

Single-core current rating: 5A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC


OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Number of cores: 4 optical/electrical + 1 RF

Single-core current rating: 20A

Operating voltage: 500V DC/AC rms

Dielectric voltage: 1000V DC

Insertion loss: ≤1.0dB@1550nm

Note: Customization is available to support optical, electrical, and RF transmission requirements with different core counts.

Dimensions Of The External Structure

Plug shape

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

OE46M/30MTEXFY Vertical Tail Attachment Configuration

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

OE46MT/30MTEXFYRound Conventional Tail Attachment Form

Outlet shape

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing

Sealing Cap Profile

OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing OE46M/30M Underwater Optical Electrical Connector 2-32 Cores Standard With 316L Connector Housing
