High Stability Fiber Optic Connectors SC Fiber Optic Connector For Industrial
High Stability Fiber Optic Connectors SC Fiber Optic Connector For Industrial
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-ST
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-ST
Brand :
Liocrebif
Output format :
RS422
Application :
Telecommunications networks, Cable television, Gigabit Ethernet, Active or passive equipment terminals, Industrial, medical, and military applications
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-ST
Product Introduction

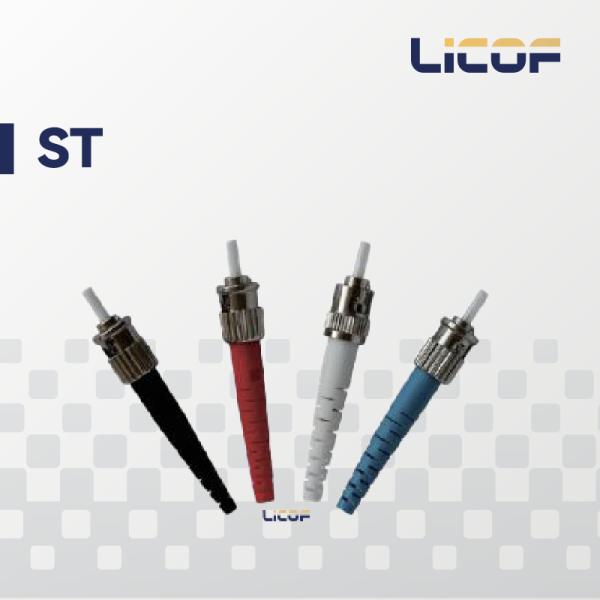

ST in ST fiber optic connectors stands for “Stab & Twist.” The housing is circular, and the locking mechanism is a snap-in type, i.e., a snap-in circular interface. The ST connector features a bayonet-style locking frame and a 2.5 mm long cylindrical ceramic (commonly) or polymer ferrule to hold the entire fiber. Installation resembles a snap-fit light bulb: insert and rotate halfway to lock into the bayonet. For 10Base-F connections, the connector is typically of the ST type.

Table1 SC Main Parameters

Category

Specification Requirements

End-Face Requirements

400X Compliant with IEC 61300-3-35

Insertion Loss

≤0.3dB

Return Loss

≥45dB (SM, PC); ≥60dB (SM, APC)

Repeatability

≤0.2dB

Ferrule Type

PC, UPC, APC with optional floating end

Covering

0.9Hytrel, 2.0/3.0mm PVC, armored empty conduit, etc. available

Operating Temperature

-40°C to +85°C

Compliance Standard

YD_T 987

Main Features

High stability and reliability.

Low insertion loss, high return loss.

Excellent polishing standards.

End-face geometry parameters comply with GR-326Core.

Available in single-core or dual-core cables with Ф0.9, Ф2.0, or Ф3.0 diameters.

Applications

Telecommunications networks

Cable television

Gigabit Ethernet

Active or passive equipment terminals

Industrial, medical, and military applications

Dimensions Of The External Structure
