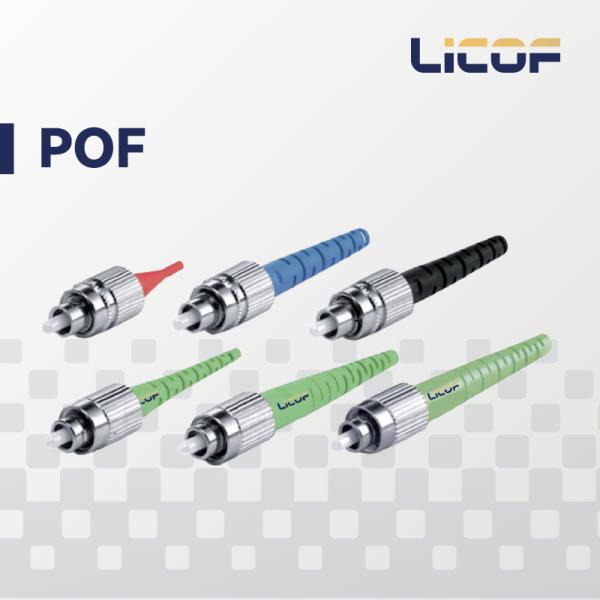

High Reliability Fc Fiber Connector Single Core For High Vibration Environments
High Reliability Fc Fiber Connector Single Core For High Vibration Environments
Specifications
Brand Name :
Liocrebif
Model Number :
LKF-FC
Certification :
GJB 9001C-2017
Place of Origin :
China
MOQ :
1
Price :
5000-25000CHY
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
2-4 weeks
Packaging Details :
Wooden box/Cardboard box/Container
Color&Classification :
LKF-FC
Brand :
Liocrebif
Output format :
RS422
Application :
Telecommunications networks, Cable television, Gigabit Ethernet, Active or passive equipment terminals, Industrial, medical, and military applications
Original Place :
China
Dimension :
Determined by model
Description
Essential details
MOQ:1
Specification Number:LKF-FC
Product Introduction

The FC fiber optic connector is a single-core connector commonly used in fiber optic communications. Its external reinforcement employs a metal sleeve with a threaded locking mechanism, making it suitable for high-vibration environments. The fiber interface uses a ceramic ferrule with a spherical (UPC) or angled (APC) end-face. FC fiber connectors are currently primarily used in data communications, telecommunications, measurement equipment, and single-mode lasers.

Table1 FC Main Parameters

Category

Specification Requirements

End-Face Requirements

400X Compliant with IEC 61300-3-35

Insertion Loss

≤0.3dB

Return Loss

≥45dB (SM, PC); ≥60dB (SM, APC)

Repeatability

≤0.2dB

Ferrule Type

PC, UPC, APC with optional floating end

Covering

0.9Hytrel, 2.0/3.0mm PVC, armored empty conduit, etc. available

Operating Temperature

-40°C to +85°C

Compliance Standard

YD_T 1272.4-2018

Main Features

High stability and reliability.

Low insertion loss, high return loss.

Excellent polishing standards.

End-face geometry parameters comply with GR-326Core.

Available in single-core or dual-core cables with Ф0.9, Ф2.0, or Ф3.0 diameters.

Applications

Telecommunications networks

Cable television

Gigabit Ethernet

Active or passive equipment terminals

Industrial, medical, and military applications

Dimensions Of The External Structure

High Reliability Fc Fiber Connector Single Core For High Vibration Environments
