0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
Specifications
Brand Name :
HuaXin
Model Number :
ESHX072WCM06
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$98.2~97.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR oled display
Size :
0.72 inch
Name :
Micro oled display
Resolution :
1920x1200
interface :
61pins MIPI
View angle :
all
Brightness :
2000 C/D
testing board :
HDMI or type C optional
Description
VR Display 0.72 Inch Micro OLED Display

High-resolution 1920×1200 micro OLED display with 61pins MIPI interface and 2000C/D brightness, designed for VR/AR/MR applications.

Product Specifications
Display Technology VR OLED Display
Size 0.72 inch
Resolution 1920×1200
Interface 61pins MIPI
View Angle All
Brightness 2000 C/D
Testing Board HDMI or Type C optional
Technical Parameters
Part No. ESHX072WCM06
Display Mode 0.72" Micro OLED
Outline Size (mm) 19.97×15.5×1.78
AA Size (mm) 15.552×9.72
Display Dots 1920×1200
Contrast Ratio 500,000:1

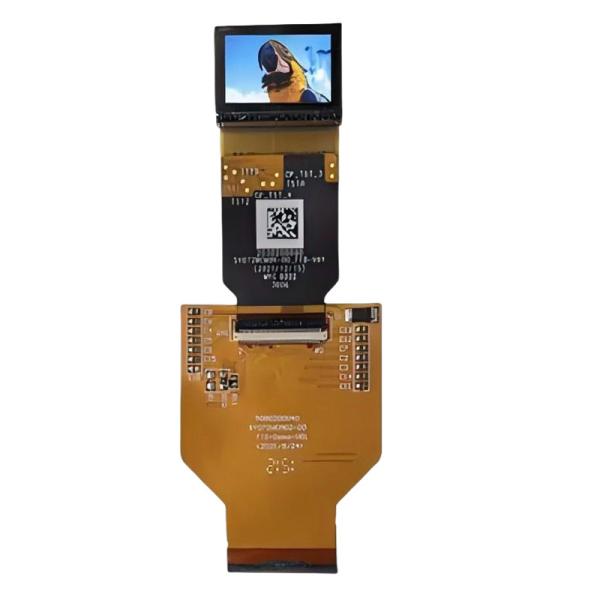

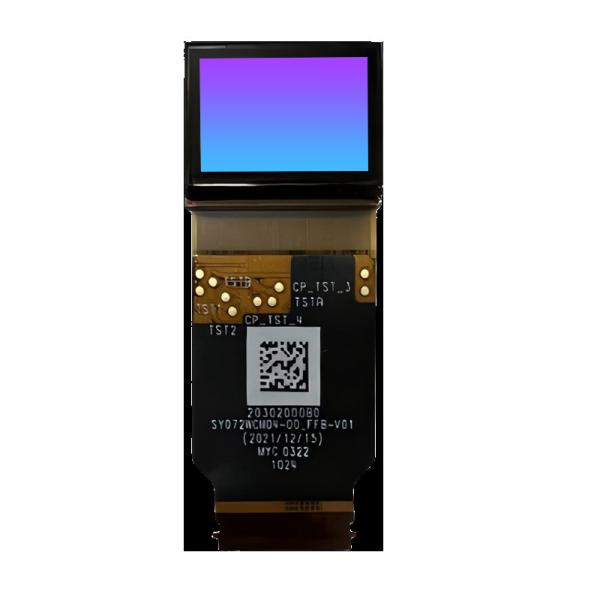

Product Images
0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display 0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display 0.72 Inch Micro OLED Display 1920x1200 61pins MIPI Interface 2000C/D VR Display
Micro OLED Technology Overview
Key Advantages
  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and Compact Design
  • Superior Image Quality
  • Lower Power Consumption
  • Wide Operating Temperature Range
  • High Brightness & Efficiency
  • Manufacturing & Scalability Benefits
Considerations
  • Higher Production Costs & Limited Supply
  • Limited Brightness (Compared to Micro LED)
  • Restricted View Angles
  • Shorter Lifespan (Compared to Micro LED)
  • Primarily Suitable for Small Displays
  • Potential Motion Blur in VR Applications
  • Competition from Micro LED Technology
Huaxin Technology Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities

Certifications: ISO14001, ISO9001/IATF16949, SGS of LCD module

Company Profile: Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED technologies with 500+ employees and 10% R&D staff.

Production Capacity
Product Type 2021 2022 Goal 2023 Challenge 2024 Challenge 2025 Challenge
LCD (Thousands/Day) 4.5 9 9 9 9
LCM (Thousands/Day) 70 150 300 450 450
Backlight (Thousands/Day) 100 200 300 500 500
OLED (Thousands/Day) 10 20 30 40 50
Applications
  • VR/AR/MR Headsets
  • Military & Aerospace Systems
  • Medical Devices & Microdisplays
  • Camera & Electronic Viewfinders
  • Automotive Displays
  • Wearable & Smart Glasses
Technology Comparison
Feature Micro OLED Traditional OLED Micro LED
Substrate Silicon Wafer Glass/Plastic Sapphire/Glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate Moderate Very Long
Cost High Moderate Very High
Future Outlook

Micro OLED technology is expected to dominate AR/VR and wearable displays due to its unmatched pixel density. Major companies including Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
