1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
Specifications
Brand Name :
HuaXin
Model Number :
HX049WDM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$53~$29
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
0.49 inch
Name :
Micro oled display
Resolution :
1920*1080
interface :
40 PINS MIPI
View angle :
all
Brightness :
1800 C/D
testing board :
HDMI or type C optional
Description
0.49 inch Micro OLED Display with Board - 1920×1080 Resolution, 40 PINS MIPI Interface, 1800C/D Brightness
Product Specifications
Attribute Value
Display Technology AR display
Size 0.49 inch
Resolution 1920×1080
Interface 40 PINS MIPI
View Angle All directions
Brightness 1800 C/D

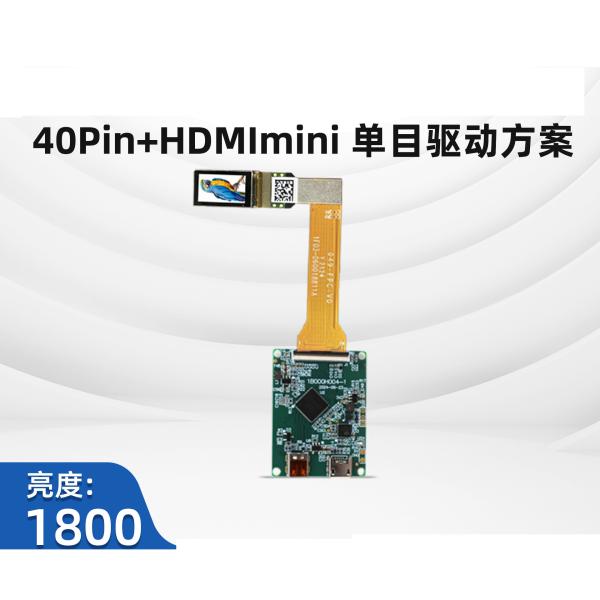

Testing Board HDMI or Type C optional
Technical Parameters
Part No. HX049WDM01
Display Mode 0.49 inch micro OLED with board
Outline Size (mm) 15.68×9.09×1.5
AA Size (mm) 10.783×6.065
Display Dots 1920×1080
Product Images
1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight 1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight 1920*1080 Small Oled Display Module 0.49 Inch 40 PINS MIPI 1800C/D Lightweight
Drawing & Pin Definition
Micro OLED Technology Overview
Key Advantages
  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and Compact Design
  • Superior Image Quality
  • Lower Power Consumption
  • Wide Operating Temperature Range
  • High Brightness & Efficiency
  • Manufacturing & Scalability Benefits
Limitations
  • Higher Production Costs & Limited Supply
  • Limited Brightness (Compared to Micro LED)
  • Restricted View Angles
  • Shorter Lifespan
  • Small Display Applications Only
  • Potential Motion Blur in VR Applications
  • Competition from Micro LED Technology
Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years of LCD industry expertise
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS Certified LCD Modules
Company Profile
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Established: 2009
  • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED
  • Register Capital: 20 Million
  • Employees: 500+
  • R&D Team: 10% of workforce
  • QC Team: 15% of workforce
Production Capacity
Annual Production Capacity 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Product Applications
  • VR/AR/MR Headsets
  • Military & Aerospace Systems
  • Medical Devices & Microdisplays
  • Camera & Electronic Viewfinders
  • Automotive Displays
  • Wearable & Smart Glasses
Technology Comparison
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate Moderate Very Long
Cost High Moderate Very High
Future Outlook

Micro OLED technology is expected to dominate AR/VR and wearable displays due to its unmatched pixel density. Major companies including Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
