Specifications
Brand Name :
HuaXin
Model Number :
ESHX039FHP-NH4
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$58~$56
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR oled display
Size :
0.39 inch
Name :
micro oled display
Resolution :
1920x1080
interface :
MIPI+I2C
View angle :
all
Brightness :
300 C/D
Description
0.39 Inch Small OLED Display Module 1920x1080 Resolution Small OLED Displays MIPI+I2C Interface
Product Specifications
Attribute Value
Display Technology VR OLED display
Size 0.39 inch
Name Micro OLED display
Resolution 1920x1080
Interface MIPI+I2C
View Angle All
Brightness 300 C/D
Technical Parameters
Part No. ESHX039FHP-NH4
Display Mode 0.39" Micro OLED display
Outline Size (mm) 12.06×10.76×1.34
AA Size (mm) 8.7495×4.968
Display Dots 1920×1080
View Angle All
Brightness 300 C/D
Interface MIPI+I2C

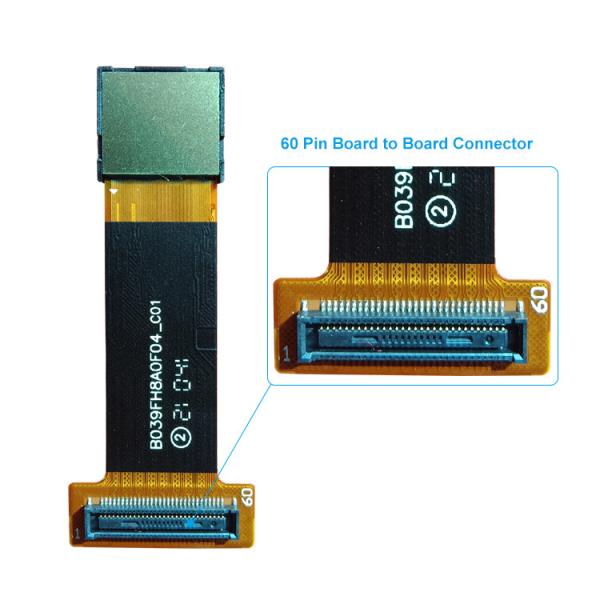

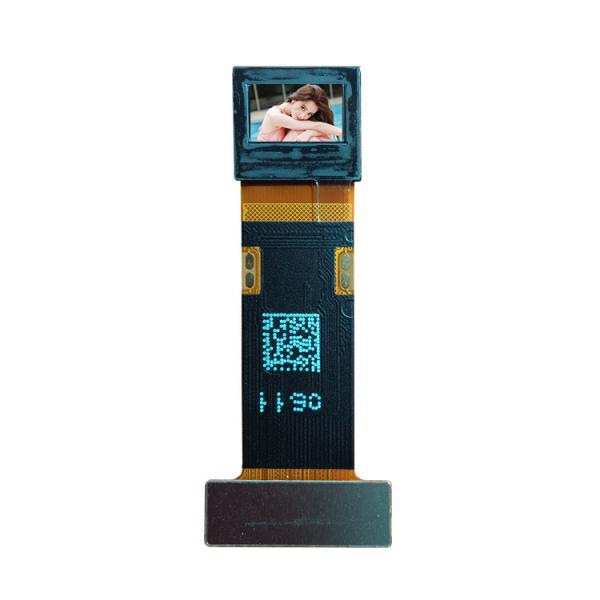

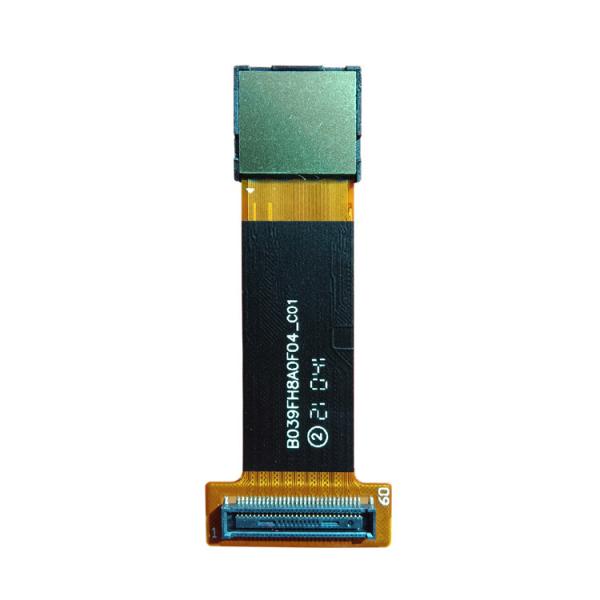

Product Images
0.39 Inch Small Oled Display Module 1920x1080 Small Oled Displays MIPI+I2C Interface
0.39 Inch Small Oled Display Module 1920x1080 Small Oled Displays MIPI+I2C Interface
0.39 Inch Small Oled Display Module 1920x1080 Small Oled Displays MIPI+I2C Interface
0.39 Inch Small Oled Display Module 1920x1080 Small Oled Displays MIPI+I2C Interface
Micro OLED Product Knowledge

Key Advantages:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to Micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from Micro LED
Huaxin Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our Certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Company Profile:

  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
  • Register capital: Twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • VR/AR/MR headsets
  • Military / aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED Micro LED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very High

Future of Micro OLED: Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
