0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
Specifications
Brand Name :
HuaXin
Model Number :
HXFHD071151A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$70~$68.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR oled display
Size :
0.71 inch
Name :
micro lcd screen
Resolution :
1920x1080
interface :
MIPI / MIPI+IIC
View angle :
all
Brightness :
300cd/m2
Description
0.71 Inch Micro OLED Display 1920x1080 Resolution MIPI+I2C Interface 300C/D All View Angle
Product Attributes
Attribute Value
Display Technology VR OLED display
Size 0.71 inch
Name Micro LCD screen
Resolution 1920×1080
Interface MIPI / MIPI+IIC
View angle All
Brightness 300cd/m²
Product Description

AR display 0.71 inch micro OLED display with 1920×1080 resolution, MIPI+I2C interface, 300C/D all view angle, applied for MR/VR/AR headsets.

Technical Parameters
Parameter Value
Part NO. HXFHD071151A
Display Technology AMOLED
Diagonal Screen Size 0.71 inch
Resolution 1920×1080
Viewing Angle All
Operation Temperature -40 ~ +70 ℃
Panel Size (mm) 22.29×12.84×1.34
Active Area (mm) 15.8139×9.0087
Brightness (cd/m²) 300cd/m²
Interface MIPI / MIPI+IIC
Pin quantity 48 pins
Contrast Ratio 10000:1
Remark Sunlight readable

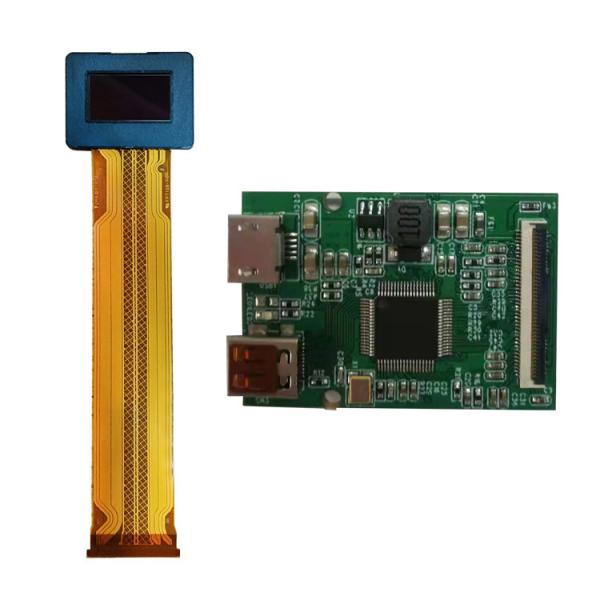

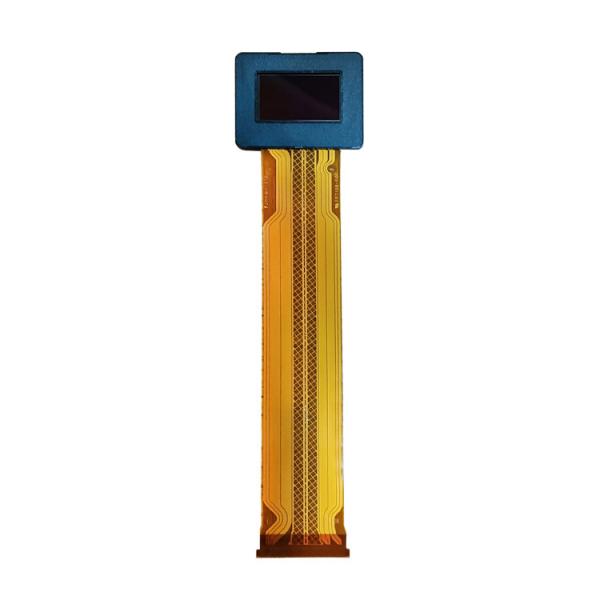

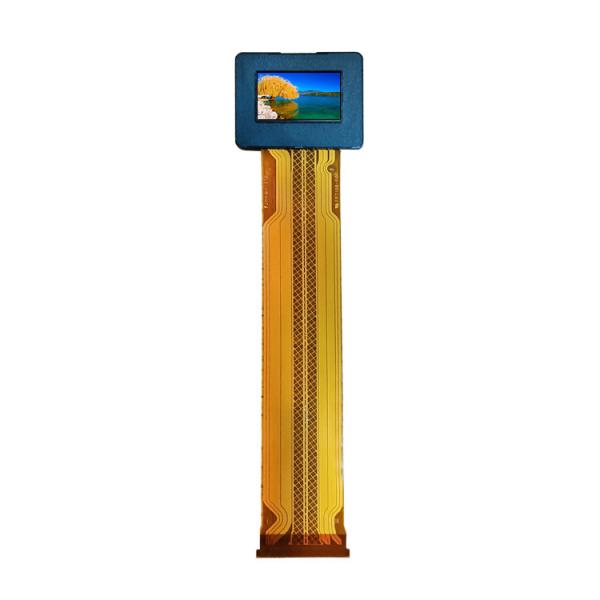

Product Images
0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle 0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle 0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle 0.71 Inch Micro OLED Display 1920x1080 MIPI+I2C Interface 300C/D All View Angle
Drawing & Pin Definition
Micro OLED Product Knowledge

The key advantages of Micro OLED (Silicon-based OLED) is an advanced display technology:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Micro OLED Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

  • Hubei.Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
  • Register capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high

Challenges:

  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)

Future of Micro OLED:

Expected to dominate AR/VR and wearable displays due to unmatched pixel density.

Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
