0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
Specifications
Brand Name :
HuaXin
Model Number :
HX060LDM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$101~$99.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR display
Size :
0.6 inch
Name :
Micro oled display
Resolution :
1920*1080
interface :
50pins MIPI
View angle :
all
Brightness :
6000 C/D
Description
0.6 Inch Micro OLED Display - 1920×1080 Resolution - 50pins MIPI Interface - 6000C/D Brightness
Product Specifications
Attribute Value
Display Technology VR Display
Size 0.6 inch
Name Micro OLED Display
Resolution 1920×1080
Interface 50pins MIPI
View Angle All
Brightness 6000 C/D
Technical Parameters
Part No. HX060LDM01
Display Mode 0.6" Micro OLED
Outline Size (mm) 18.57×11.38×1.78
AA Size (mm) 13.22×7.43
Display Dots 1920×1080
View Angle All
Brightness 6000 C/D
Interface 50pins MIPI
Contrast Ratio 200,000:1

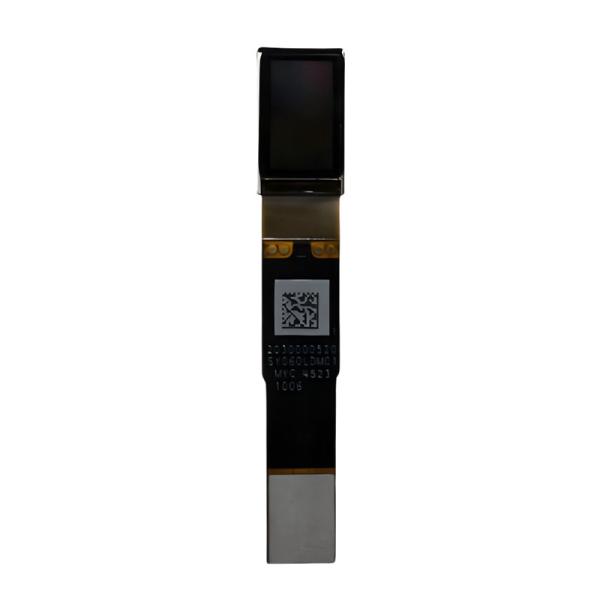

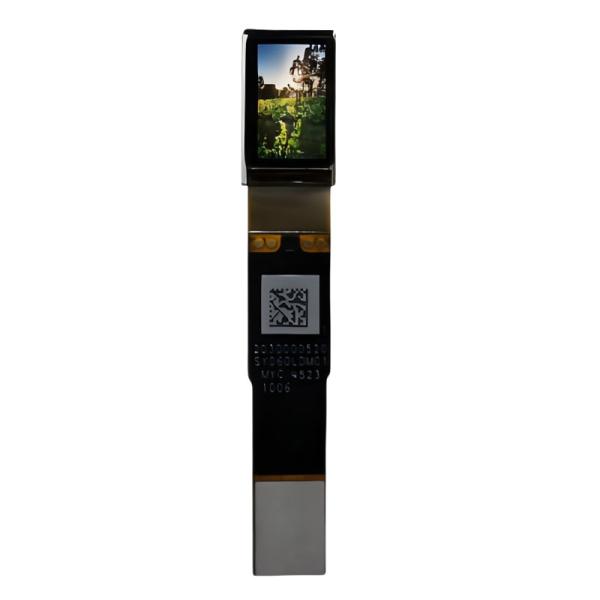

Product Images
0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D 0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D 0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D 0.6 Inch 4k Micro Oled Screen 1920*1080 50pins MIPI Interface 6000C/D
Micro OLED Technology Overview
Key Advantages
  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and Compact Design
  • Superior Image Quality
  • Lower Power Consumption
  • Wide Operating Temperature Range
  • High Brightness & Efficiency
  • Manufacturing & Scalability Benefits
Limitations
  • Higher Production Costs & Limited Supply
  • Limited Brightness (Compared to Micro LED)
  • Limited View Angles
  • Shorter Lifespan (Compared to Micro LED)
  • Small Display Applications Only
  • Motion Blur & Persistence Issues in VR
  • Competition from Micro LED Technology
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Fully automated processes for efficiency
  • Experienced engineering team (20+ years in LCD field)
  • Custom product design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile

Huaxin Technology (Enshi) Co., LTD

  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD Series: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM Series: COB, TBA, COG, TP, OLED and other series
  • Registered Capital: 20 million
  • Employees: 500+
  • R&D Staff: 10%
  • QC Staff: 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • VR/AR/MR Headsets
  • Military/Aerospace Equipment
  • Medical Devices and Microdisplays
  • Camera & Electronic Viewfinders
  • Automotive Displays
  • Wearable & Smart Glasses
Technology Comparison
Feature Micro OLED Traditional OLED Micro LED
Substrate Silicon Wafer Glass/Plastic Sapphire/Glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very High
Future of Micro OLED

Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Major companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
