0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
Specifications
Brand Name :
HuaXin
Model Number :
HX049LDM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$63~$49
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
0.49 inch
Name :
Micro oled display
Resolution :
1920*1080
interface :
40 PINS MIPI
View angle :
all
Brightness :
3000 C/D
testing board :
HDMI or type C optional
Description
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Resolution Full HD For Telescopes
Product Attributes
Attribute Value
Display Technology AR display
Size 0.49 inch
Name Micro oled display
Resolution 1920*1080
Interface 40 PINS MIPI
View angle all
Brightness 3000 C/D
Testing board HDMI or type C optional
Product Description

0.49-inch Ultra Miniature OLED Display, 3000cd/m² High Brightness, 1920*1080 Full HD, Suitable for Telescopes / Medical AR Glasses, Mini Display Module

Technical Parameter
Part No: HX049LDM01
Display Mode 0.49 inch micro OLED with board
Outline size(mm) 15.68*9.09*1.5
AA size(mm) 10.783* 6.065
Display dots 1920*1080
View Angle ALL
Brightness 3000C/D
Interface 40 PINS MIPI
Testing board HDMI or type C optional

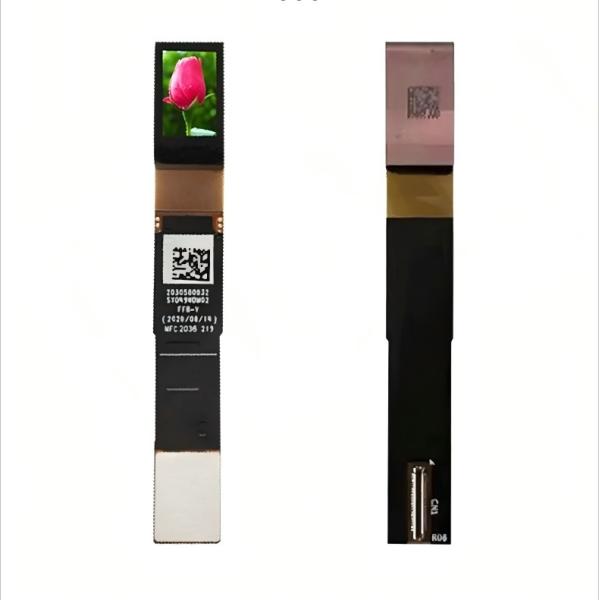

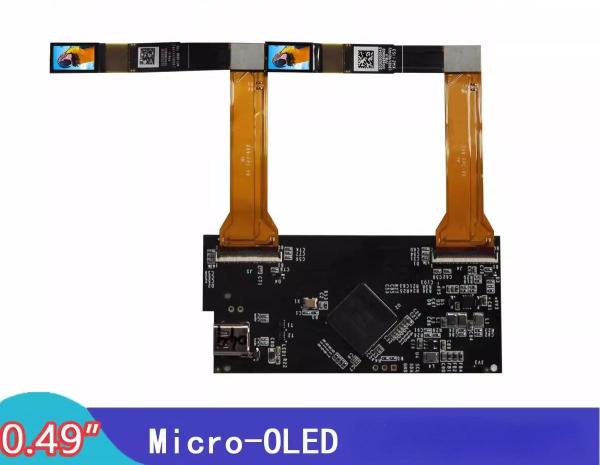

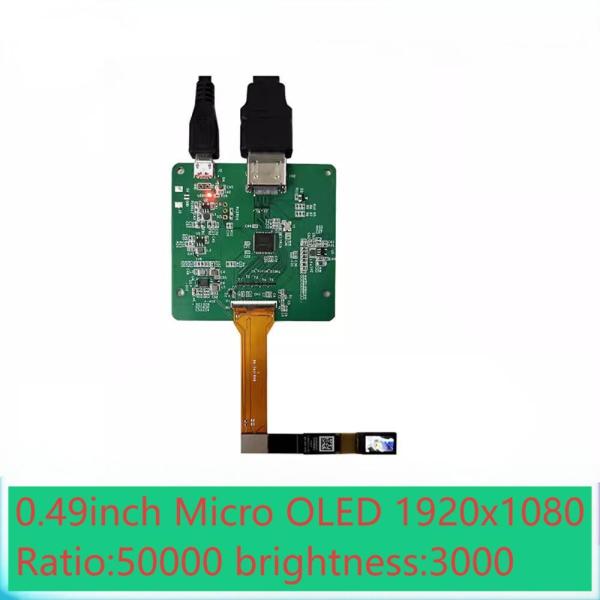

Product Images
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes 0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes 0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes 0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes 0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
Drawing & Pin Definition
0.49 Inch Micro OLED Display 3000cd/M² Brightness 1920*1080 Full HD For Telescopes
Micro OLED Product Knowledge

The key advantages of Micro OLED (Silicon-based OLED) is an advanced display technology:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Micro OLED Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Our Certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

  • Hubei.Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
  • Register capital: twenty million
  • Current staff: 500+
  • RD accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • VR/AR/MR headsets
  • Military / aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high

Challenges:

Limited lifespan (blue OLEDs degrade faster).
Higher manufacturing cost due to silicon wafer integration.
Currently small sizes (not suitable for TVs).

Future of Micro OLED: Expected to dominate AR/VR and wearable displays due to unmatched pixel density.

Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this tech.
