HX135KDP-NM2 is a 1.35 inch diagonal, 4K resolution (3552RGB×3840), active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon backplane. The pixel circuits and GIP are integrated on the silicon backplane, and the DDIC is bonded on the backplane.

A: Technical Parameter

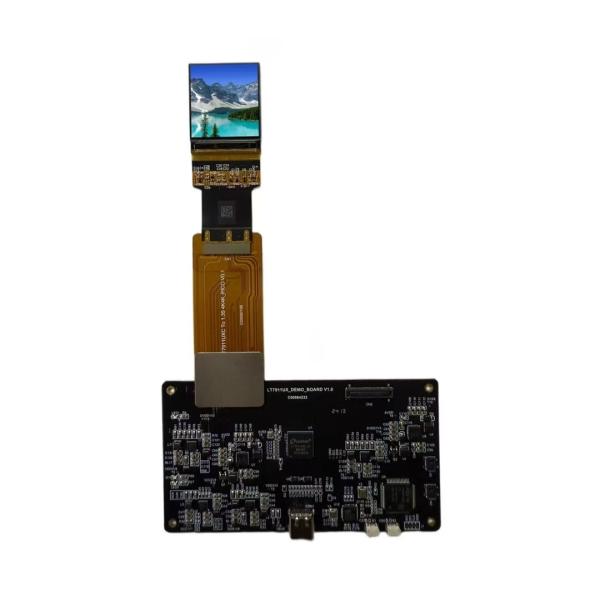

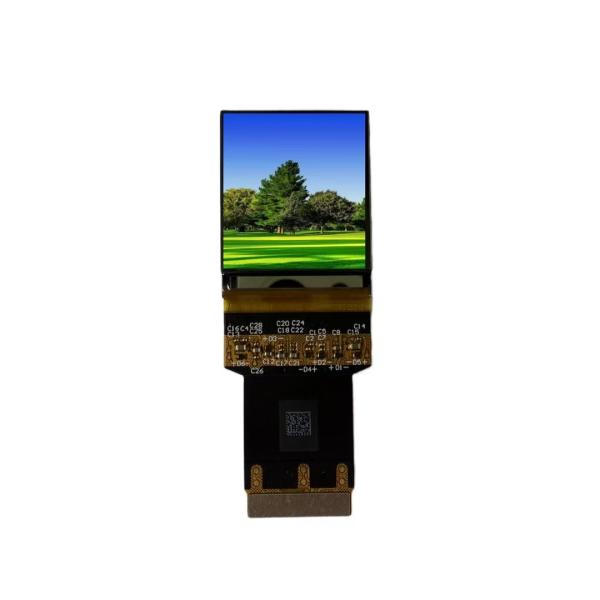

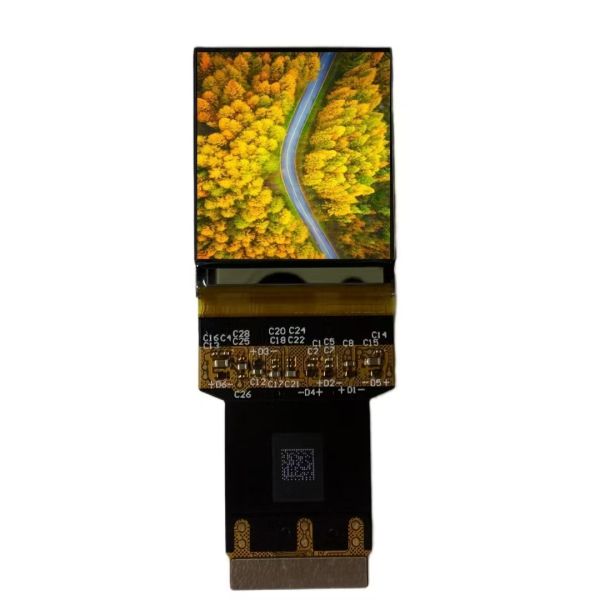

B: Product Picture

C:Drawing &Pin definition

D: Micro Oled Product Knowledge
The key advantages of **Micro Oled** (Silico-based Oled ) is an advanced display Technology

1. Ultra-High Pixel Density(PPI)

2. Thin, Lightweight, and compact

3. Superior Image Quality

4. Lower power consumtion

5. Wide operating Temperature Range

6. High brightness &Efficiency(with advanced designs)

7. Manufacturing & Scalability benefits

Micro Oled Disadvantages

1.High production costs& limited supply

2. limited brightness (compared to Micro LED)

3. limited view angles

4. Shorter lifespan(compared to micro LED )

5 limited application scope(small display only)

6. Motion Blur & Persistence issues(in VR)

7.competition from micro LED

E: Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module

Huaxin Technology (Enshi)Co.,LTD

• Hubei.Enshi
• Date of foundation:2009
• high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
• LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
• LCM includes: COB,TBA, COG,TP,OLED and other series
• register capital:twenty million
• current staff:500+
• RD accounts for 10%
• QC accounts for 15%

F:Production Capacity

G: Product Application

1. VR/AR/MR headsets

2. Militarty /aerospace

3. Medical devices and microdisplays

4. camera&electronic viewfinders

5.Automotive display

6. Wearable &smart glasses

H: Micro OLED vs. Traditional OLED vs. Micro LED

Future of Micro OLED:

Expected to dominate AR/VR and wearable displays due to unmatched pixel density.
- Companies like **Sony, Samsung, BOE, and emagin are investing heavily in this tech.
