20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
Specifications
Brand Name :
Dexon
Model Number :
AIS60FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Visible Range :
5–8 nautical miles
Solar Panel :
4*7W, high-efficiency mono-solar panel
Flash Mode :
256 types(selectable)
Material :
Acrylic lens,ABS+PC base
Working Voltage :
DC 10.5V – 14.4V
Waterproof :
IP68
Battery Capacity :
LifePO4 battery ≥486Wh @4000times DOD
Lifespan :
15 years
Color :
White, red, yellow, green, blue
Certifications :
CE, RoHS, ISO,IEC, IALA
Operating Temperature :
-35°C to 60°C
Light angel :
Buoy Light ≥8°, Fixed Light ≥2.5°
Service :
Logo OEM , ODM, customized detailed requiements
Description

20NM｜Solar-Powered Marine Navigation Lantern

For Buoys｜With AIS AtoN Support

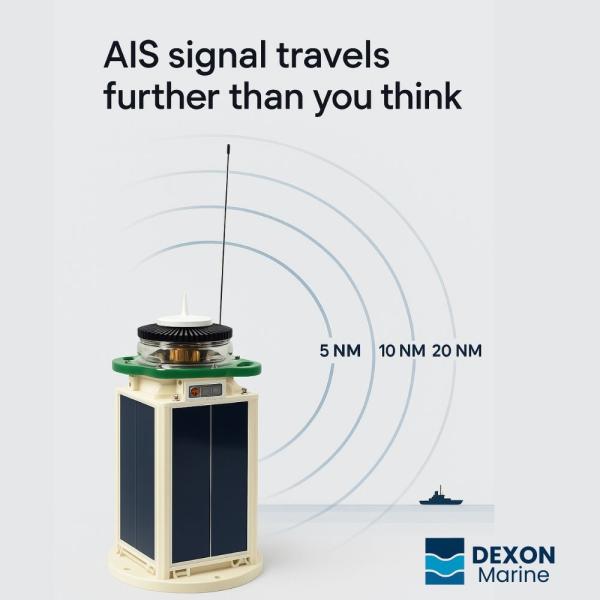

Discover high-performance, low-power navigation with our advanced marine AIS lantern, engineered for offshore environments, buoy systems, and coastal installations. With ultra-low energy consumption (average ≤1W) and adjustable transmission power from 1W to 12.5W, it ensures reliable operation without compromising efficiency. A 3-meter high-gain 316 stainless steel antenna provides robust and stable VHF signal coverage, even under harsh conditions.

The lantern supports triple AIS communication modes—FATDMA, RATDMA, and SOTDMA—making it ideal for flexible deployments across different AtoN systems. Visibility is optimized through 256 selectable flash patterns and five adjustable light colors (red, green, white, yellow, blue), ensuring clarity and compliance in varied marine scenarios. With a visibility range of 5–8 nautical miles and a 3-year free replacement warranty, this solution combines performance, adaptability, and peace of mind.

Built for modern navigation needs, it's the perfect blend of efficiency, intelligence, and durability.

20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support

Core advantages

  1. Low power, High efficiency: 1~12.5W optional transmission power and an average consumption ≤ 1 W
  2. High-gain VHF band antenna:3-metre 316 stainless steel antenna
  3. Triple AIS modes: Default Mode3-SOTDMA, (FATDMA, RATDMA and SOTDMA) for flexible deployment
  4. Warranty: 3-year free replacement
  5. 256 flashing modes and 5 colors red/green/white/yellow/blue) adjustible
  6. Visibility range of 5–8 nautical miles
Product details

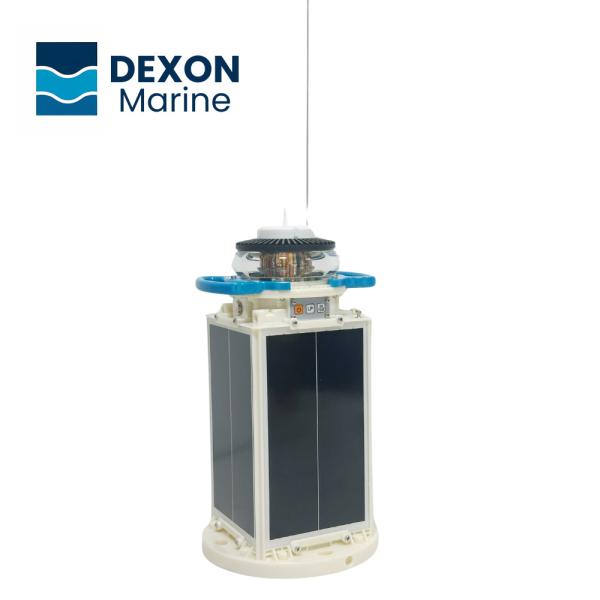

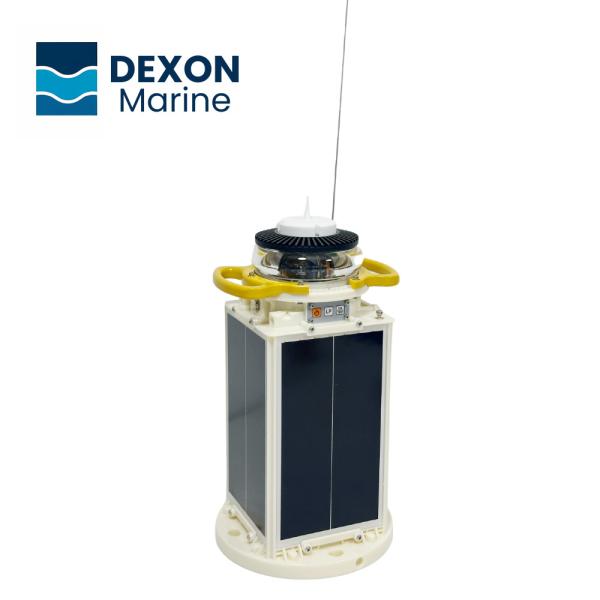

20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support

Technical specification
Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(selectable)
Light Colore
Red/Green/Yellow/White/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Ingress Protection
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Floating Light ≥8°, Fixed Light ≥2.5°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4*7W, high-efficiency mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication
Default Mode3-SOTDMA ,
(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode)
Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6;
multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Floating Light: 240mm × 240mm × 489mm
Fixed Light: 240mm × 240mm × 455mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Meets domestic and
international installation standards
Drawings

20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support
Two Models

20 NM solar-powered marine navigation lantern beacon light for buoys with AIS AtoN support


Application

  • Buoys
  • Beacons
  • Harbor Entrances
  • Offshore Platforms
  • Floating & Fixed AtoN Installations


FAQ

1, Only available in a solar-powered version?
we also offer DC-powered version.

2, What optional features are available?
Optional features include Satellite Communication,329 IALA,AIS,GPS Sync,Bluetooth.

3, What kind of installations is it suitable for?
It’s suitable for fixed beacons, buoys, harbor entrances, offshore platforms, and more.
