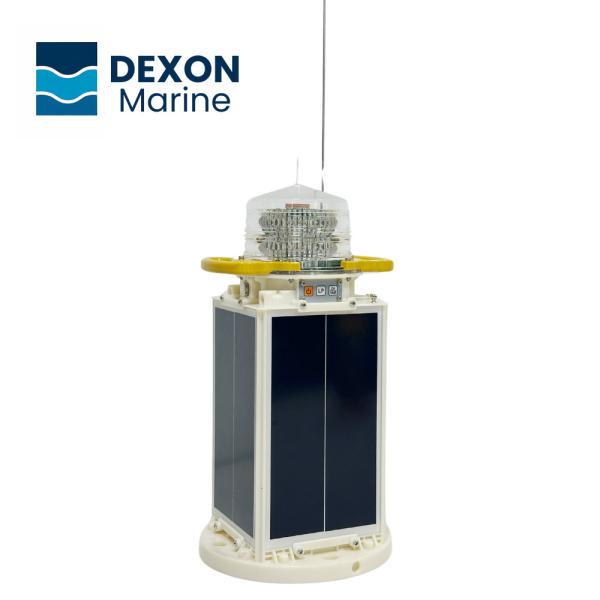

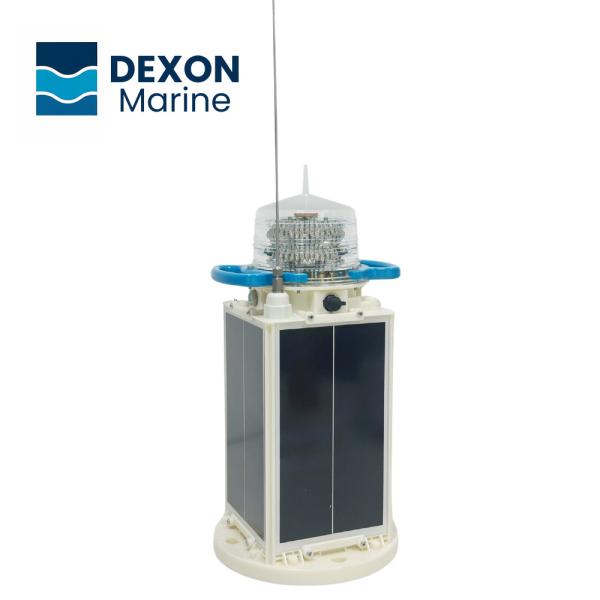

IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon
Specifications
Brand Name :
Dexon
Model Number :
AIS60FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Type :
marine navigation light
Material :
Acrylic lens,ABS+PC base
Ingress Protection :
IP68
Operating Temperature :
-35°C to +60°C
Solar Panel :
4*7W, high-efficiency mono-solar panel
Visible Range :
5–8 nautical miles
Description
This marine navigation light was designed to use as little power as possible. You can choose how much power it uses, from 1W to 12.5W. This makes it perfect for using for a long time on remote buoys or offshore platforms.

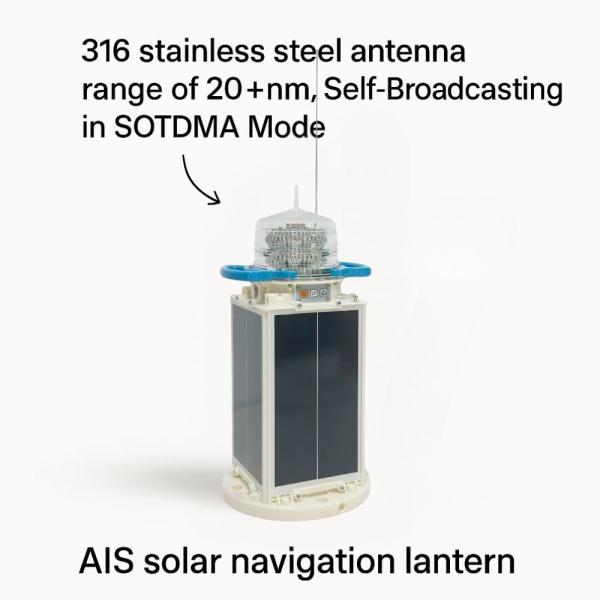

Equipped with a 3-metre high-gain 316 stainless steel antenna, which makes sure the AIS communication is stable up to 20NM+.
Compatible with all the main types of AIS, including SOTDMA, FATDMA and RATDMA, makes it can easily connect to different marine networks and marking systems.
Automatic light sensing, makes it more energy efficient, and its 5–8NM visual range improves visibility in key shipping lanes.

IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon

Core advantages

  1. Selectable 1–12.5W power range enables long-term operation on remote buoys and offshore platforms.
  2. 3m High-Gain 316 Stainless Steel Antenna, ensures stable AIS communication over 20NM
  3. Full AIS Mode Compatibility, SOTDMA, FATDMA, and RATDMA for seamless integration with various AIS marine systems.
  4. Automatic Light Sensing for Smarter Energy Use, adapts brightness to ambient light conditions, extending battery life and efficiency.
  5. 5–8NM Visibility Range for Reliable Navigation, enhances visual safety in critical waterways and shipping lanes.

Product details

IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon

Technical specification

Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(selectable)
Light Colore
Red/Green/Yellow/White/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Ingress Protection
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Floating Light ≥8°, Fixed Light ≥2.5°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4*7W, high-efficiency mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication

Default Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6; multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Floating Light: 240mm × 240mm × 489mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Meets domestic and international installation standards

Drawings

IP68 Rating Solar Marine Lanterns Solar Powered AIS AtoN Light For Buoy & Beacon

Application

  • Beacons
  • Floating AtoN Installations
  • Buoys
  • Harbor Entrances
  • Offshore Platforms

FAQ

1, What’s the power range and intended use?
Selectable 1–12.5W, making it ideal for use with remote buoys and offshore platforms.
2, How stable the AIS signal is?
The 3M 316 stainless steel antenna is designed to ensure a >20NM AIS range.
3, Whether it supports all AIS modes?
Yes, SOTDMA, FATDMA and RATDMA are all supported.
4, Whether the brightness is auto-adjustable?
Yes, intelligent light sensors are able to adapt to the surrounding environment.
5, What's the information on the visibility and delivery time?
Visible at a range of 5–8NM. Orders are shipped within 3–10 days. Box dimensions: 277×281×537 mm.
