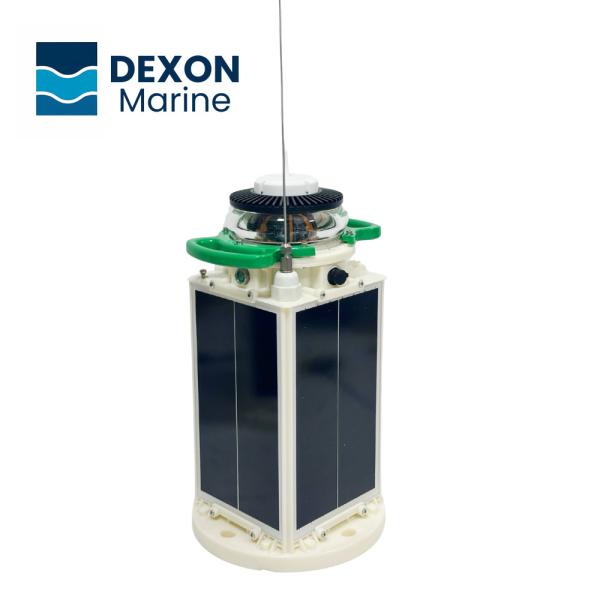

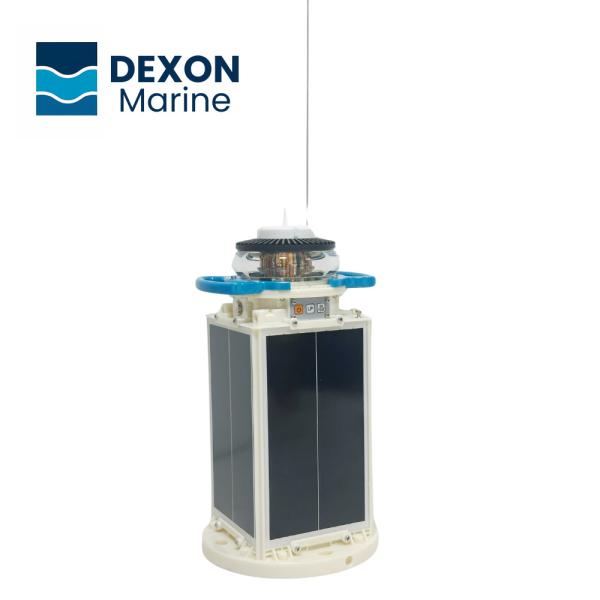

Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety
Specifications
Brand Name :
Dexon
Model Number :
AIS60FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Material :
Acrylic lens,ABS+PC base
Flash Mode :
256 types(adjustible)
Light Color :
White/Yellow/Red/Green/Blue
Type :
solar buoy light
Waterprof :
IP68
Solar Panel :
4*7W each side, mono-solar panel
Description

Engineered to withstand the most severe marine conditions, this AIS-enabled navigation light boasts IP68 professional waterproofing,

and operates reliably in extreme temperatures ranging from -35°C to +60°C.

With a built-in 316 stainless steel antenna, support for all AIS communication modes (SOTDMA, FATDMA, RATDMA),

and a 3-year free replacement warranty. It delivers dependable performance with ultra-low power consumption in any sea.

Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety

Core advantages:

  1. IP68 Waterproof, -35°C to +60°C Operation
  2. Designed to support all AIS modes, including SOTDMA, FATDMA and RATDMA.
  3. Equipped with a built-in 316 stainless steel antenna.
  4. Offer a 3-Year Free Replacement Guarantee
  5. Available in five colours: red, green, white, yellow and blue for any navigational marking.

Product structure

Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety

Technical specification

Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(adjustible)
Light Colore
White/Yellow/Red/Green/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Waterprof
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Fixed Light ≥2.5°, Floating Light ≥8°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4*7W each side, mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication

Preset AIS Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6; multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Fixed Light: 240mm × 240mm × 455mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Support domestic and international installation standards

Drawings

Smart Solar Powered LED Buoy Light IP68 Waterproof With AIS For Port Safety

Application

  • Marine aids to navigation marking
  • Beacons & Marinas Lighting
  • Docks & Harbor Lighting
  • Offshore Platforms
  • Piers & Port Lighting
  • Mooring Points
  • Navigation Aids & Terminal Lighting

FAQ

1, Is the lantern waterproof and weather-resistant?
Yes. It is rated IP68 and operates in temperatures ranging from -35°C to +60°C.

2, Which AIS modes are supported?
Fully compatible with SOTDMA, FATDMA and RATDMA.

3, What are the size and delivery details?
Weighs 9.3 kg, 277 x 281 x 537mm, Shipped within 3–10 days.

4, Are there color options for different markings?
Colours available include red, green, white, yellow or blue.
