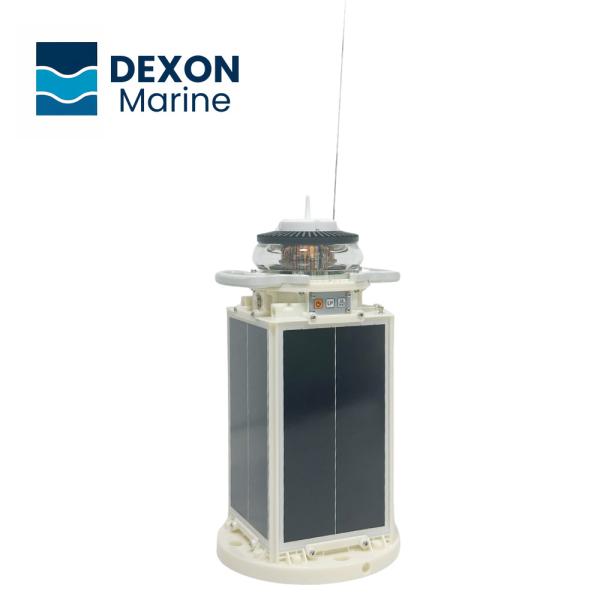

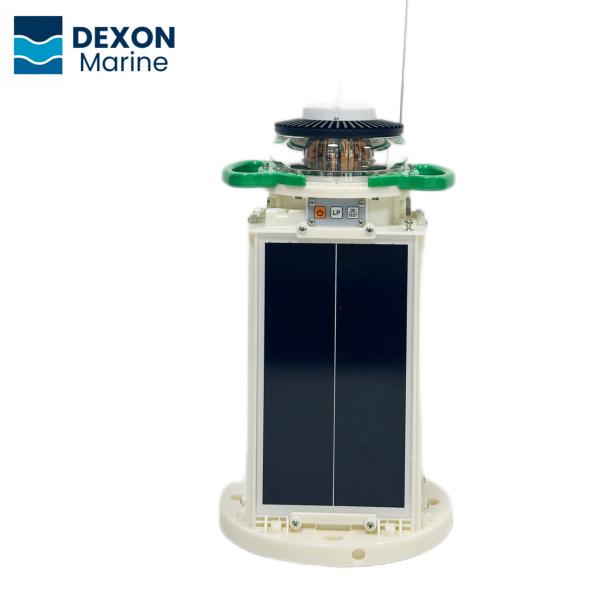

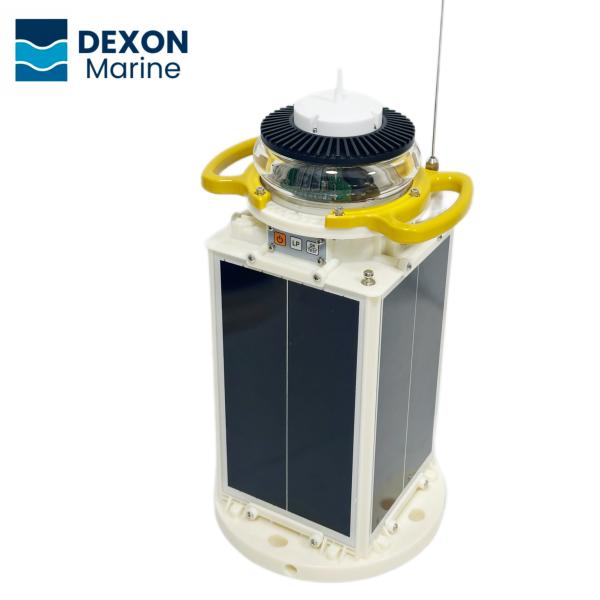

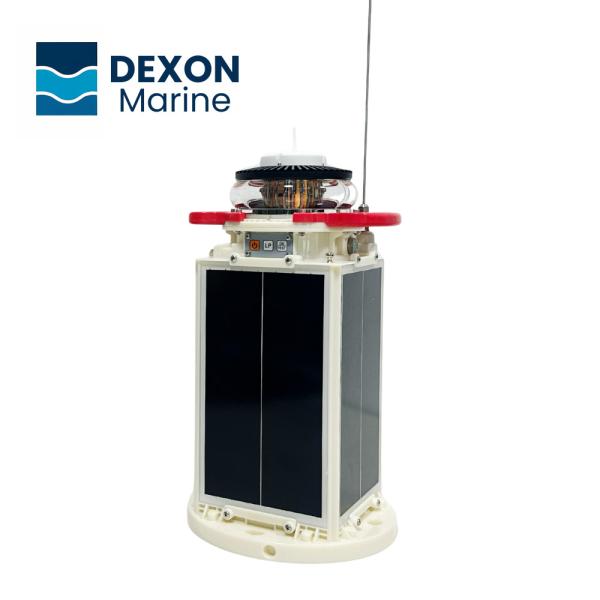

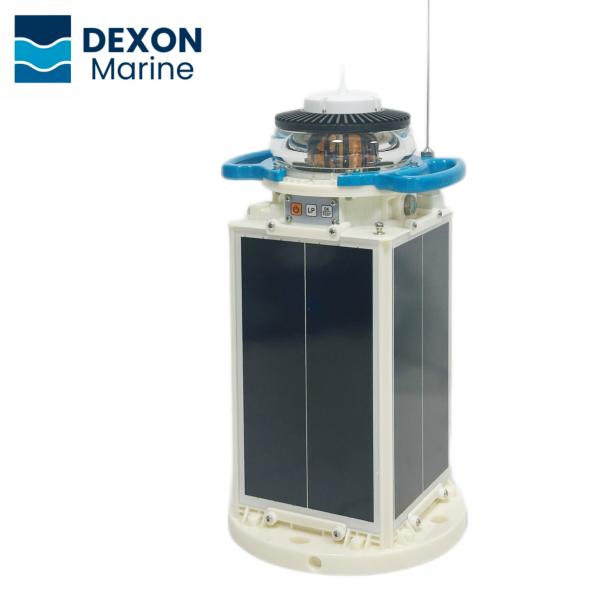

Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points
Specifications
Brand Name :
Dexon
Model Number :
AIS60FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Operating Temperature :
-35°C to +60°C
Solar Panel :
7W each side, high-efficiency mono-solar panel
Light Color :
Yellow/Red/Green/White/Blue
Visible Range :
5–8 nautical miles
Waterprof :
IP68
Working Voltage :
DC 10.5V – 14.4V
Description

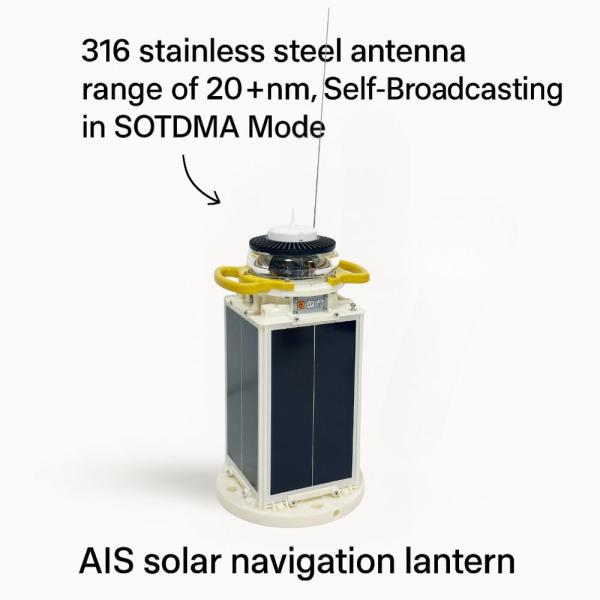

This marine navigation light features a 3-metre, high-gain, 316 stainless steel antenna that enables communication over a distance of 20 nautical miles. It supports the default SOTDMA and optional FATDMA/RATDMA AIS communication modes, ensuring reliable and intelligent signalling. Backed by a free replacement guarantee for three years, it is built for diverse maritime scenarios, ensuring safe and efficient navigation.

Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points

Core advantages:

  1. 3m High-Gain Antenna, 20+ NM Range
  2. Triple AIS Mode Compatibility-FATDMA, RATDMA and SOTDMA,adjustible
  3. 3-Year Free Replacement
  4. Strong, UV-proof Acrylic lens
  5. Optional functions:Satellite Communication,329 IALA,GPS Sync,Bluetooth

Product details

Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points

Technical specification

Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(adjustible)
Light Colore
Yellow/Red/Green/White/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Waterprof
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Floating Light ≥8°, Fixed Light ≥2.5°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
7W each side, high-efficiency mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (no sun)
AIS AtoN
Communication

Preset AIS Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6; multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Fixed Light: 240mm × 240mm × 455mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Meets domestic and international installation standards

Drawings

Solar Powered Nav Lights Marine Lantern With AIS AtoN For Fixed Navigation Points

Application

  • Marine aids to navigation marking
  • Beacons & Marinas Lighting
  • Docks & Harbor Lighting
  • Offshore Platforms
  • Piers & Port Lighting
  • Mooring Points
  • Navigation Aids & Terminal Lighting

FAQ

1, What is the maximum VHF transmission range of this lantern?
With its 3-metre high-gain antenna, it can reliably transmit AIS signals over 20+NM in open sea conditions

2, Does this product support multiple AIS communication modes?
Yes, it preset SOTDMA mode, also supports FATDMA, RATDMA The mode can be adjusted to ensure compatibility with different AIS infrastructure setups

3, How soon can the product be delivered?
The standard delivery time is between 3~10 days, depending on the volume of your order and its destination.

4, What are the size and weight of the shipping package?
Each unit comes in a box measuring 277 mm × 281 mm × 537 mm, with a total weight of around 9.3 kg
