Specifications
Brand Name :
Dexonmarine
Model Number :
AIS60-FL
Certification :
ISO9001,IEC, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
usd$2500-3000
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Packaging Details :
cartons/pallets
Warranty :
3 years
LifeSpan :
15 years
Visibility :
5-8nm
Waterproof :
IP68
Light Source :
LED
Battery Capacity :
LifePO4 battery ≥486Wh @4000times DOD
Color :
White, red, yellow, green, blue
Installation Method :
Screw Mounting
Lens Materia :
Acrylic
Certifications :
CE, RoHS, ISO,IEC, IALA
Operating Temperature :
-20°C to 60°C
Light angel :
Buoy Light ≥8°, Fixed Light ≥2.5°
Transmission Power :
1W 2W 5W 6W 12.5W (select option)
Applications :
Port and harbor navigation, offshore platforms, buoy marker systems, environmental monitoring, wind turbines, marine construction, and safety markers for water and marine areas.
Service :
Logo OEM , customized detailed requiements
Transmission distance :
25nm
Description

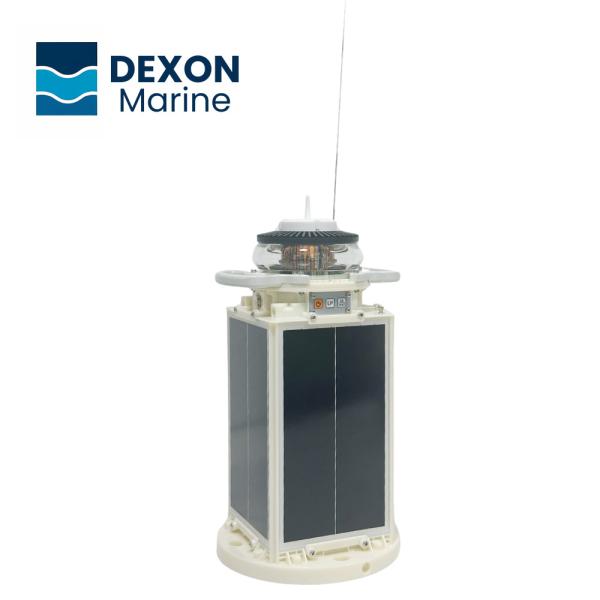

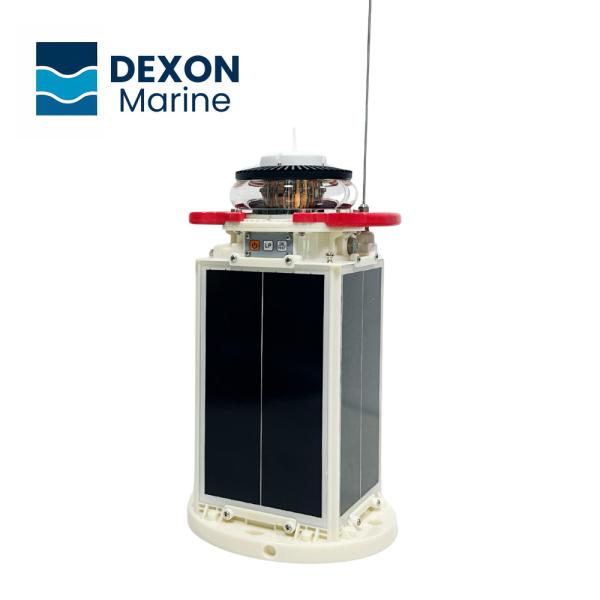

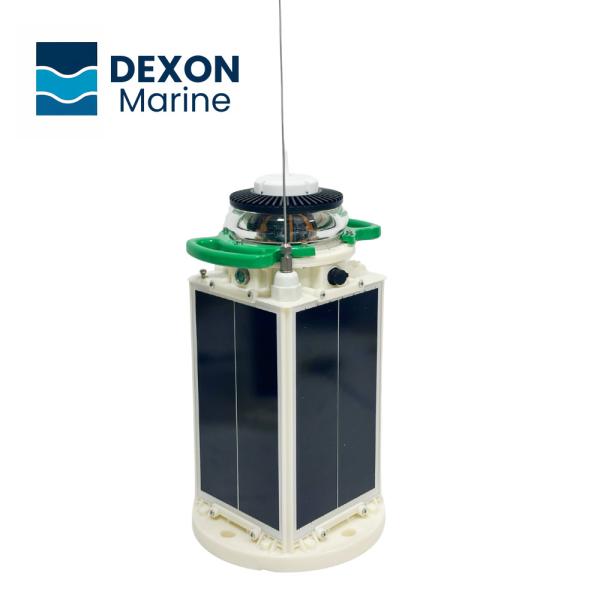

fully integrated Solar-Powered AIS AtoN for Fixed Beacons

The AIS60-FB is a fully integrated solar-powered AIS Aids to Navigation light designed specifically for fixed beacons, such as pier markers, daymarks, breakwater indicators, or shore-based marine signals. Unlike buoy-type AtoNs, fixed beacons require a narrow vertical beam angle to ensure precise light targeting and optimal energy usage in a stable mounting environment.

Built with a high-efficiency solar panel, an integrated lithium battery, and AIS transmission capabilities, the AIS60-FB operates completely autonomously, with no need for external power or base station support.

Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons

Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons

KEY ADVANTAGES


  • The AIS60 All-in-one Solar Navigation Lantern is available in two models: Type I and Type III. These models meet international maritime standards.
  • This product supports standard AIS messages (Messages 21, 6, and 8), and it is capable of additional messages such as Messages 7, 12, 20, and 25.
  • It offers two AIS transmit power options: ≤6W and ≤12.5W, ensuring effective communication over various distances.
  • It offers 256 IALA-compliant flashing patterns, accompanied by a comprehensive guide.
  • The device offers dual-mode positioning with Beidou and GPS (adjust as required), ensuring precise navigation data.
  • This Solar Navigation Lantern is available in five colors and features adjustable brightness levels (0 to 5). It is customizable for different buoy environments.
  • The visibility range is from 3 to 8 nautical miles, and the AIS signal transmission range is up to 25 nautical miles.
  • Remote maintenance checks are conducted via an additional chip, thereby eliminating the need for manual inspections at the buoy.

TECHNICAL DATA


Category Specification Details
Overall Features Operating Voltage DC: 10.5V—14.4V
Solar Panels Vertical: 4x7W
Charging Current Typical value 400mA
Operating Temperature -35°C to +60°C
Parameter Loading RS232, Button
Waterproof Level IP68
Net. Weight 9.8 kg
Dimensions Buoy Light: 240mm x 240mm x 489mm
Fixed Light: 240mm x 240mm x 455mm
Packaging Dimensions 277mm x 281mm x 537mm
Installation Dimensions Compliant with domestic and international standards
Continuous Operation in Overcast/Rainy Conditions ≥25 days
AIS Features Operating Frequency 161.975MHz, 162.025MHz
Modulation Mode GMSK/FSK
Frequency Error ±0.5kHz
Transmission Power 1W 2W 5W 6W 12.5W (select option)
Average Power Consumption Continuous mode ≤1W (Low power mode ≤0.7W)
Message Format Messages 21, 6 adjustable, supports multiple formats
Operating Mode Default Mode Three SOTDMA (FATDMA, RATDMA, SOTDMA adjustable)
Light Features Len material Acrylic
Base material ABS+PC
Light Colors Red/Green/Yellow/White/Blue
Light Intensity 256 adjustable levels
Daylight Threshold Digital photosensitive, adjustable threshold
Beam Distance 5-8nm
Emission Angle Buoy Light ≥8°, Fixed Light ≥2.5°
Battery Features Battery Type LiFePO4 Battery
Battery Capacity ≥640Wh

TWO MODELS


Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons

Feature AIS60-FB (Fixed Beacon) AIS60-FL (Float Buoy)
Vertical Beam Angle ≥2.5°, focused for fixed installations ≥8°, wider to accommodate buoy movement
Installation Type Rigid mount on walls, piers, or poles Mounted on floating buoys or mooring systems
Light Stability Stable and precise directional output Wide beam to maintain visibility at all angles
Use Case Daymarks, bridges, fixed shore signals Offshore buoys, channel markers

Drawings (mm)


Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons

Fully Integrated Solar Powered Marine Navigation Lantern Light AIS AtoN For Fixed Beacons
