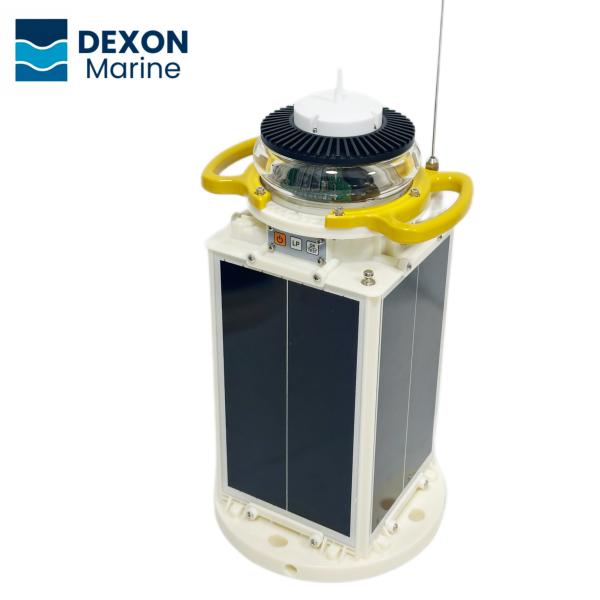

AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons
Specifications
Brand Name :
Dexon
Model Number :
SC160FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
USD2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Material :
Acrylic lens, ABS+PC base
Working Voltage :
DC 10.5V – 14.4V
Operating Temperature :
-35°C to +60°C
Waterproof Rating :
IP68
Certifications :
CE, RoHS, ISO,IEC, IALA
Visible Range :
5–8NM
Battery Capacity :
LifePO4 battery ≥486Wh @4000times DOD
Lifespan :
15 years
Colore :
White, red, yellow, green, blue
Installation Method :
Screw Mounting
Light angel :
Buoy Light ≥8°, Fixed Light ≥2.5°
Service :
Logo OEM, ODM, customized detailed requiements
Description
AIS AtoN｜Compatible solar navigation light
Waterproof｜Off-grid ｜For buoys and beacons
Built for the very harsh marine environments. It can operate in temperatures ranging from -35°C to +60°C, with a strong acrylic lens and durable ABS+PC base, which help it to last even when there is salt, ice or heat. With 256 adjustable flash patterns and five colour options (red, yellow, green, blue, and white), which meet the full range of IALA marking standards. Whether for fixed port lighting or floating AtoN installations, it is easy to customise and will always work well.

AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons

Core advantages

  1. Withstands extreme weather from -35°C to +60°C, built for salt, ice, and heat.
  2. Durable acrylic lens and ABS+PC base ensure long-lasting performance in harsh marine conditions.
  3. Offers 256 flash patterns and 5 colors to meet all IALA marking standards.
  4. Customizable for both fixed ports and floating AtoN installations.
  5. Reliable operation across all types of seas and oceans, no matter what the challenge.

Product structure

AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons

Technical specification

Category Specification Details
Main features
Material
Acrylic lens, ABS+PC base
Flash Mode
256 types(adjustible)
Light Colore
White/Yellow/Red/Green/Blue
Visible Range
5–8NM
Daylight Threshold
Digital photosensitive, adjustable threshold
Waterprof
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Fixed Light ≥2.5°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4 X 7W each side, mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication

Preset AIS Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6;
multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Fixed Light: 240mm × 240mm × 455mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Support domestic and international installation standards

Drawings

AIS AtoN-compatible solar navigation light – waterproof and off-grid for buoys and beacons

Application

  • Offshore Platforms
  • Marine aids to navigation marking
  • Beacons & Marinas Lighting
  • Docks & Harbor Lighting
  • Piers & Port Lighting
  • Mooring Points
  • Navigation Aids & Terminal Lighting

FAQ

1, Can it handle extreme weather conditions?
Yes. Operates from -35°C to +60°C — salt, ice, and heat resistant.
2, Is it suitable for all marine installations?
Yes. It is compatible with both fixed ports and floating AtoNs.
3, Are flash patterns and colors customizable?
Yes. 256 patterns and 5 IALA-compliant color options.
4, What are the weight and delivery details?
The light 9.3 kg, packing size 277×281×537 mm. Ships in 3–10 days globally.
