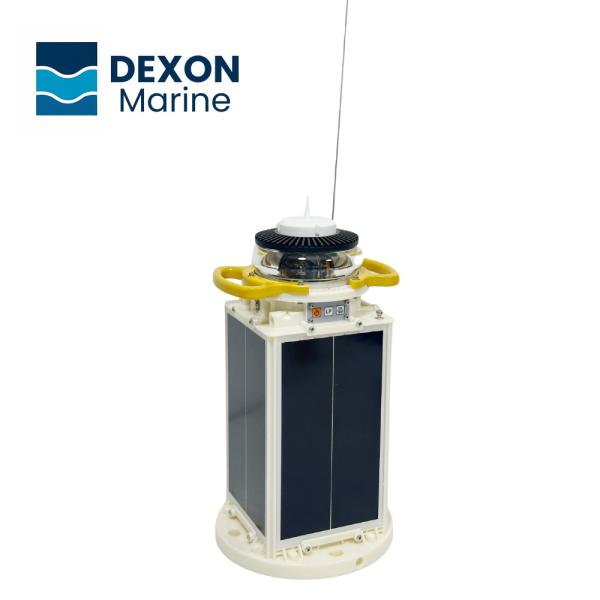

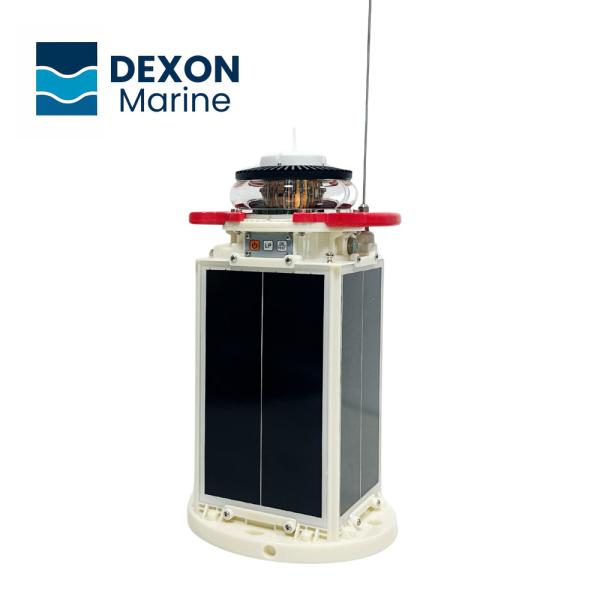

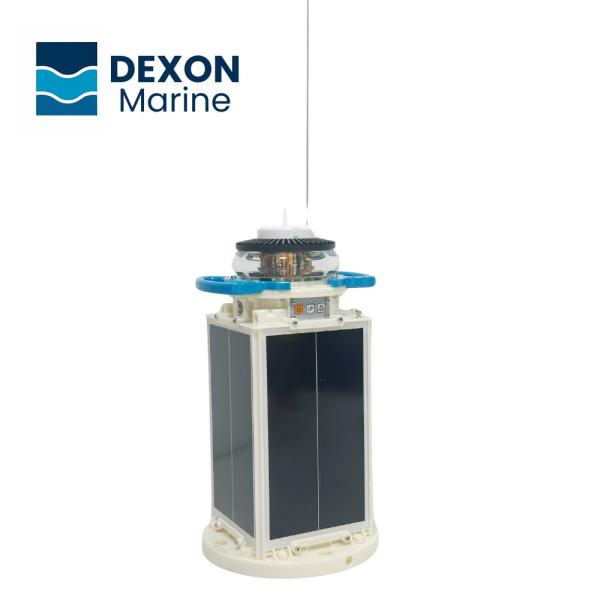

AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights
Specifications
Brand Name :
Dexon
Model Number :
AIS60FX
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
2500-3000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Type :
solar navigation light
Waterproof :
IP68
Operating Temperature :
-35°C to +60°C
Working Voltage :
DC 10.5V – 14.4V
Solar Panel :
4*7W each side, mono-solar panel
Visible Range :
5–8 nautical miles
Description

This high-efficiency marine navigation light has been engineered for ultra-low power consumption, making it ideal for long-term use.

Featuring AIS AtoN functionality and a built-in high-gain stainless steel antenna, enables communication over a distance of 20+ nautical miles.

Supporting SOTDMA, FATDMA and RATDMA modes for flexible AIS integration. The light with 256 flashing patterns and 5 colours for option,

it can be adapted to suit various marine environments. Backed by a free replacement guarantee for 3 years.

AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights

Core advantages:

  1. Triple AIS modes and smarter signal control,supports SOTDMA, FATDMA and RATDMA
  2. The 316 stainless steel antenna provides superior signal strength over long distances and is VHF-optimised.
  3. Acrylic lens and ABS+PC base, built to endure
  4. Five colours available (red/green/white/yellow/blue) adapt to any marking.
  5. 3-Year Free Replacement

Product details

AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights

Technical specification

Category Specification Details
Main features
Material
Acrylic lens,ABS+PC base
Flash Mode
256 types(adjustible)
Light Colore
White/Yellow/Red/Green/Blue
Visible Range
5–8 nautical miles
Daylight Threshold
Digital photosensitive, adjustable threshold
Waterprof
IP68
Operating Temperature
-35°C to +60°C
Emission Angle
Fixed Light ≥2.5°, Floating Light ≥8°
Working Voltage
DC 10.5V – 14.4V
Parameter Loading
RS232 and onboard button
Solar Panel & Battery
Solar Panel
4*7W each side, mono-solar panel
Charging Current
Typical 400mA
Battery
LiFePO4 battery, capacity 640Wh
Continuous Operation
≥25 days (without sun)
AIS AtoN
Communication

Preset AIS Mode3-SOTDMA ,

(FATDMA / RATDMA / SOTDMA, adjustable)
Operating Frequency
161.975MHz,162.025MHz (±0.5kHz)
Modulation Mode
GMSK / FSK
Transmission Power
1W / 2W / 5W / 6W / 12.5W (configurable)
Average Power Consumption
≤ 1W (continuous working mode),Low power mode ≤0.7W
Message Format
Supports standard AIS Message 21, 6; multiple formats selectable
W/D/K
Net Weight
9.3 kg
Dimensions
Fixed Light: 240mm × 240mm × 455mm
Packaging Dimensions
277mm × 281mm × 537mm
Installation
Suit both domestic and international installation standards

Drawings

AIS AtoN LED Marine Light Long Range Visibility Solar Boat Navigation Lights

Application

  • Marine aids to navigation marking
  • Beacons & Marinas Lighting
  • Docks & Harbor Lighting
  • Offshore Platforms
  • Piers & Port Lighting
  • Mooring Points
  • Navigation Aids & Terminal Lighting

FAQ

1, Which AIS modes are supported?
SOTDMA, FATDMA and RATDMA represent triple mode for full compatibility.

2, Is this model built to withstand harsh marine conditions?
Yes. 316 SS antenna + acrylic lens + ABS+PC base — tough and weatherproof.

3, What’s the size and shipping time?
A3: 9.3 kg, 277×281×537 mm(package). Ships in 3–10 days.

4, Are colour options available?
Yes. white, red, green, yellow and blue comply with the IALA colour code.
