1–3 NM Solar Marine Lantern for Navigation Buoys
1–3 NM Solar Marine Lantern for Navigation Buoys
1–3 NM Solar Marine Lantern for Navigation Buoys
1–3 NM Solar Marine Lantern for Navigation Buoys
1–3 NM Solar Marine Lantern for Navigation Buoys
1–3 NM Solar Marine Lantern for Navigation Buoys
Specifications
Model Number :
DM360
Application :
Navigation buoys and short-range AtoN
MOQ :
1
Delivery Time :
15 days
Solar Panel :
2 W monocrystalline solar panel
Local Setup :
Bluetooth, RS232, onboard controls
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Operating Time :
≥20 days in rainy weather
Operating Temperature :
−35°C to +65°C
Price :
Negotiable
Battery :
6.4 V / 6 Ah LiFePO₄
Weight :
2.5 kg
Certification :
ISO9001,IEC, IALA
Available colors :
Red / Green / White / Yellow / Blue / Yellow-Blue
Supply Ability :
5000pcs/month
Positioning & Sync :
GPS / BeiDou, GPS synchronisation
Waterproof Rating :
IP68
Place of Origin :
Chengdu
Flash Characters :
256 selectable patterns
Packaging Details :
cartons/pallets
Remote Monitoring :
Optional GSM via Satvora 360
Brand Name :
Dexonmarine
Visible Range :
1–3 NM
Description

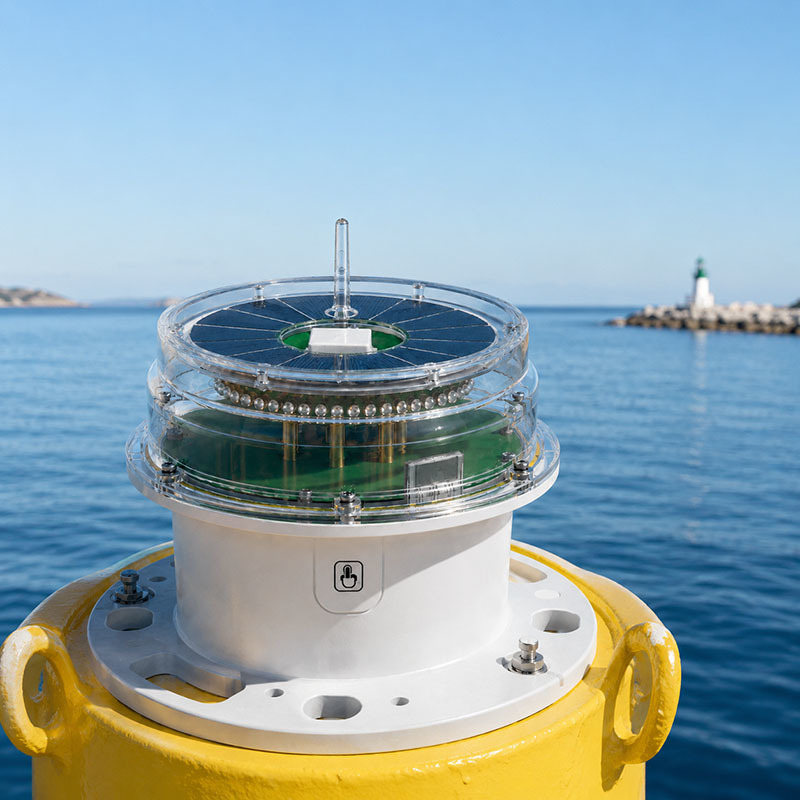

1–3 NM Compact Solar Marine Lantern
Simple, reliable marking for navigation buoys

The DM360 is a compact, self-contained solar marine lantern for navigation buoys, harbour marks, inland waterways and other short-range marine aids to navigation.

Designed for easy installation and low-maintenance operation, it delivers 1–3 NM visibility and 20+ days of operation in rainy weather. Bluetooth setup, GPS/BeiDou positioning, and optional GSM monitoring make inspection and asset management easier.

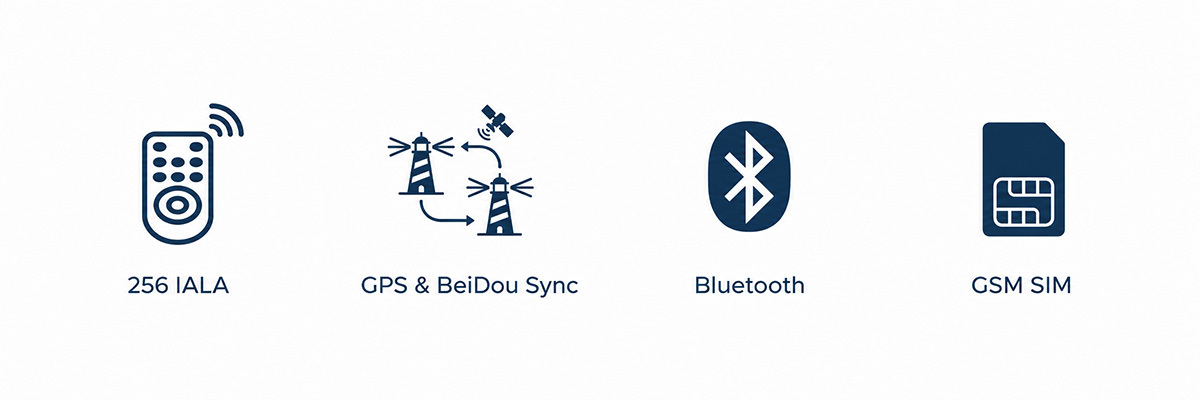

1–3 NM · Solar Powered · IP68 · Bluetooth · GPS/BeiDou · Optional GSM
A Compact Solar Buoy Light for Everyday Marine Marking

Short-range navigation projects do not always need a large lantern or a separate external power system.

The DM360 integrates the main lighting, power, positioning, and control functions into one compact unit. It is easy to carry, simple to install, and suitable for marine projects that require dependable visual marking with minimal fieldwork.

Customer benefits
  • Fewer external components
  • Faster buoy installation
  • Easier field configuration
  • Lower routine maintenance
  • Clear local status checking
  • Optional remote monitoring


Easy Setup and Faster Field Inspection

Technicians can connect to the lantern through Bluetooth using an Android or iOS device. This allows local status checks and parameter adjustment without internet or mobile-network coverage.

The built-in LED status display also gives maintenance teams a quick way to review the lantern’s operating condition without opening the enclosure, helping shorten routine inspections and reduce unnecessary handling.

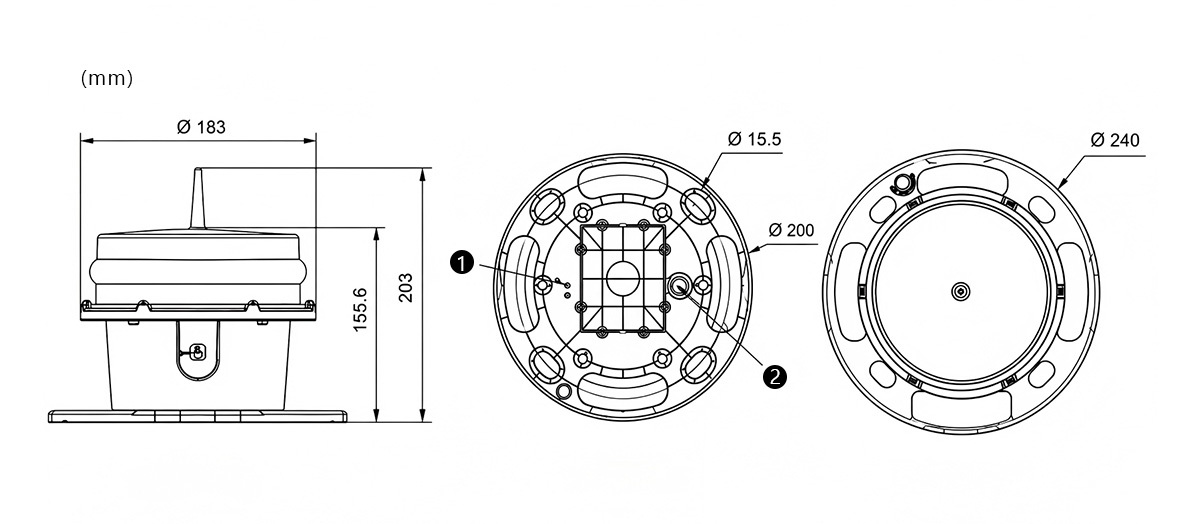

Product Dimensions

(1) Touch Switch

(2) Vent Valve

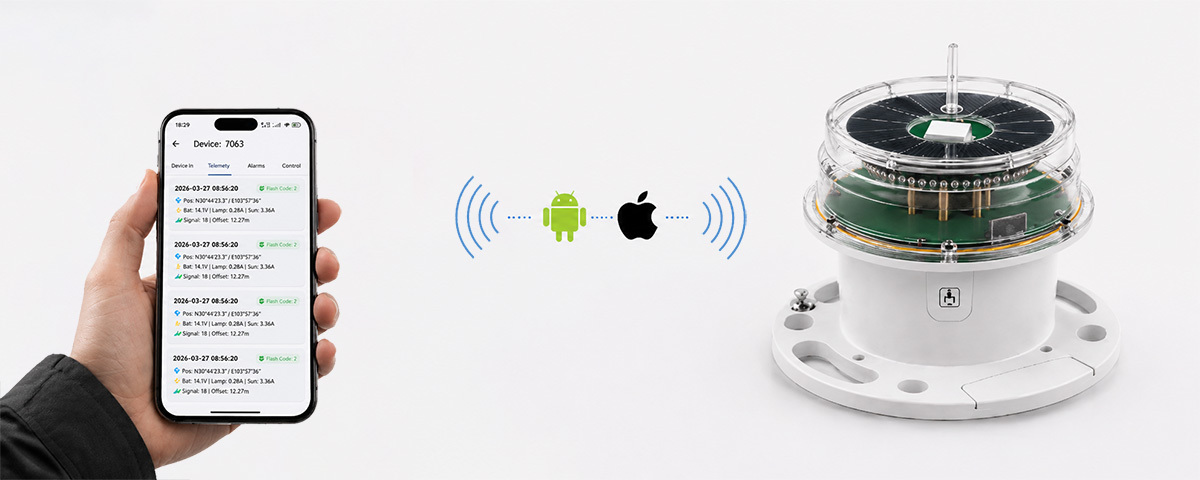

Mobile App & Bluetooth Setup

The DM360 supports the Dexonmarine mobile app on both Android and iOS devices.

Technicians can connect locally through Bluetooth to check the lantern and adjust settings without internet or mobile-network coverage. This simplifies commissioning and routine inspection at remote buoys and waterways.

Android & iOS · Bluetooth Access · No Internet Required

GPS/BeiDou Positioning and Synchronised Flashing

GPS and BeiDou positioning help identify abnormal buoy movement or displacement.

Satellite synchronisation allows multiple lanterns to flash together when coordinated marking is required for channels, harbour areas or grouped navigation aids.

AIS AtoN Communication

Optional AIS communication supports Type 1 and Type 3 AtoN operation with FATDMA, RATDMA and SOTDMA modes.

It allows the lantern to transmit AtoN information to nearby vessels and AIS monitoring systems. The typical communication range is 15–20 NM, depending on installation and operating conditions.

GSM Remote Monitoring

The DM360-GSM connects to the Satvora 360 platform through a local SIM card or factory-provided global roaming SIM service.

Operators can review device status, receive alarms and manage remote assets without travelling to the installation site as frequently.

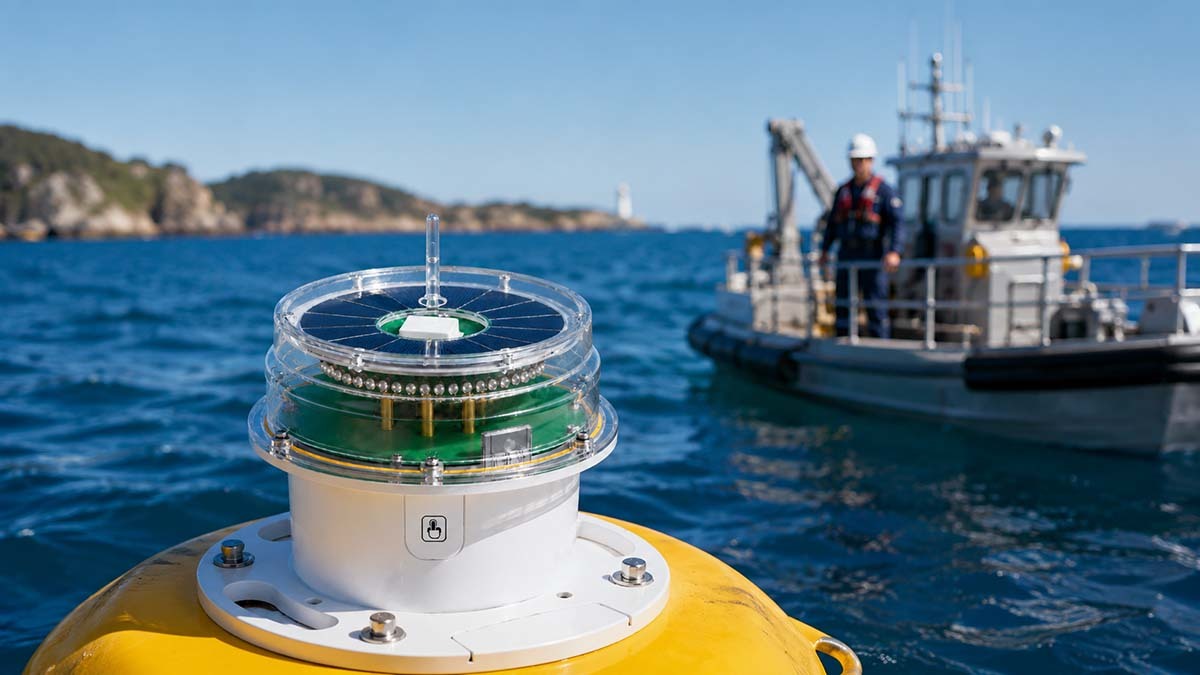

Suitable Applications

The DM360 is designed for short-range marine marking, including:

  • Navigation buoys
  • Harbour and port marks
  • Inland waterways
  • River channels
  • Marina entrances
  • Aquaculture boundaries
  • Temporary hazard marks
  • Private aids to navigation
Choose the Right Model
DM360

For projects that need reliable 1–3 NM solar marking with Bluetooth setup, GPS/BeiDou positioning and local field inspection.

Best for: Standard navigation buoys, harbour marks and inland waterways.

DM360-GSM

Adds GSM telemetry and Satvora 360 access for remote status, position and alarm monitoring.

Best for: Remote sites where operators want to reduce routine inspection visits.

Why Choose Dexonmarine?

Dexonmarine can configure the Solar Marine Lantern according to the required light colour, flash character, mounting interface, and communication needs.

With in-house marine electronics production, optical assembly, communication integration, buoy manufacturing and pre-deployment inspection, Dexonmarine supports the lantern as part of a complete marine AtoN solution—not only as a standalone product.



Frequently Asked Questions
What is the difference between DM360 and DM360-GSM?

The standard DM360 supports local Bluetooth setup and inspection. The DM360-GSM adds remote telemetry and Satvora 360 platform access for status, position and alarm monitoring.

Can the lantern be configured without internet access?

Yes. Technicians can use Bluetooth to check status and adjust settings from a nearby Android or iOS device without mobile-network or internet coverage.

Does the DM360 support AIS communication?

Yes. The DM360 can be configured with optional AIS AtoN communication, supporting Type 1 and Type 3 operation with FATDMA, RATDMA and SOTDMA modes. The typical AIS communication range is 15–20 NM, depending on installation and operating conditions.
