Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Specifications
packaging type :
Tube
Weight (KG) :
220
Air Pressure :
0.6-0.8MPa
Place of Origin :
Guangdong, China
Brand Name :
Cosmati
Voltage :
220 V
video outgoing-inspection :
Provided
packaging material :
Plastic
Structure :
linear type
Capacity :
15-25PCS/Min
driven type :
Mechanical
key selling points :
Long Service Life
After-sales Service Provided :
Field installation, commissioning and training, Video Technical Support
Driven Type :
Electric
dimension(l*w*h) :
refer to drawings
machinery test report :
Provided
filling nozzle :
1
MOQ :
1
core components :
Motor, PLC, Engine
Filling Range :
20-300ml can be customized
automatic grade :
Automatic
Keywords :
tube filling and sealing machine for cream
Payment Terms :
TT
Power supply :
1P/220V
Power :
2.6KW
warranty :
1 Year
filling accuracy :
±0.1%
Supply Ability :
10000 set
Product name :
Automatic Linear Ultrasonic Tube filling and sealing machine
Price :
R 42 095,91-50 515,10
Delivery Time :
7 work days
application :
Chemical, cosmetic
Filling Volume :
200mL, 100mL, can be customzied
Packaging Details :
wooden cases
filling material :
Water, Oil, Powder, Other
Description

Introduction

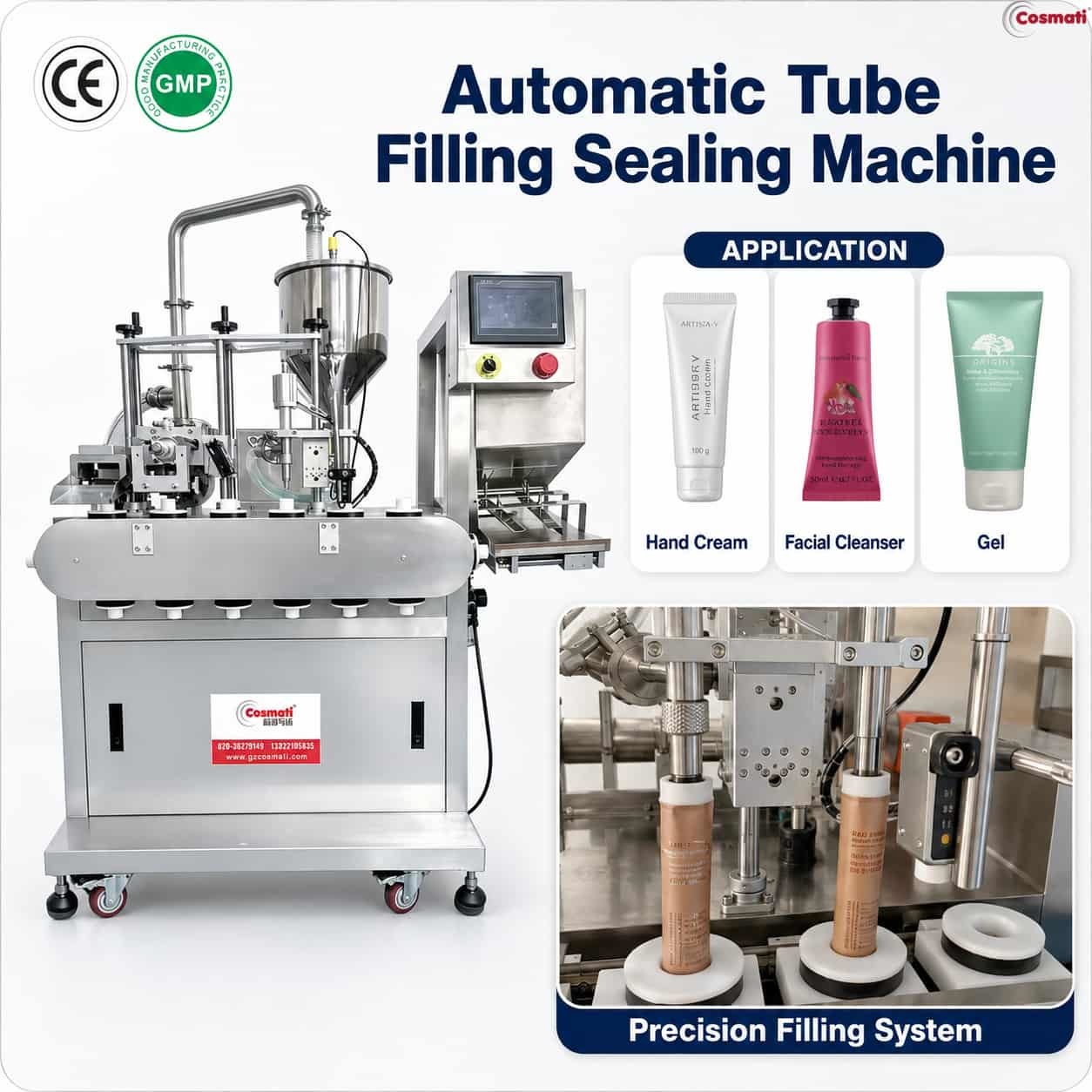

The Automatic Ultrasonic Tube Filler Sealer is designed for filling, sealing and trimming plastic soft tubes used for cosmetic cream, ointment, gel, lotion and other paste or semi-liquid products.

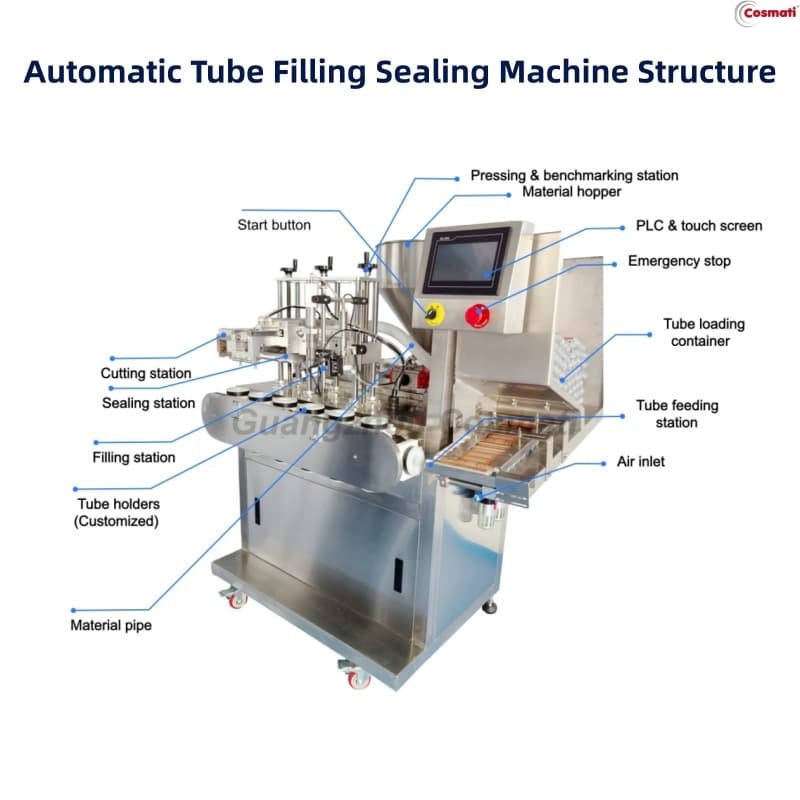

The machine integrates tube feeding, tube positioning, quantitative filling, ultrasonic sealing, cutting and finished tube discharge into one compact production system. PLC and touch screen control simplify parameter adjustment and production operation.

With approximately 15–25 tubes per minute output and a customizable filling range up to about 20–300ml, the machine is suitable for cosmetic, personal care and pharmaceutical-style soft tube packaging applications.

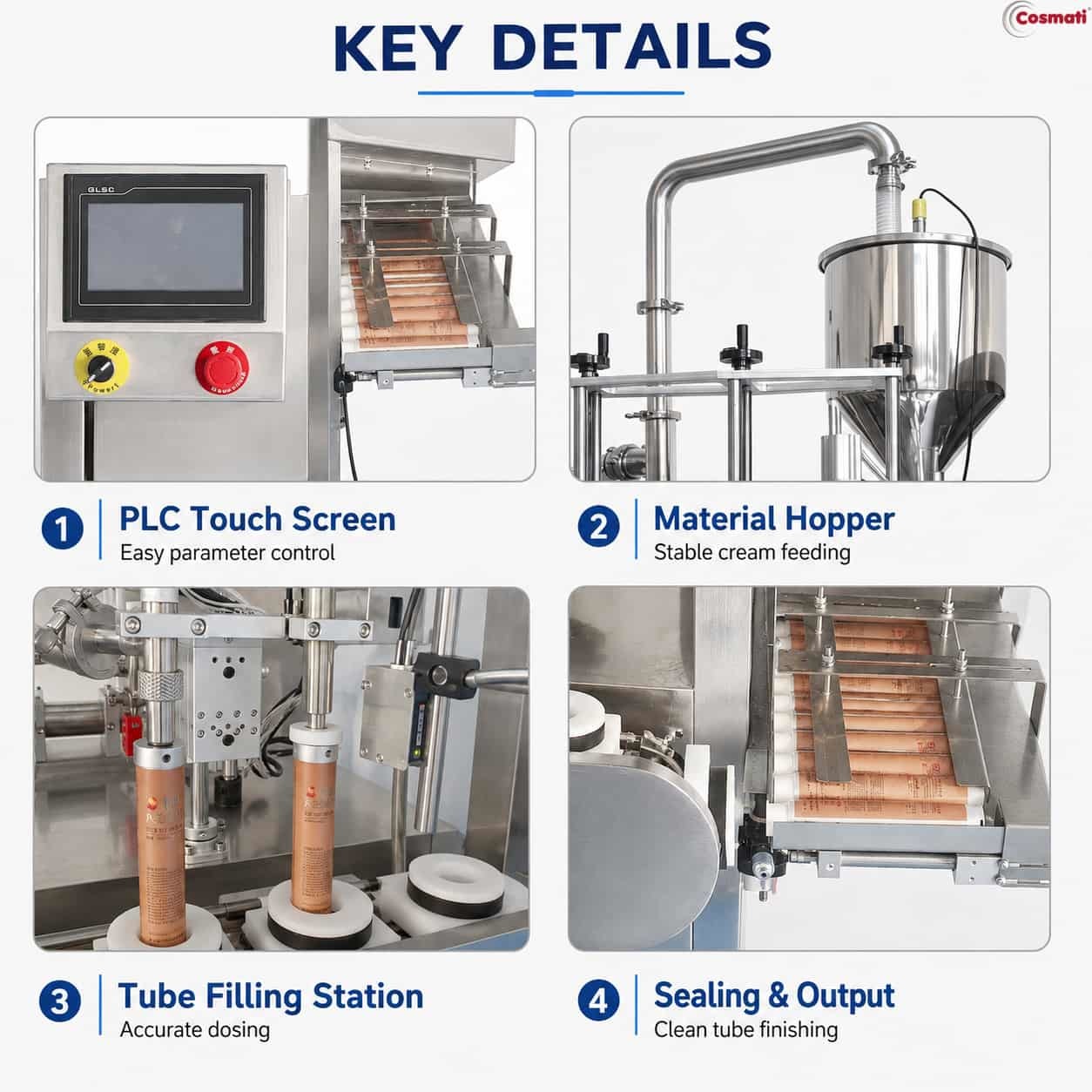

Key Features

  1. Automatic tube feeding reduces manual loading work.
  2. Single-head quantitative filling supports cream gel ointment and lotion.
  3. Ultrasonic sealing provides stable plastic tube closure.
  4. Integrated cutting station trims the sealed tube tail.
  5. Customized tube holders suit different tube diameters.
  6. PLC touch screen provides convenient parameter control.
  7. Filling range can be customized approximately 20–300ml.
  8. Reference filling accuracy reaches approximately ±0.1%.
  9. Production speed reaches approximately 15–25 tubes per minute.
  10. Emergency stop and pneumatic control improve operating safety.
  11. Stainless steel structure provides convenient cleaning and maintenance.
  12. Machinery test report and outgoing inspection video can be provided.

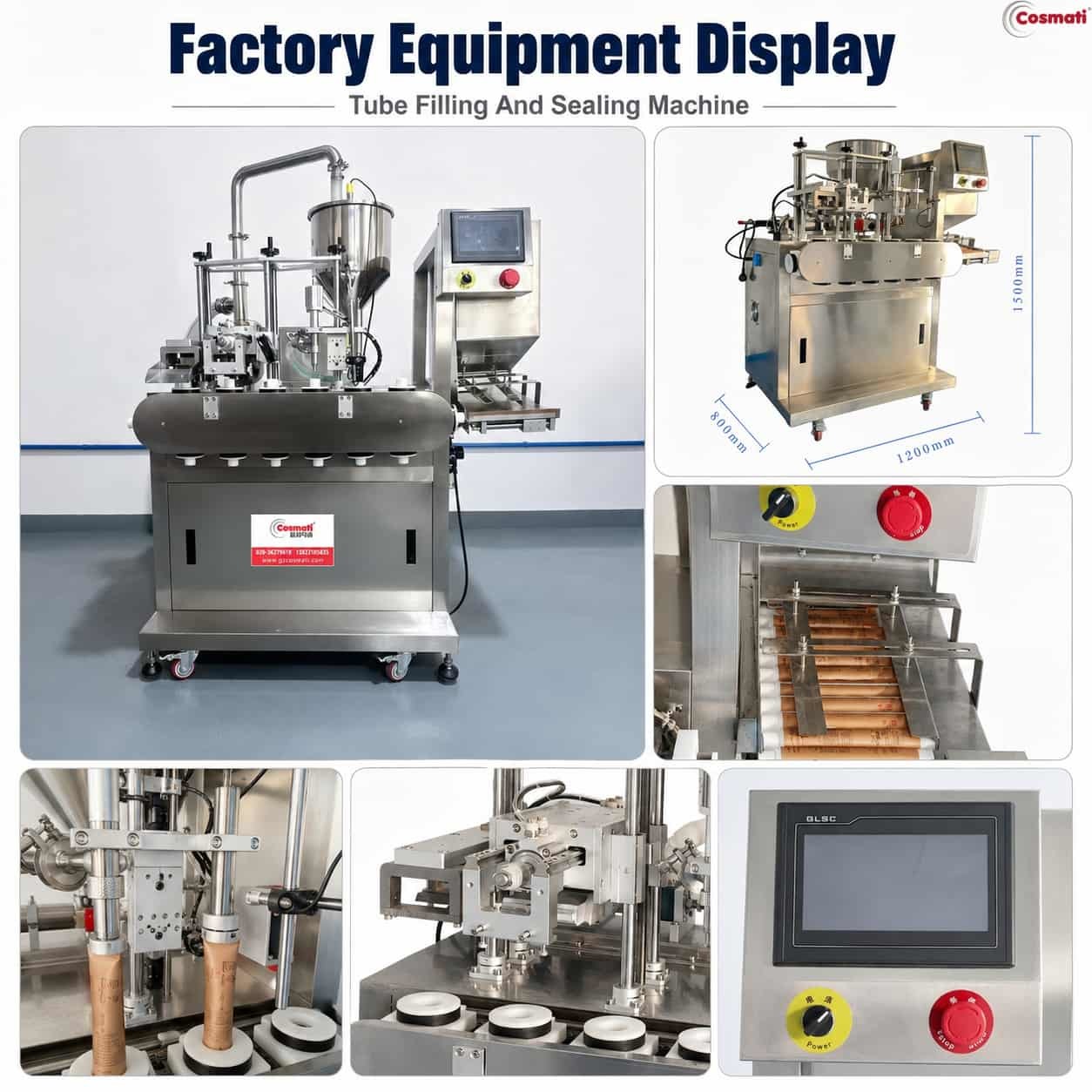

Factory profile
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Engineer case
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Trade show participation
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Packaging & shipping specifications
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging
Application
Gel Cream Ointment Cosmetic Automatic Ultrasonic Tube Filler Sealer Packaging

FAQ

1. What products can this tube filling machine handle?

It is suitable for cream, ointment, gel, lotion, cleanser and other compatible semi-liquid or paste products packed in plastic soft tubes.

2. What type of tubes can the machine seal?

The machine is mainly intended for compatible plastic soft tubes using ultrasonic sealing.

Tube material should be confirmed before ordering.

3. What is the filling range?

The supplied configuration supports approximately 20–300ml customized filling volume.

4. What is the production speed?

Reference output is approximately 15–25 tubes per minute.

Actual speed depends on tube size, filling volume and product viscosity.

5. How many filling nozzles does the machine have?

The shown configuration uses 1 filling nozzle.
