Specifications
MOQ :
1 SET
keyword :
hand cream tube filling sealing machine
Brand Name :
COSMATI
Packaging Details :
wooden cases
Filling nozzle :
4/6/8/10/12
Advantage :
ultrasonic sealing system
Model Number :
CM-TFS-01
Certification :
CE
Payment Terms :
TT
Material :
304+SS316L
Capacity :
20-30tubes/min.
Voltage :
220V
Place of Origin :
GUANGZHOU,CHINA
Weight :
380KG
Structure :
Rotary
Price :
1000-100000 USD
Function :
filling+sealing+cutting+recycling
Keyword 2 :
soft tube filling and sealing machine
Delivery Time :
7 work days
Product name :
Automatic plastic tube filling and sealing machine
Dimension :
L900*W1100*H1600mm
Filling range :
10-250ml can be customized
Supply Ability :
10000 set
Description

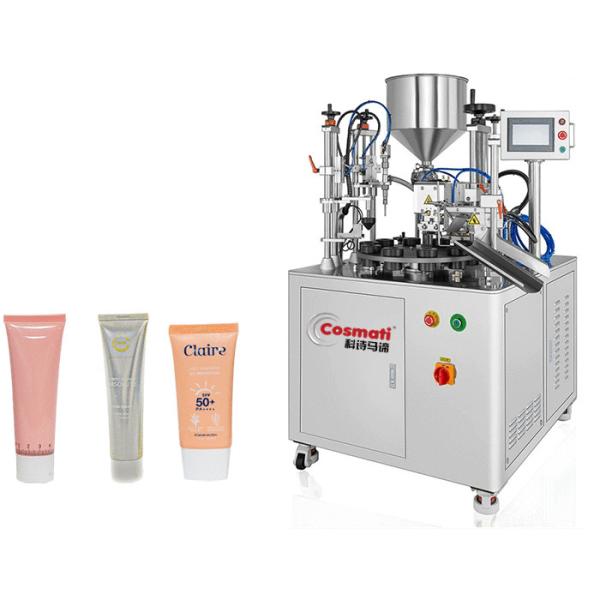

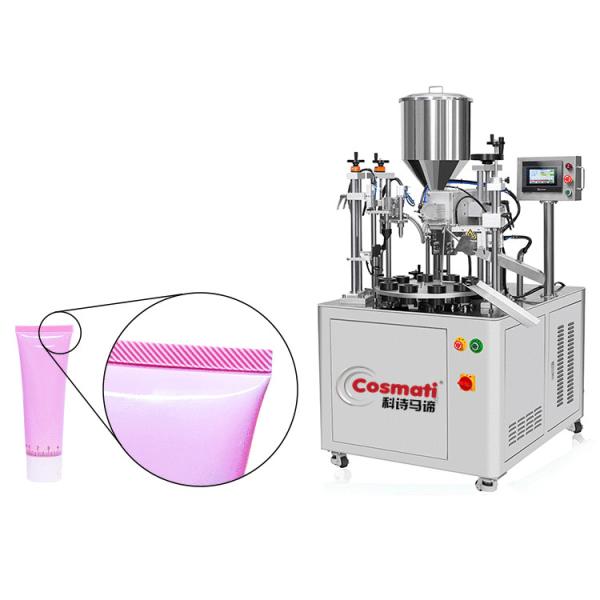

Semi automatic soft tube filling and ultrasonic sealing machine for cosmetic cream

Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Introduction
The soft tube filling and sealing machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic filling and sealing, color coding, date printing, trimming and tube outlet, and is widely used in daily chemical, pharmaceutical and food industries.

Description
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Features

1. This machine manually completes a series of actions such as dropping the tube,automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
2. This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;
3. Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.

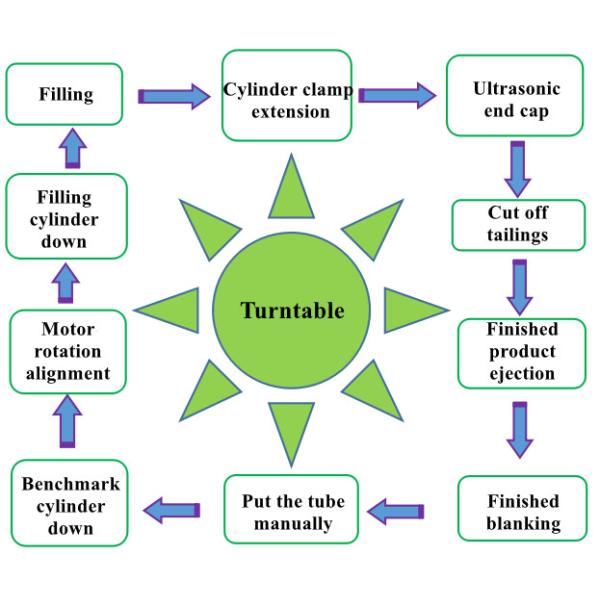

Flow

1. Automatic drop pipe: the plastic tube is placed in the collection tank, and the opening is placed outward. The tubes are
controlled by the swing mechanism to enter the drop tube channel one by one. The drop tube mechanism swings back and forth 90° to place the hose into the tube seat below to complete the drop tube action.
2. Automatic alignment: the turntable drives the hose to the alignment station, and the photoelectric switch is used to identify the alignment mark on the hose, so that all the hoses face the same direction.
3. Automatic filling: The filling part consists of filling head, material tank and other parts. The piston is driven by the pneumatic element to squeeze the material and pour the material into the lower hose. The filling volume can be controlled by controlling the extrusion time, from 20g to 250g.
4. Ultrasonic sealing: The plastic molecules are oscillated by ultrasonic waves and fused with each other to achieve the purpose of sealing, which can be sealed under different conditions.

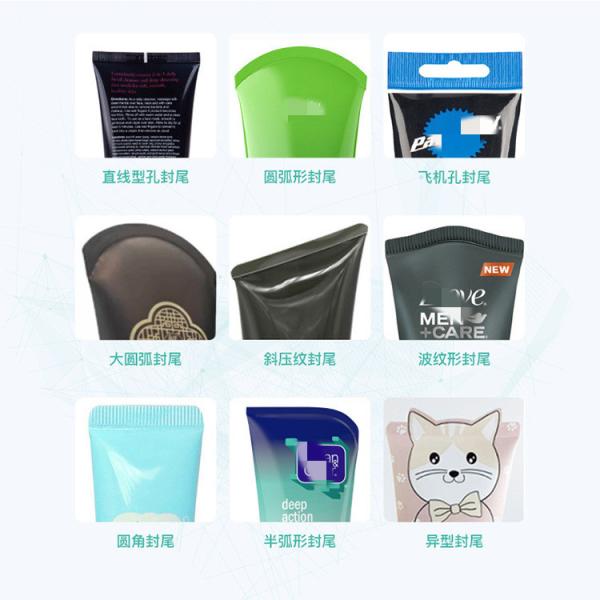

5. Removal of waste edges: automatic edge trimming, cutting off excess waste edges at the tail of the hose after sealing, making the tail smoother, and can cut out a variety of tails of different shapes or lines to meet the design requirements.

Technical parameter
Capacity
Dimension(mm)
Power supply
Sealing diameter
Filling accuracy
20-25 tubes/min.
L900*W1100*H1600mm
220v/380v, 2.6KW
16-50mm
±1%
Filling range
Weight
Hopper volume
Sealing height
Body material
6-60ml/10-120ml/
25-250ml(Optional)
380KG
40L
50-250mm
SUS304

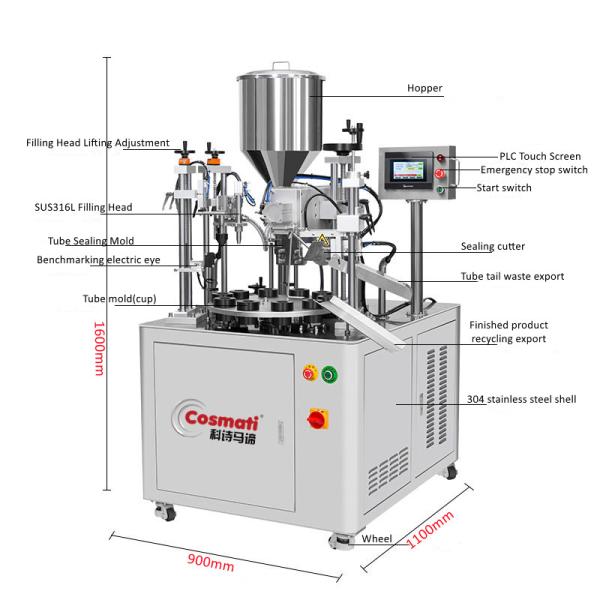

Structure

Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic CreamUltrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

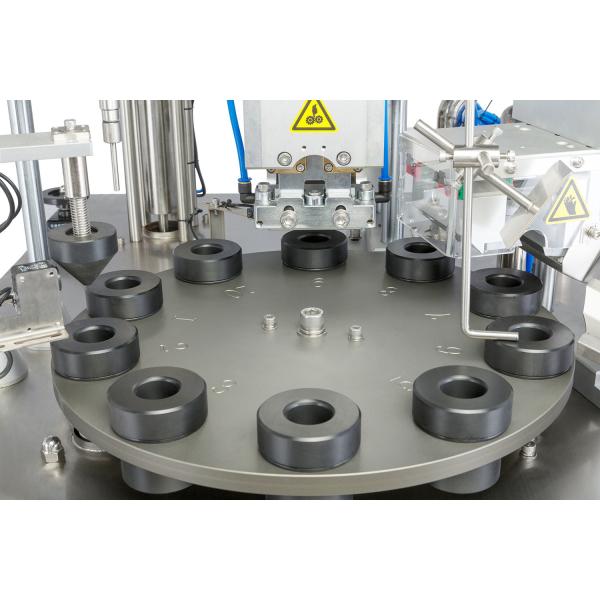

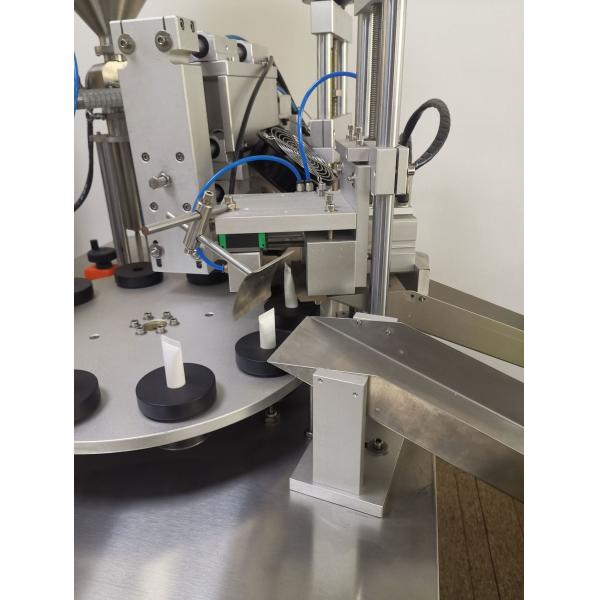

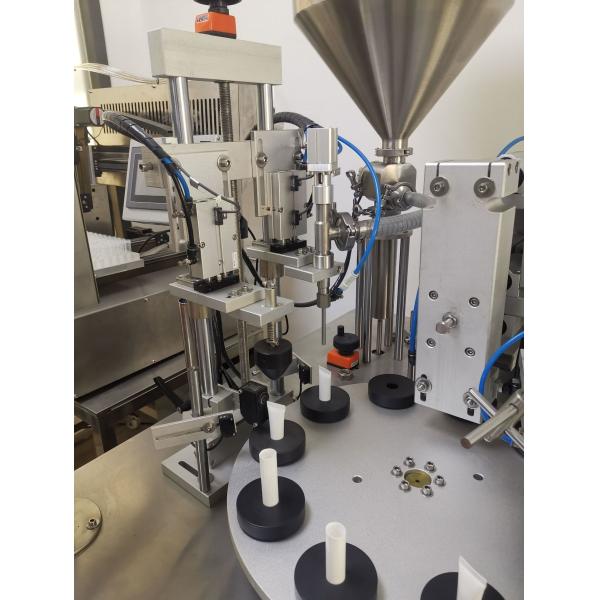

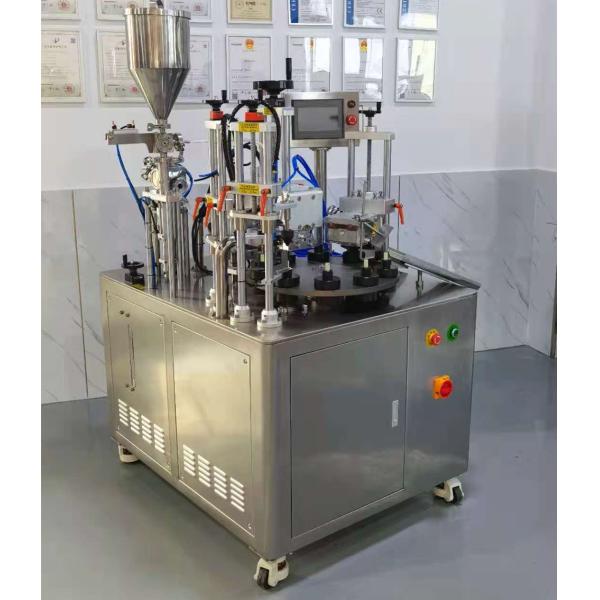

Detailed pictures


Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream


Application

Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic CreamUltrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Factory profile
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream
Engineer case
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

Trade show participation
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream
Packaging & shipping specifications
Ultrasonic Soft Tube Filling Sealing Machine Semi Automatic for Cosmetic Cream

FAQ

1. What is the advantage of ultrasonic tube sealing?
Ultrasonic sealing provides localized sealing without requiring the entire tube to be heated, making it suitable for many compatible plastic tube materials.

2. Can the machine fill and seal in one process?
Yes. According to the supplied specification, the machine integrates filling, sealing and cutting functions in one production process.

3. Can it trim the tube tail after sealing?
Yes. The machine includes a cutting/finishing process for the sealed tube tail according to the selected configuration.

4. Does the machine have a rotary working structure?
Yes. The supplied specification identifies the machine as a rotary structure, allowing tubes to move through different processing stations.

5. Can it process different tube diameters?
Yes. Different tube holders and related tooling can be changed or customized according to different compatible tube diameters.
