Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Specifications
packaging type :
Bottles, Other
Weight (KG) :
1000
Filling nozzles :
2 vacuum filling nozzles+1 vacuum suction nozzle
Packaging Details :
wooden cases
Voltage :
110 V, 220 V
video outgoing-inspection :
Provided
packaging material :
Plastic, Glass, Other
Control :
PLC+ Touch Screen
Place of Origin :
Guangdong, China
Production Capacity :
20-40 bottles/min
MOQ :
1
driven type :
Electric
key selling points :
High Productivity
After-sales Service Provided :
Video Technical Support, Field installation, commissioning and training, Online support, Field Maintenance and Repair Service, Free Spare Parts
Bottle type :
PET Plastic Bottle, Glass Bottle
Supply Ability :
10000 set
dimension(l*w*h) :
L1250 * W999 * H1760 mm
machinery test report :
Provided
filling nozzle :
2, 4
Brand Name :
Cosmati
core components :
Motor, Pressure Vessel, Pump, PLC, Engine, Other
Conveyor :
1260mm
automatic grade :
Automatic
Keywords :
rotary perfume filling machine
Delivery Time :
7 work days
Payment Terms :
TT
warranty :
1 Year
filling accuracy :
±1%
Price :
$4,000-5,000
application :
Commodity, Chemical, Cosmetic
Filling Volume :
200mL, 100mL
filling material :
Water, Oil, Other, perfume
Product name :
rotary perfume filling machine perfume filling line
Main functions :
Cleaning+Filling+Crimping+Collaring
Mold :
20 pcs
Material :
Stainless Steel 304/316L
Description

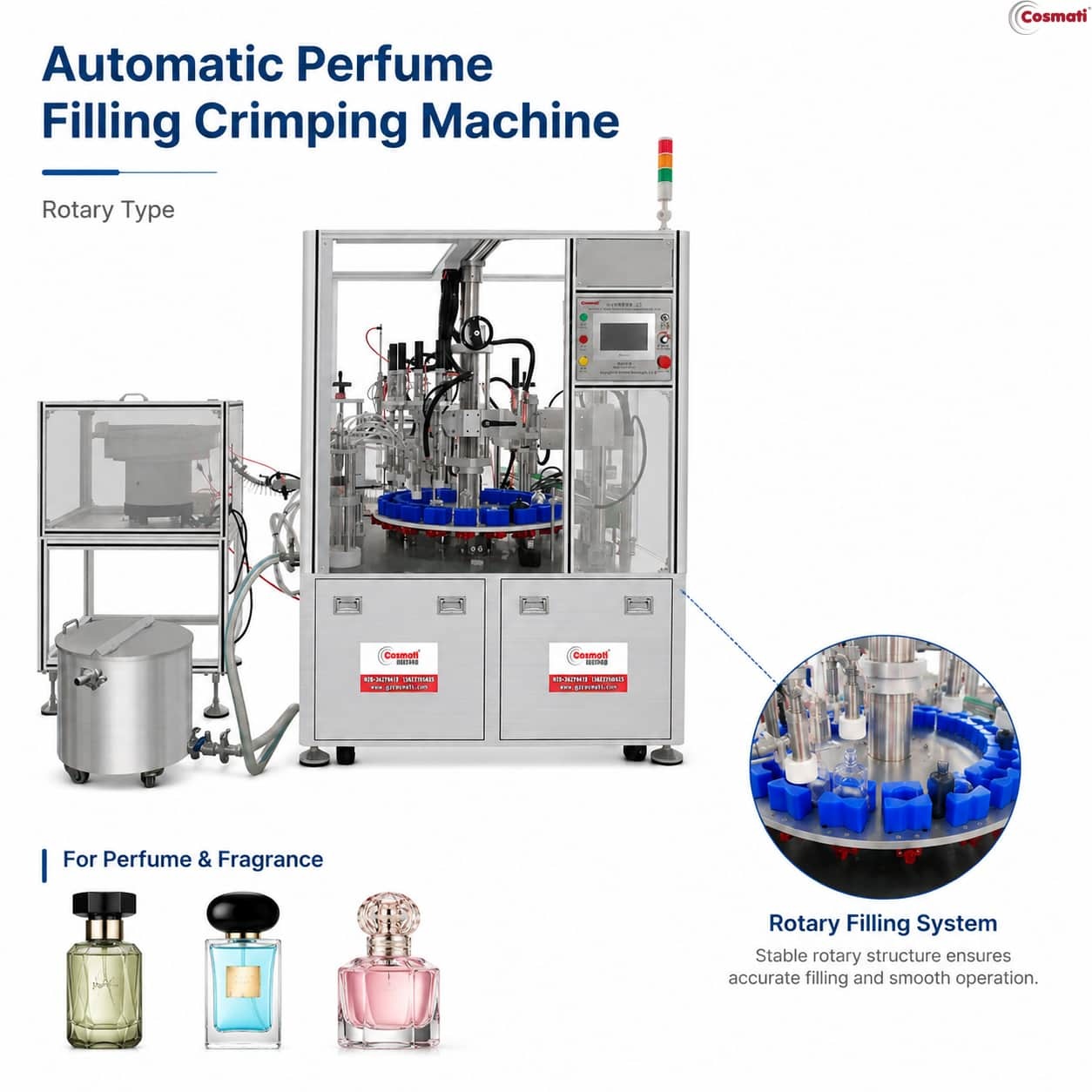

COSMATI Rotary Fully Automatic 5-in-1 Perfume Bottle Cleaning Filling Crimping Collaring Collecting Machine

Introduction

This machine can be used for toilet water, perfume, toner and other water-based materials. It adopts piston filling and negative pressure filling methods. The filling of the product is measured by the height of the liquid level, the filling quantity is accurate, the filling parts are easy to disassemble and assemble, and the adjustment is convenient.

Features

1.It is suitable for any spray pump bottle. Just need to adjust the model when the product is replaced;
2.The whole machine is made of sanitary grade stainless steel. It’s clean and hygienic.
3.This machine uses programming control (PLC) human machine interface (HMI) technology.
4.It is integrates with imported photoelectric tracking switch,motor and pneumatic.Reasonable design, good stability, accurate quantitative, manual bottle placement, stable operation and convenient washing and dismounting make this automatic machine to be your best choice.
Capacity
960-1920 BPH
Filling range
10-300ml can be customized
Filling accuracy
±1%
Applicable Bottle Height
20-300mm
Air Source
5-6kgf/cm2
Dimension
L1250 *W1000 * H1760 mm
Filling nozzles
2 PCS filling nozzles + 1 PC vacuum suction nozzle
Voltage
1P/220V/50Hz, 2.5KW
Weight
1000KGS
Adjustable mold
20 PCS
Machine cover material
SUS304
Conveyor length
1260mm
Air cylinder
Japan SMC
PLC and Touch Screen
Germany
Fiber
Japan KEYENCE

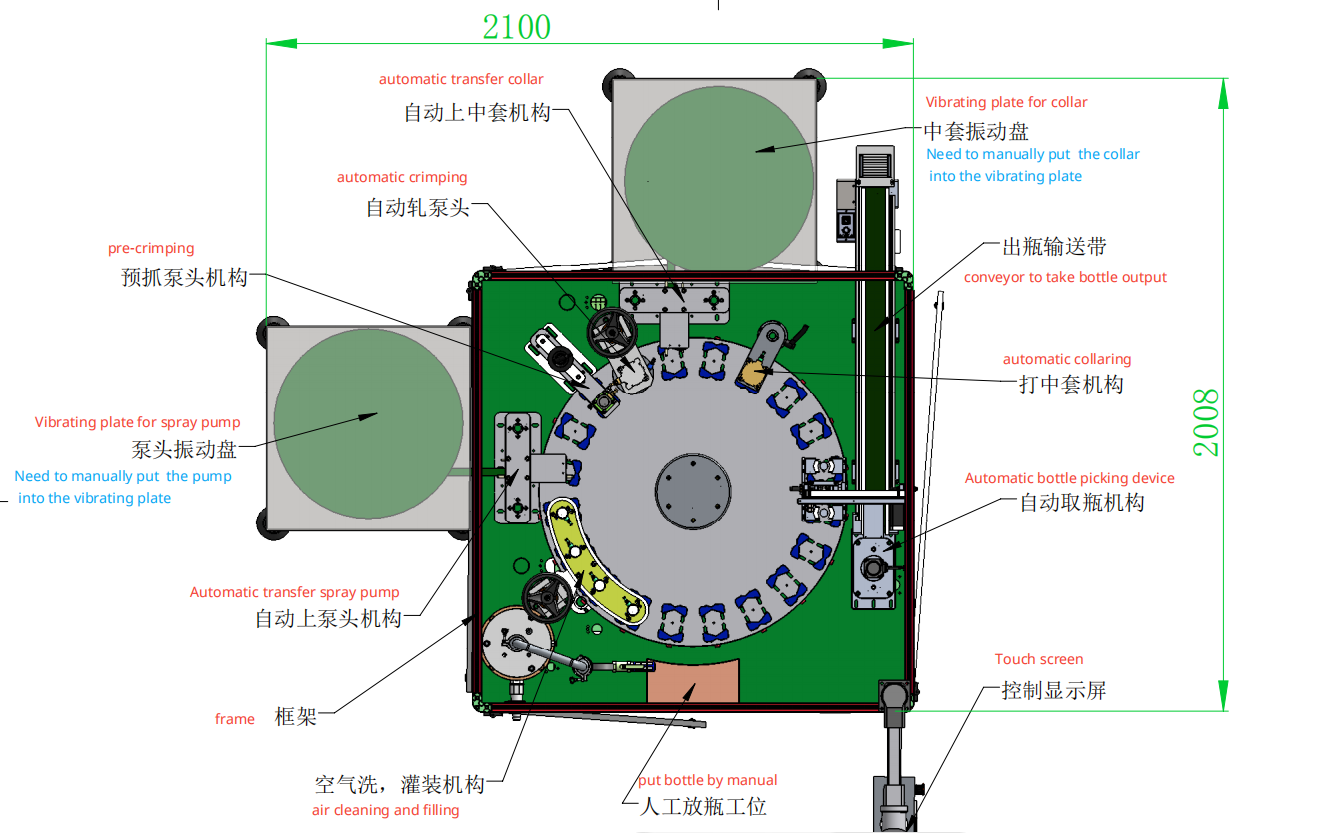

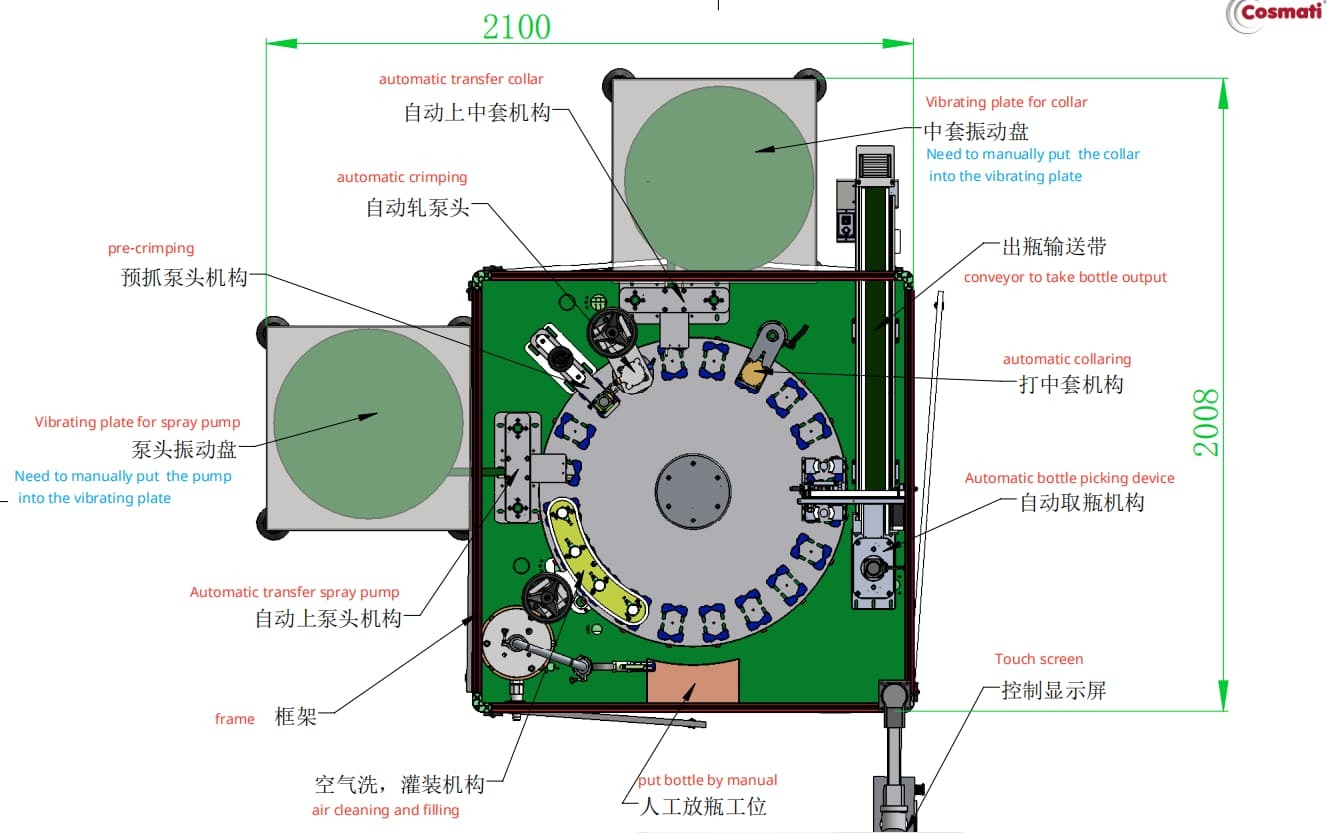

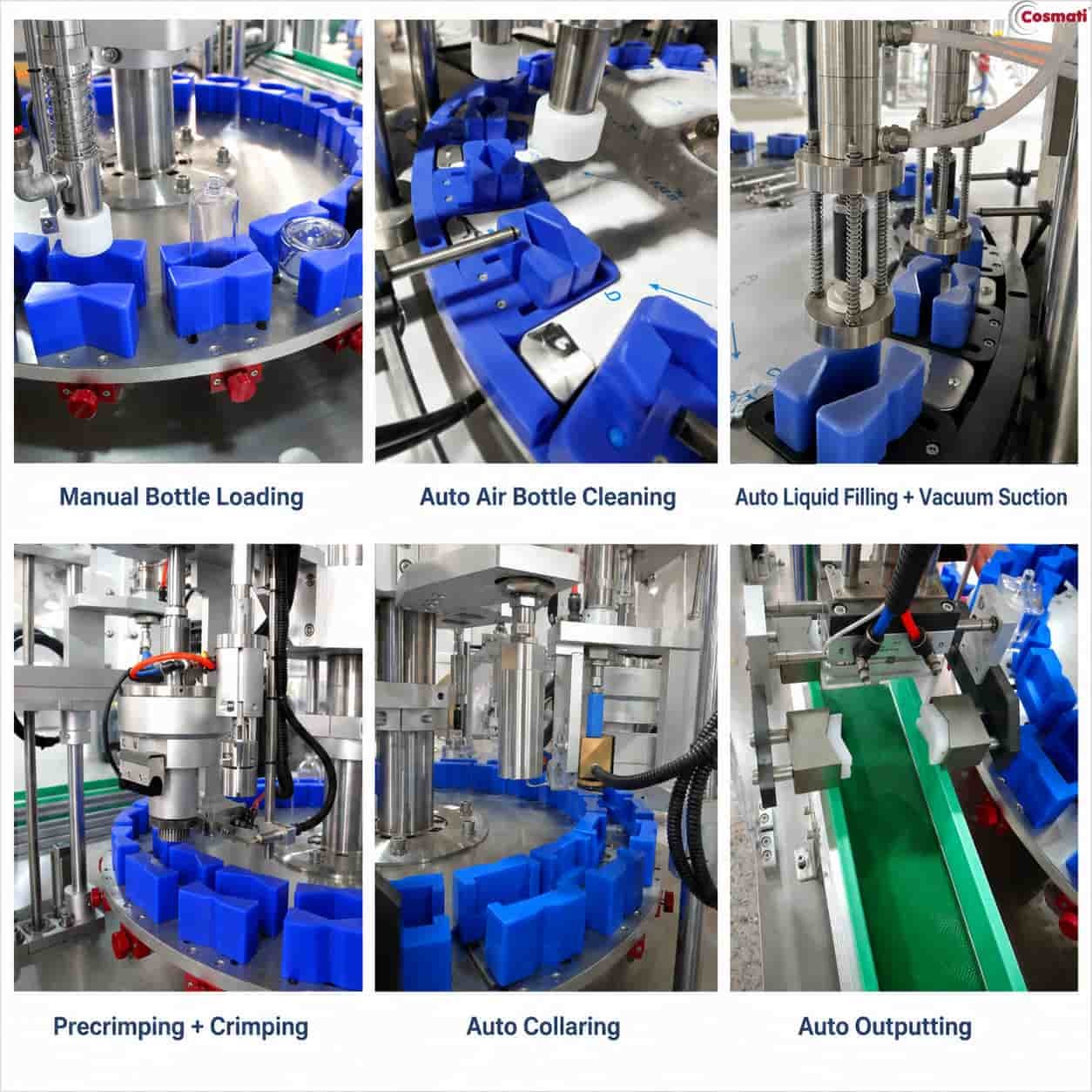

Process Flow

①Manually put the perfume bottle→②Auto Air cleaning→③Auto liquid vacuum filling→④Manual put the spray pump→⑤Pre-crimping+Auto crimping→⑥Manual put the collar→⑦Auto collaring(pressing cap)→⑧Automatic outputting
Details Images
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line

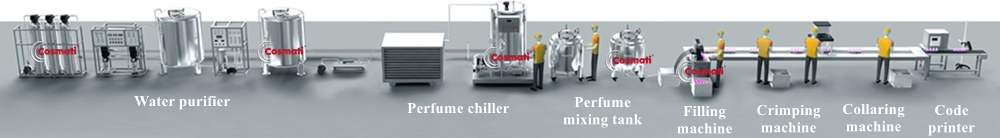

Perfume Production Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Raw Water Tank-Water Treatment Equipment-Pure Water Tank-Perfume Chiller-Perfume Storage Tank-Bottle Washer-Perfume Filling Machine-Perfume Crimping Machine-Perfume Collaring Machine-Labeling Machine-Inkjet Printer

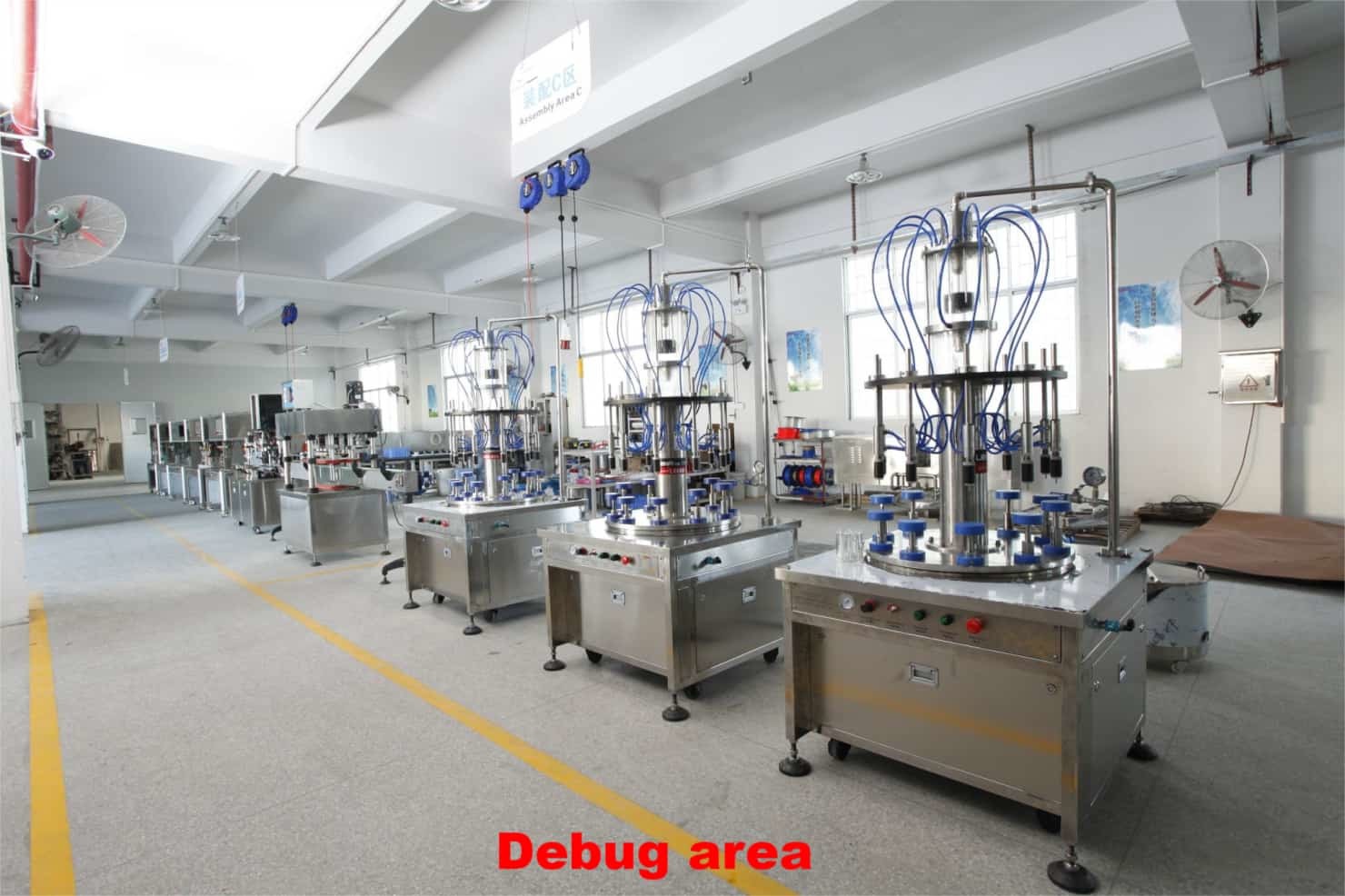

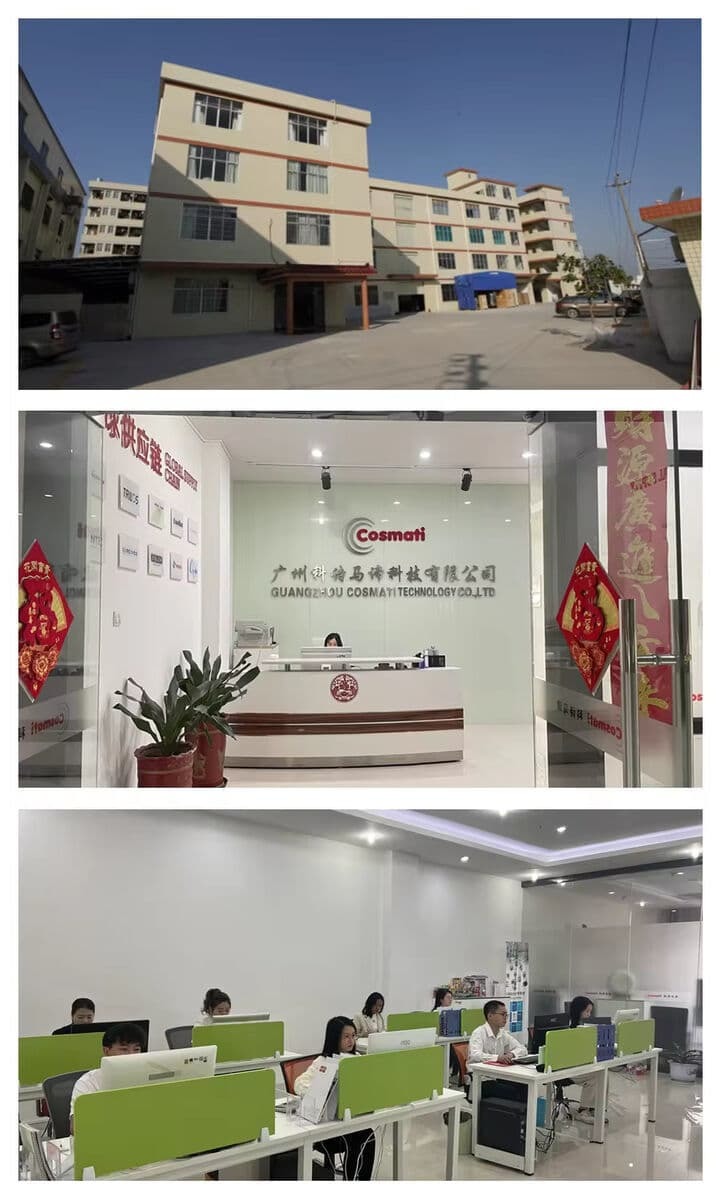

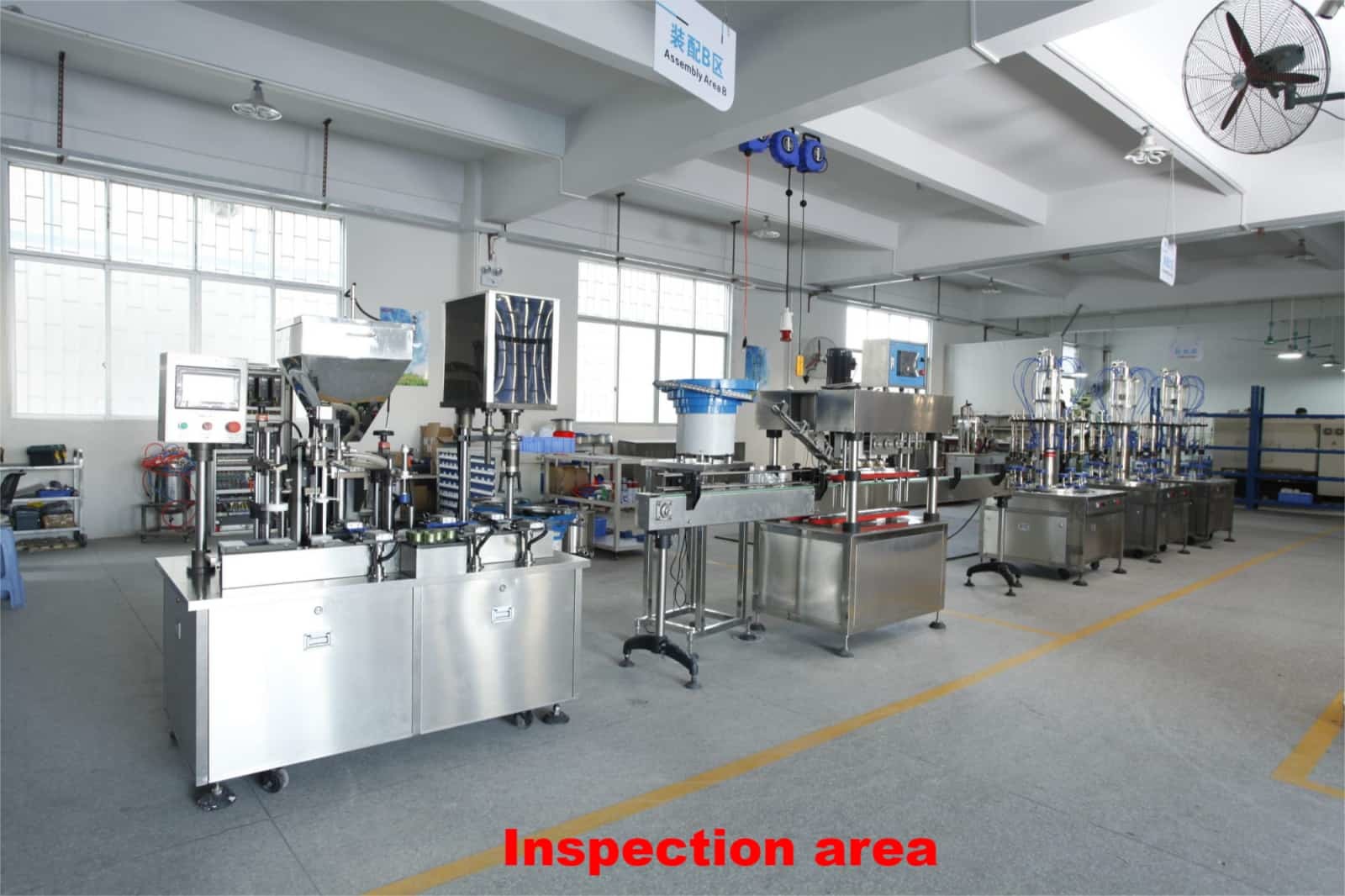

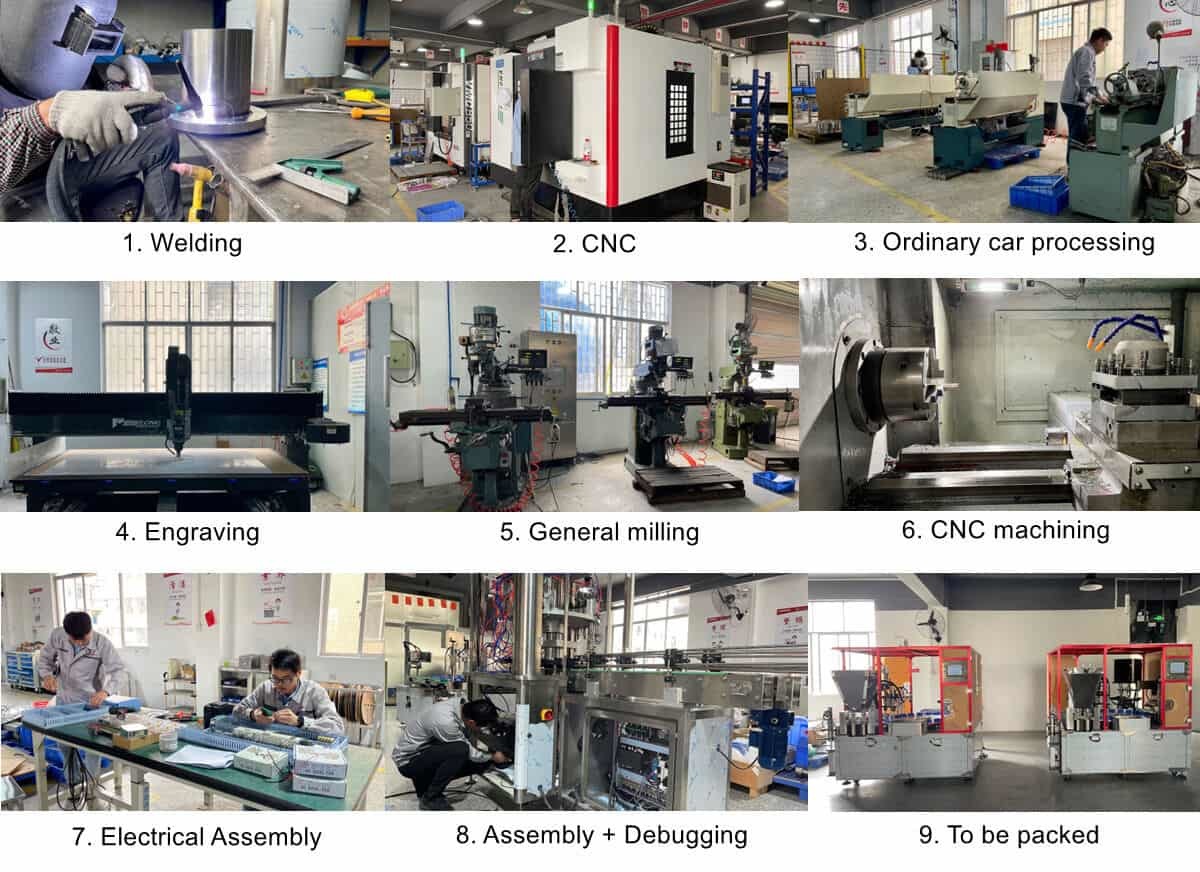

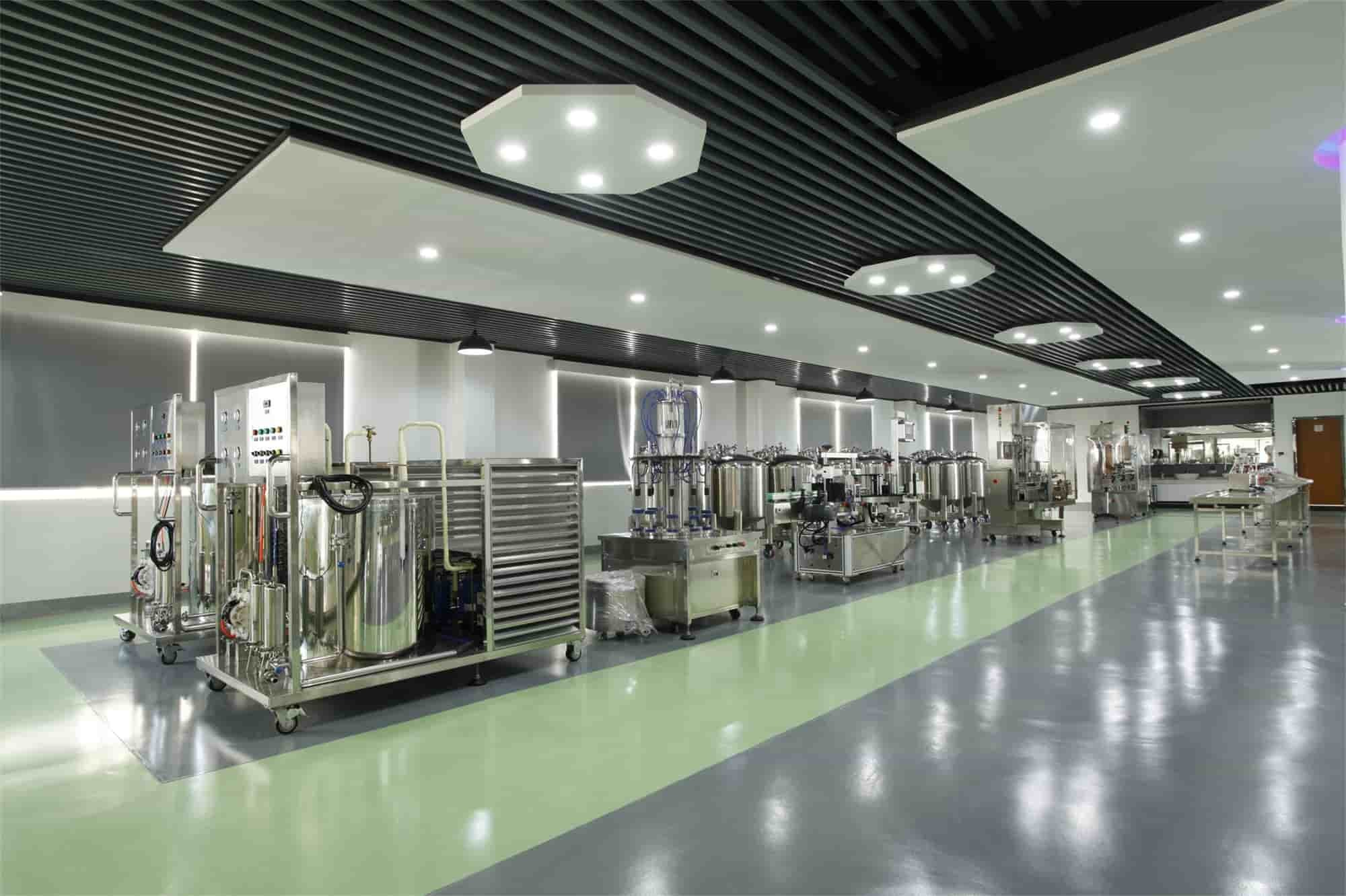

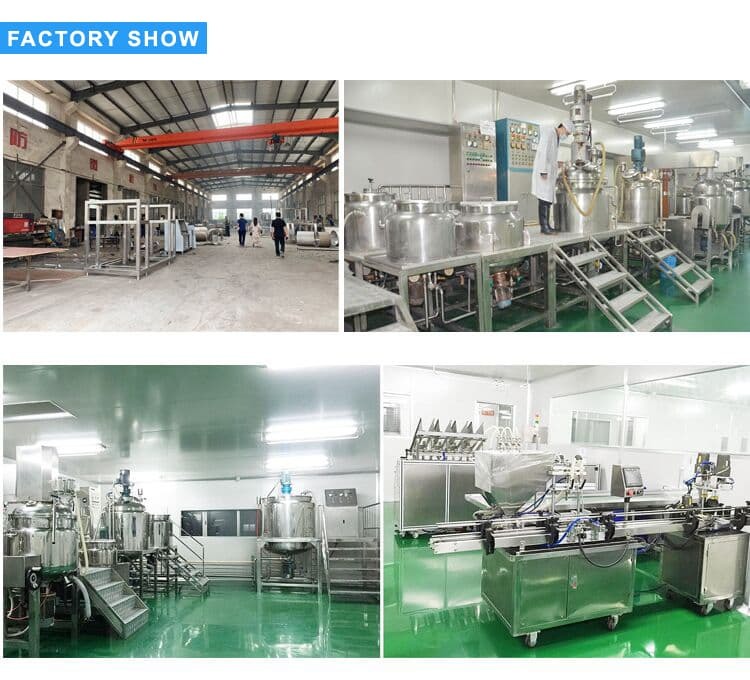

Company Profile
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line


Trade show participation
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line
Packaging & shipping specifications
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line

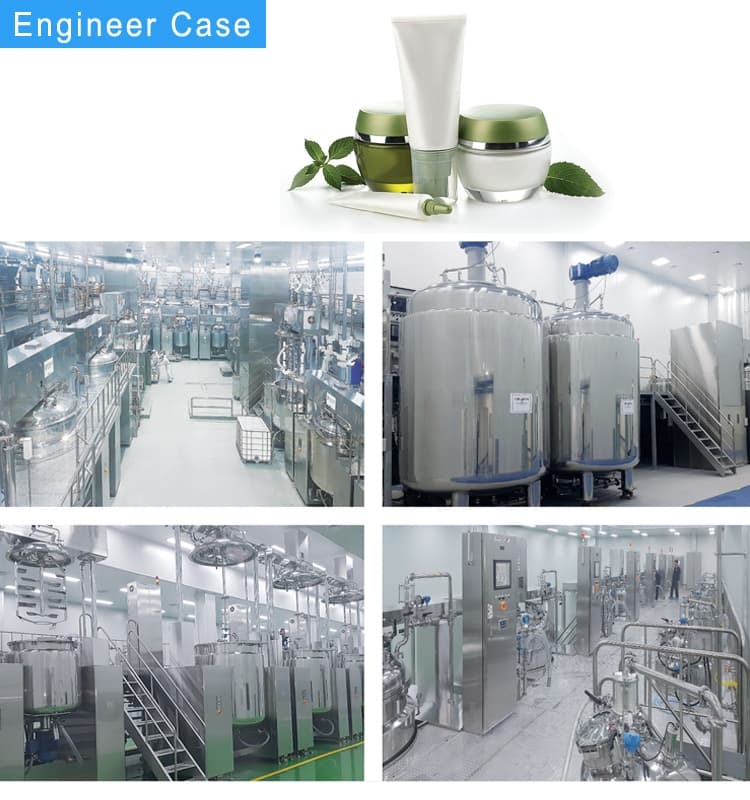

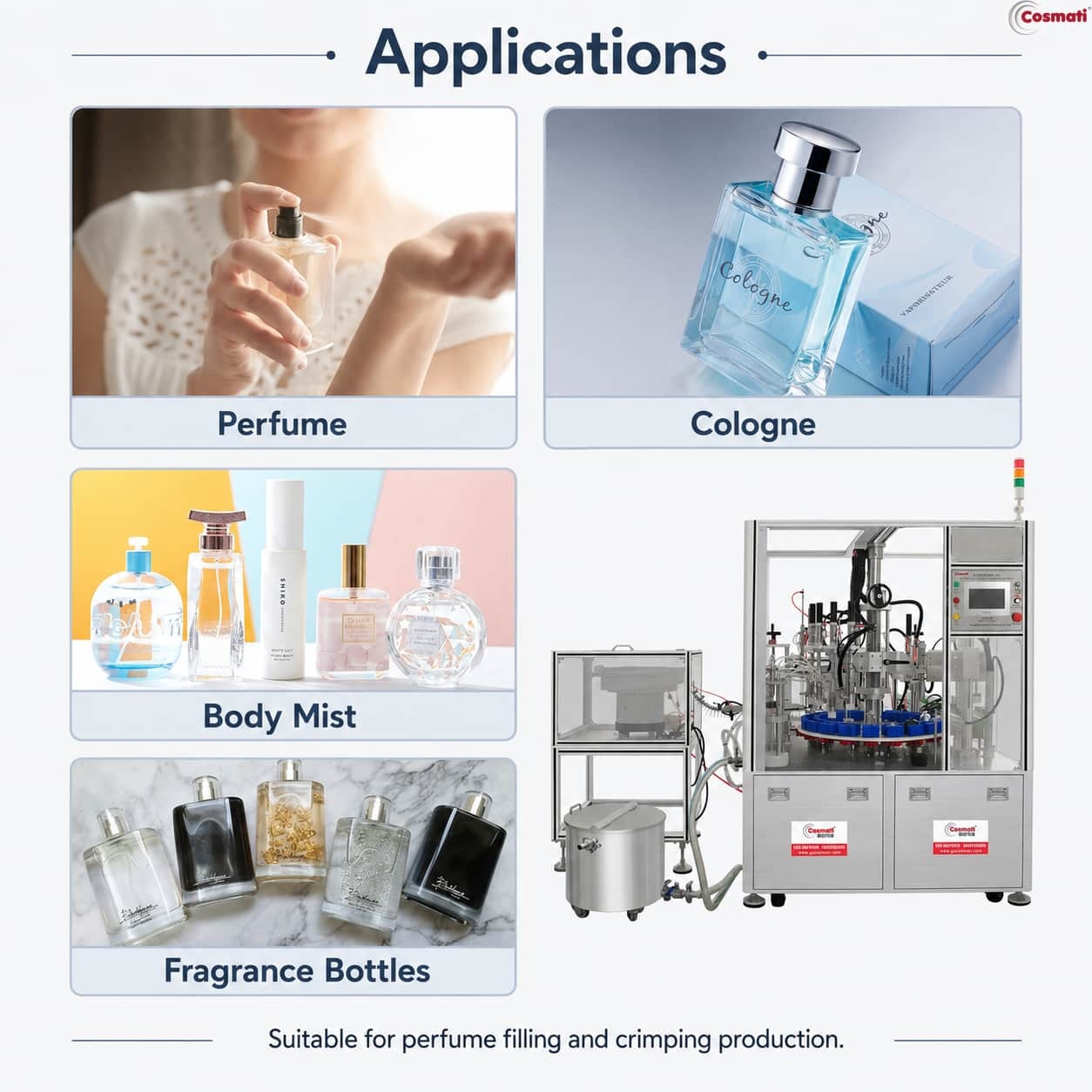

Application
Rotary Automatic Perfume Filling Machine Bottle Cleaning Crimping Capping Line

FAQ

1. What products can this perfume filling machine fill?

The machine is mainly designed for perfume, fragrance, essential oil and other low-viscosity liquid products.

2. Is this machine fully automatic?

Yes. The machine adopts a fully automatic rotary operation system, including cleaning, filling, crimping, collaring and collecting functions.

3. What filling volume can the machine handle?

The standard filling volumes are 100ml and 200ml. Other filling ranges can be customized according to customer requirements.

4. What is the filling accuracy?

The filling accuracy can reach ±1%, depending on the liquid characteristics and machine configuration.

5. How many filling nozzles does the machine have?

The machine can be configured with 2 or 4 filling nozzles according to production capacity requirements.
