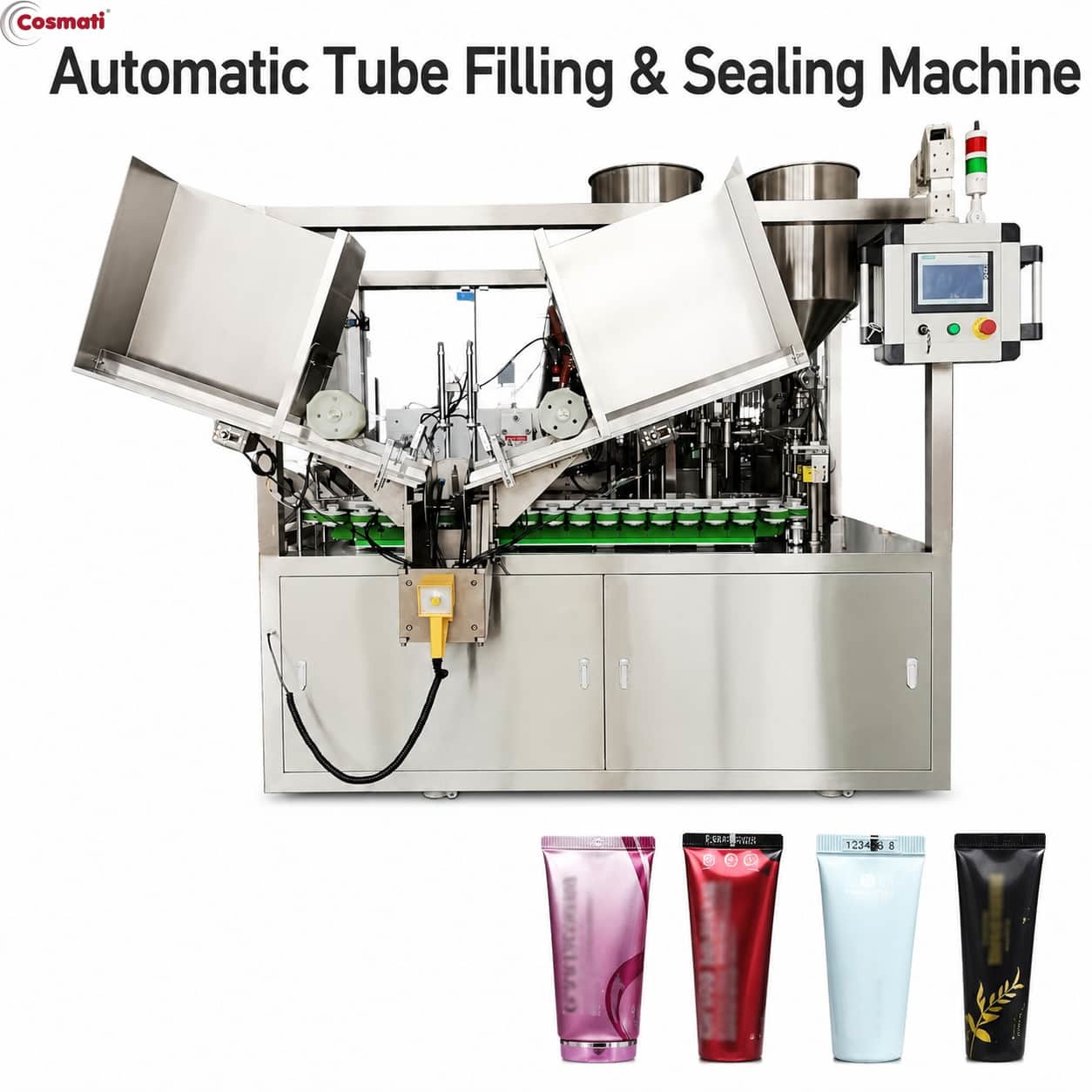

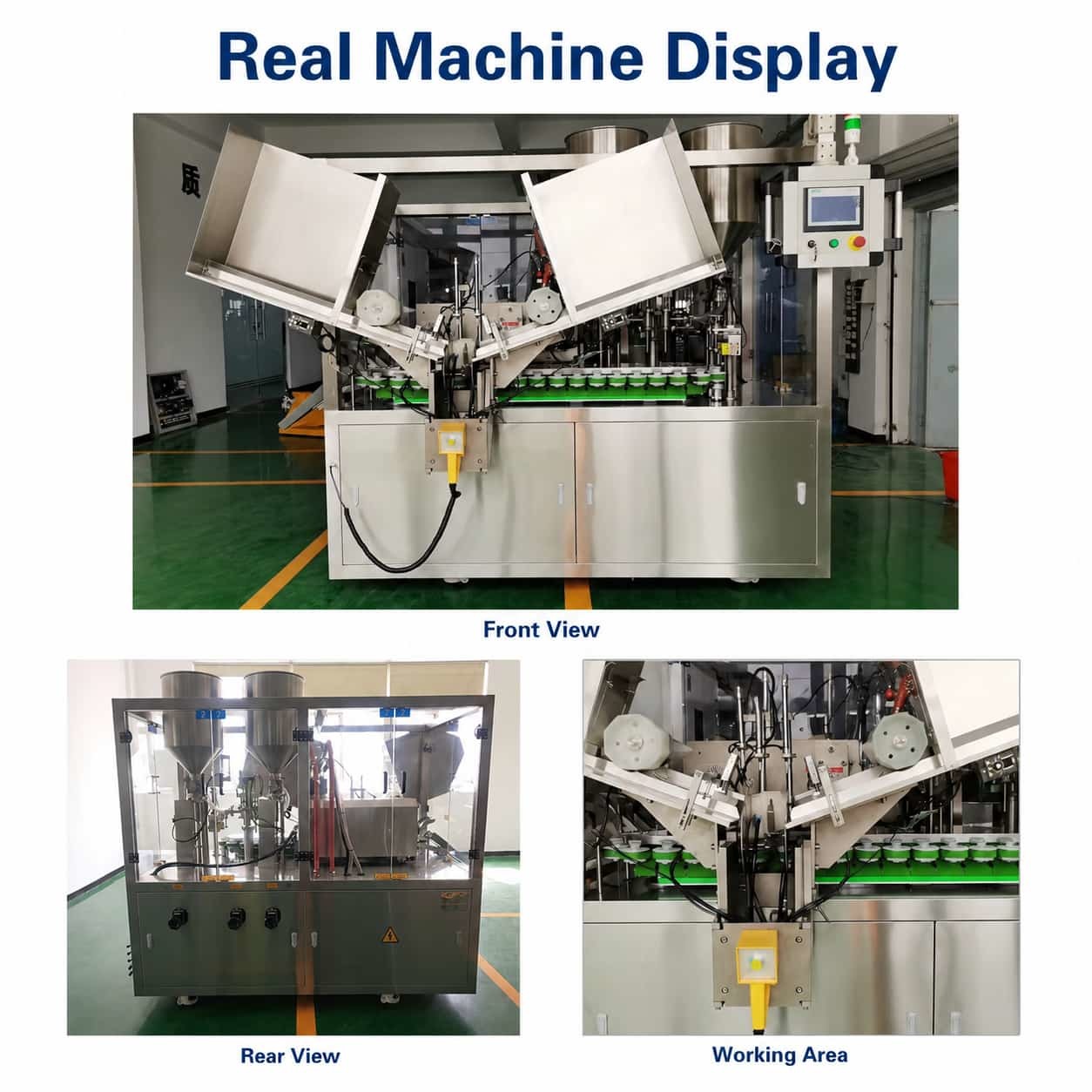

Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Specifications
driven type :
Mechanical
key selling points :
High Productivity
After-sales Service Provided :
Video Technical Support, Online support
Air Pressure :
0.4-0.6MPa
Price :
$3,500-5,000
dimension(l*w*h) :
L3100*W1280*H1780(mm)
machinery test report :
Provided
filling nozzle :
2, 6, 4
packaging type :
Tube
Weight (KG) :
2100
Structure :
Rotary
core components :
Motor, PLC, Engine
Filling nozzles :
2/4/6/8/10/12(customized)
Supply Ability :
10000 set
Brand Name :
Cosmati
packaging material :
Plastic
Material :
316L+304 Stainless Steel
Driven Type :
servo motor drive
Voltage :
220V/380V
video outgoing-inspection :
Provided
Delivery Time :
7 work days
Payment Terms :
TT
automatic grade :
Automatic
Keywords :
aluminum tube filling and crimping machine
Place of Origin :
Guangdong, China
warranty :
1 Year
filling accuracy :
±0.1%
Product name :
fully automatic aluminum tube filling and sealing machine
application :
Chemical
Filling Volume :
200mL, 100mL, 10-100, 30-300, 50-500ml
Packaging Details :
wooden cases
MOQ :
1
filling material :
Water, Oil, Powder, Paste, Ketchup, Peanut Butter, JAM, Shampoo, Other
Filling Range :
10-100ml(Can be customized)
Capacity :
80-110PCS/Min
Description
Fully Automatic Double Heads Aluminium Tube Filling Crimping and Cartoning Machine Ointment Gel Tube Filling and Sealing Machine

Introduction

  1. It adopts fully automatic double-station type, adopts foreign advanced transmission technology and designs a unique main transmission system in combination with domestic actual conditions. The cam is forged steel to ensure its durability;
  2. Adopt the world's most advanced synchronous belt conveying tube cup, encoder PLC communication programming, touch screen operation, rely on new technologies such as cams and pneumatic components to control mechanical actions, and rely on frequency converter for speed regulation, which can ensure high-speed, stable and reliable operation of the machine performance, making the filling more accurate. In order to meet the requirements of GMP, wear-resistant sliding bearings are used above the working table, without refueling and reducing pollution;
  3. In order to make the machine run at high speed, the synchronous belt is used for step-by-step conveying;
  4. The whole machine has advanced structure and advanced configuration, and is equipped with Chinese display of automatic fault alarm, which has the characteristics of convenient operation, maintenance and cleaning.
  5. It can be used as a stand-alone machine, or it can be combined with this automatic cartoning machine and automatic heat shrinkable film machine to form a production linkage line for linkage production.
Flow
Automatic tube feeding - automatic tube pressing - automatic marking - automatic filling - automatic tube folding and sealing (3 fold/4 fold) - finished product.
Detail
Capacity
Dimension(cm)
Power supply
Sealing diameter
Filling accuracy
80-110 tubes/min.
L255×W142×H212
380V/3P, 2.6KW
13-35mm
±1%
Filling range
Weight
Control
Sealing height
Material used
3-250ml
(Customized)

2200KG
Servo Motor Drive
80-180mm
SS316L(Contacted p[art)+SUS304

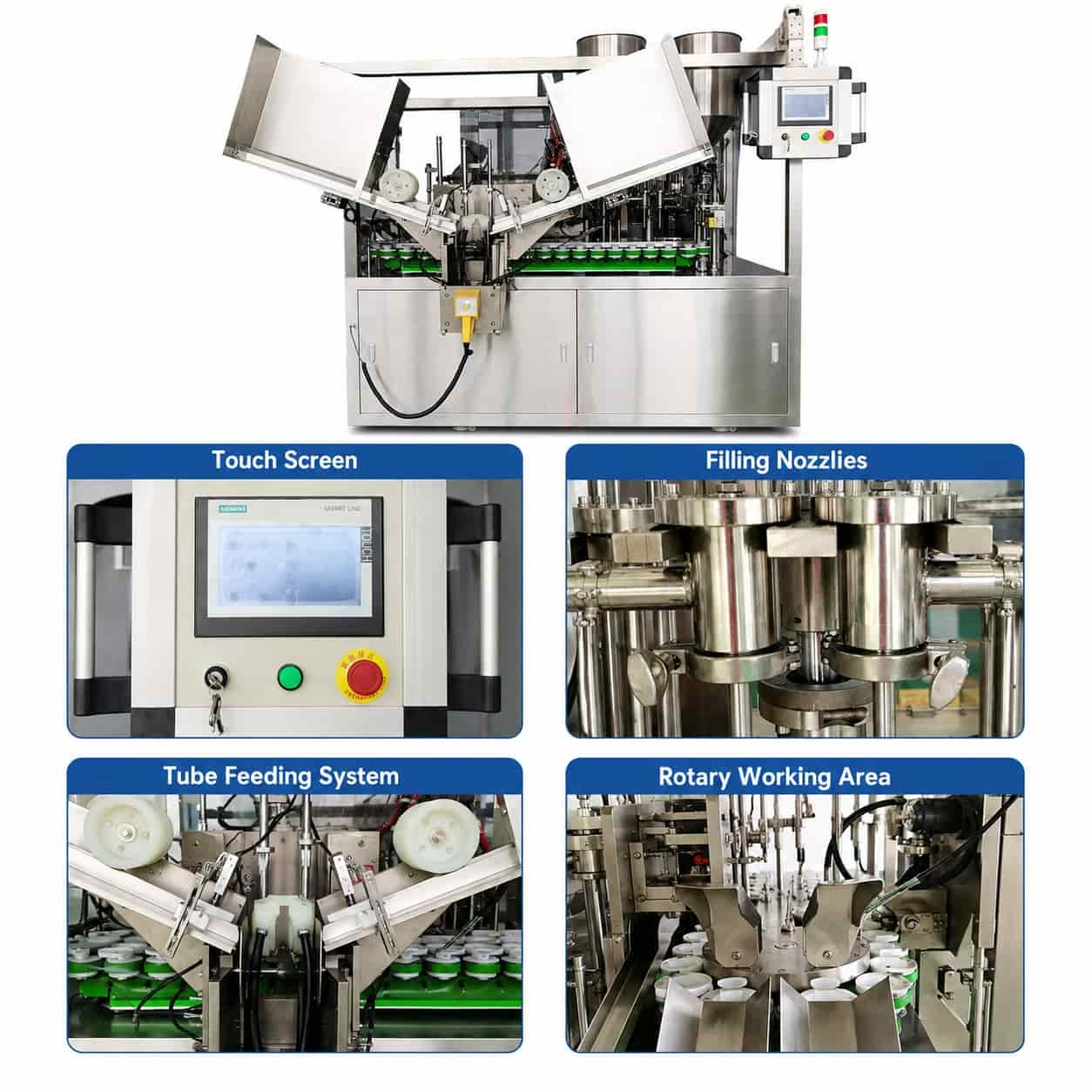

Double down tube feeding system
drum type down tube, avoiding the stuck tube phenomenon that occurs when the old-fashioned stainless
steel bead is pressed
Special design
Increase the lifting pressure block to ensure that the cup holder will not be tilted by the ejector rod when the tube is discharged, thus affecting the discharge of the pipe.
Filling Nozzles
Filling form: valve body plunger structure
Two sets of independent’ no-tube no-filling mechanism’ double guarantee
Benchmarking stations
Adopts BANNER brand from the USA
PLC & Touch Screen
The swing arm touch screen can be moved to operate, PLC adopts German brand
Application
Suitable for ointment, toothpaste, hand cream, glue, etc.

Factory profile
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel

Engineer case
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel

Trade show participation
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Packaging & shipping specifications
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel
Application
Automatic Double Head Aluminium Tube Filling Sealing Cartoning Machine for Ointment Gel

FAQ

Q1: What products can this aluminium tube filling and sealing machine handle?
A: It is suitable for ointment, gel, cream, adhesive paste and other paste or semi-viscous products packed in aluminium tubes.

Q2: What type of tubes can the machine process?
A: This model is mainly designed for aluminium tubes. Tube diameter, length and tail structure should be confirmed before production.

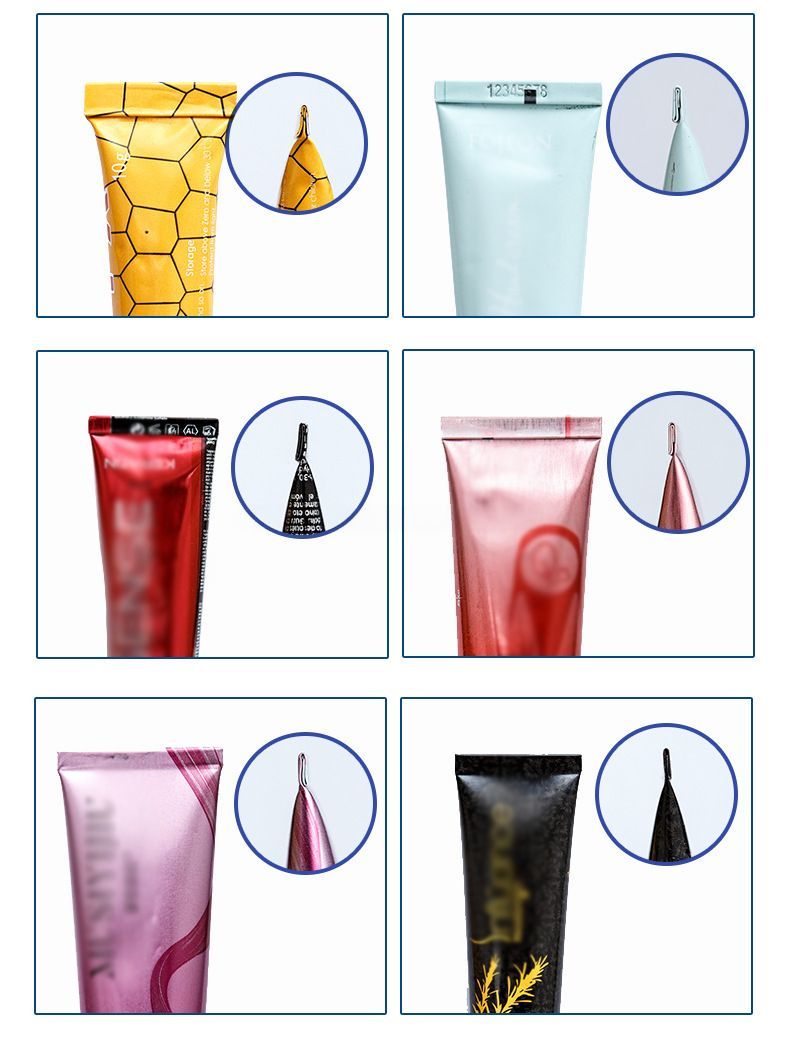

Q3: How does the machine seal aluminium tubes?
A: The aluminium tube tail is mechanically folded and crimped after filling to create a secure and neat seal.

Q4: What filling volume range is available?
A: Different filling ranges such as 10–100 mL, 30–300 mL and 50–500 mL can be configured according to the required product and tube size.

Q5: How many filling heads are available?
A: The current product is designed as a double-head model. Other nozzle configurations can be discussed according to production capacity requirements.
