Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Specifications
keyword :
plastic tube filler and sealer
Brand Name :
COSMATI
Material :
304+SS316L
MOQ :
1 SET
Packaging Details :
wooden cases
Filling nozzle :
4/6/8/10/12
Delivery Time :
7 work days
Function :
filling+sealing+cutting+recycling
Keyword 2 :
soft tube filling and sealing machine
Model Number :
CM-TFS
Product name :
Automatic soft tube filling and sealing machine
Dimension :
L1940*W1280*H1780(mm)
Certification :
CE
Capacity :
30-50tubes/min.
Voltage :
380V/220V
Price :
1000-100000 USD
Weight :
750KG
Payment Terms :
TT
Supply Ability :
10000 set
Filling range :
10-300ml can be customized
Place of Origin :
GUANGZHOU,CHINA
Description

Automatic lotion cream toothpaste soft tube filling and sealing machine with automatic tube feeder

Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder​​​

Introduction
The automatic tube filler sealer is widely used in toothpaste, cosmetic, pharmaceutical and food industries.
This equipment has a high degree of automation, automatic tube loading, automatic color marking, automatic tail sealing, batch number printing, and automatic tube discharge. Using the internal heating method, use the Swiss-made "LEISTER" air heater to blow hot air from the inner wall of the tube to melt the plastic.

Application
Suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair color cream, shoe polish and other products.

Features

1. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame can be seen inside the visible cover, which is easy to observe, operate and maintain;
2. Stainless steel operation panel, plexiglass protective cover and door protection function installed;
3. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the hose is inserted into the upper tube station;
4. Optoelectronic benchmarking station, using high-precision probes, stepper motors, etc. to control the hose pattern to be in the correct position;
5. No tube and no filling, after the injection is completed, the air blowing device blows off the tail of the paste; anti-drawing, anti-drip filling;
6. The waste cutting manipulator cuts the waste edge at the tail of the hose, and has special-shaped sealing such as right angle, R angle or arc;
7. Failure alarm, overload shutdown, water pressure protection, air pressure protection.

Technical parameter
Capacity
Dimension(mm)
Power supply
Sealing diameter
Filling accuracy
40-50 tubes/min.
L1700*W1000*H2000mm
220v/380v, 4.1KW(Total)
15-50mm
≤±1%
Filling range
Weight
Air consumption
Sealing height
Working pressure
5-250ml
750KG
more than 600L/min
50-220mm
0.60MPa

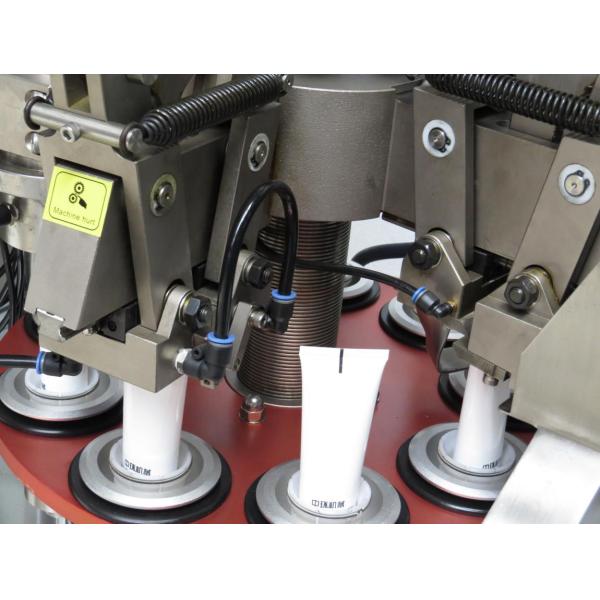

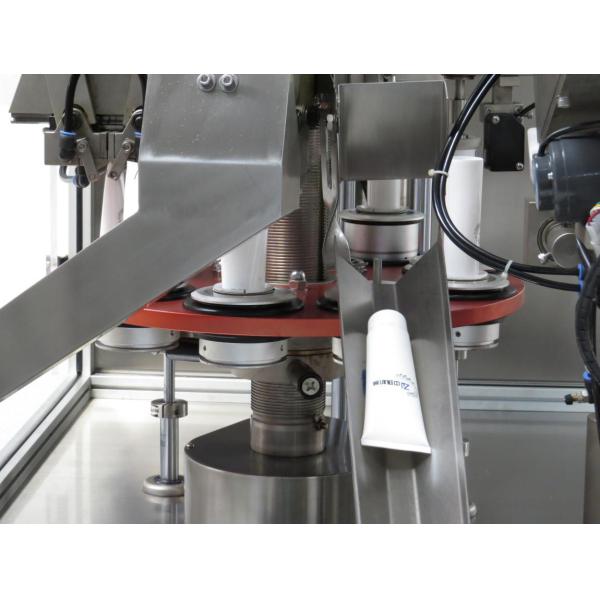

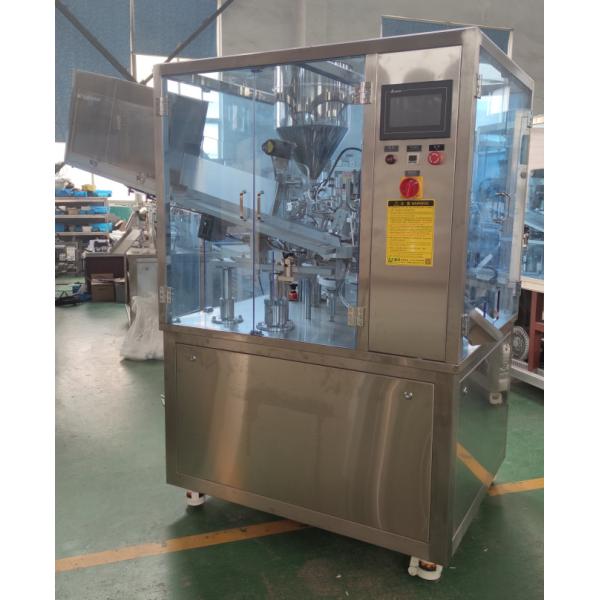

Details Images
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube FeederLotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube FeederLotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Factory profile
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Engineer case
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder

Trade show participation
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Packaging & shipping specifications
Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder

FAQ

1. Is this machine suitable for hand cream tubes?
Yes. Hand cream tube filling and sealing is one of the main applications of this machine.

2. Can it fill facial cleanser?
Yes. Compatible facial cleanser, cleansing cream and similar semi-viscous cosmetic products can be processed.

3. Can it fill lotion and cosmetic gel?
Yes. It can handle compatible lotion, gel and cream products when the filling system and nozzle are matched to the material viscosity.

4. What is the filling range?
According to the supplied specification, the filling range is approximately 10–300ml, and other ranges can be customized.

5. Can the filling volume be adjusted?
Yes. The filling quantity can be adjusted within the applicable range according to different tube capacities.
