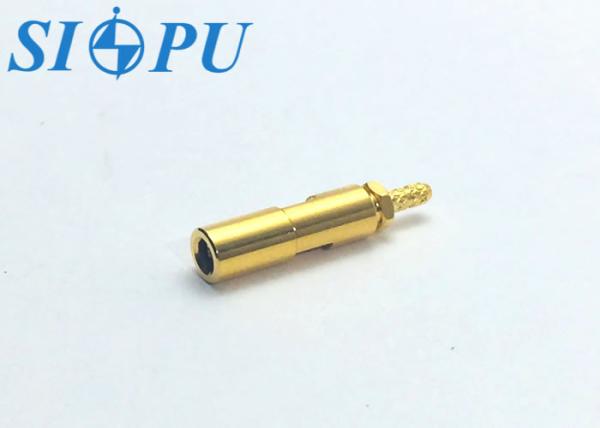

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
Specifications
Brand Name :
SIPU
Model Number :
SSMB-K2Y
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Carton
Supply Ability :
100000pcs/year
Delivery Time :
5-8week days
Product name :
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Durability :
500 times
Description

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.

Applications

Electronic instruments

Radio communication equipment

Compact RF modules and devices

Product Features

Push-in snap-lock design for quick and secure connection

Compatible with RG178/U coaxial cable

Small size and lightweight

High connection reliability and ease of use

Good resistance to vibration and mechanical stress

Product Specifications

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.5

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

Product Image Gallery

SSMB Female RF Coaxial Connector – Compatible with RG178/U CableSSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
