SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMB-KFB1A-T1
Certification :
ISO9001, RoHS, CE
Supply Ability :
100000 pcs/year
Price :
Discuss
Packaging Details :
master carton
Delivery Time :
5-8 business days
Product name :
SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Durability :
500 times
Description

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Product Overview

The SMB series is a push-in locking RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It complies with MIL-C-39012 and IEC60169-10 standards, ensuring international compatibility.

Applications
Widely used in communication base stations, wireless communication equipment, and high-frequency loop connections in electronic instruments.

Product Features

Two-hole flange mount structure

Mates with 1# semi-rigid or semi-flexible coaxial cables

Compact and lightweight design

Easy to install and use

Excellent salt spray resistance

Reliable electrical performance in demanding environments

Product Specifications

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-4GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.34

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.3√F(GHz)dB

Contact resistance

Center conductor

 ≤6.0mΩ

Mechanical property

Outer conductor

 ≤1.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

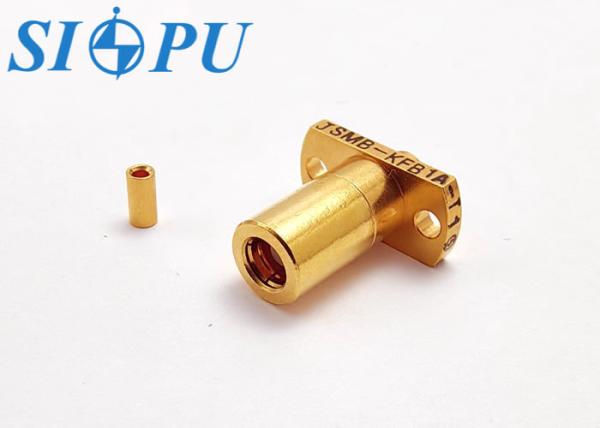

Product Image Gallery

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
