SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMB-JY2
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Supply Ability :
100000pcs/year
Price :
Discuss
Delivery Time :
5-8works days
Product name :
SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTEE
Durability :
500 times
Description

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Product Overview

The SMB series is a small push-in RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It is designed in compliance with MIL-C-39012 and IEC 60169-10 standards, ensuring compatibility and reliability in demanding RF applications.

Applications

Communication base stations

Wireless communication equipment

High-frequency loop connections in electronic instruments

Product Features

SMB male interface with snap-on locking mechanism

Threaded mounting structure for secure installation

Compatible with RG178/U coaxial cable

Small size and lightweight design

Easy installation and excellent high-frequency performance

Product Specifications

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.5

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

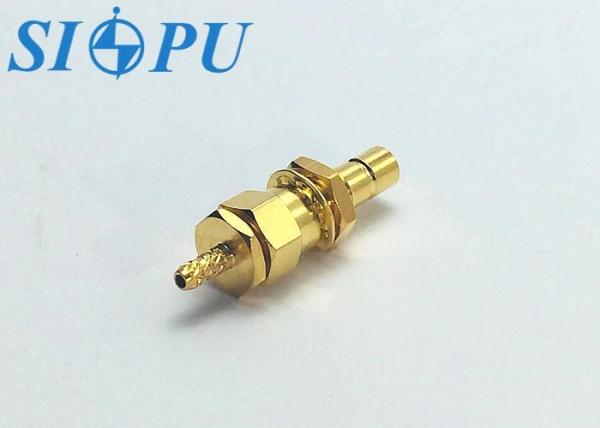

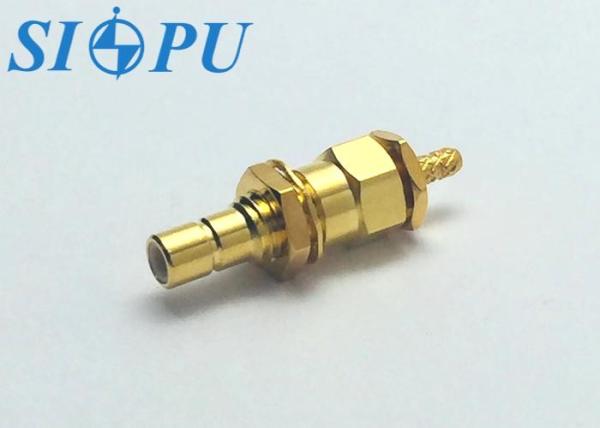

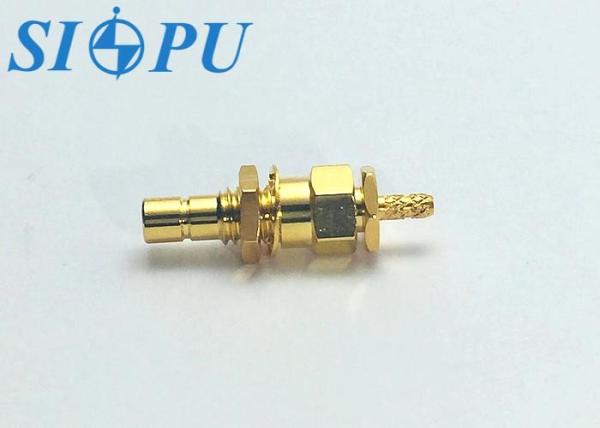

Product Image Gallery

SMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U CableSMB Male RF Coaxial Connector – Threaded Mount, Compatible with RG178/U Cable
