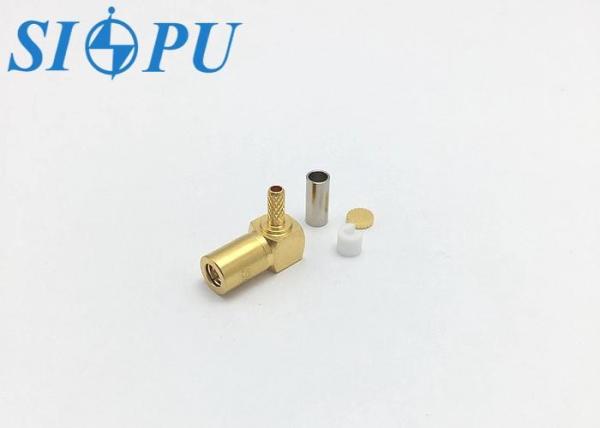

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMB-KW3
Certification :
ISO9001, RoHS, CE
Price :
Discuss
Packaging Details :
Carton
Supply Ability :
100000pcs/year
Delivery Time :
5-8work days
Product name :
SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
Gender :
Female
Type :
Right-angle
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Durability :
500 times
Description

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Product Overview

The SMB connector is a compact push-in locking RF connector designed primarily for connecting coaxial cables in high-frequency circuits. It is widely used in radio equipment and electronic instruments due to its small size, light weight, and reliable performance.

Applications

Electronic instruments

Radio communication equipment

RF systems and modules

Product Features

Right-angle (bent) SMB female interface

Compatible with RG316/U coaxial cable

Compact and lightweight design

Excellent electrical performance

Easy and secure snap-on connection

Product Specifications

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

 Temperature range -65～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 750V VSWR ≤1.5

Insulation resistance

 ≥1000MΩ Insertion loss ≤0.1√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤1.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

Product Image Gallery

SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U CableSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
