SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMB-KY3
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Supply Ability :
100000pcs/year
Price :
Discuss
Delivery Time :
5-8work days
Product name :
SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Insulating medium :
PTFE
Durability :
500 times
Description

SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Product Overview

The SMB series is a push-in locking RF coaxial connector developed in accordance with the MIL-C-30912 specification. It features a compact form factor, light weight, and excellent electrical performance. SMB connectors are commonly used in high-frequency circuits of radio equipment and electronic instruments for reliable RF coaxial cable connections.

Applications

Radio communication equipment

Electronic instruments

RF modules and test devices

Product Features

SMB female interface with snap-on locking mechanism

Threaded mount for secure installation

Compatible with RG316/U coaxial cable

Small size and lightweight

Easy to install and use

Product Specifications

SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-4GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.34

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤6.0mΩ

Mechanical property

Outer conductor

 ≤1.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold platin

 / /

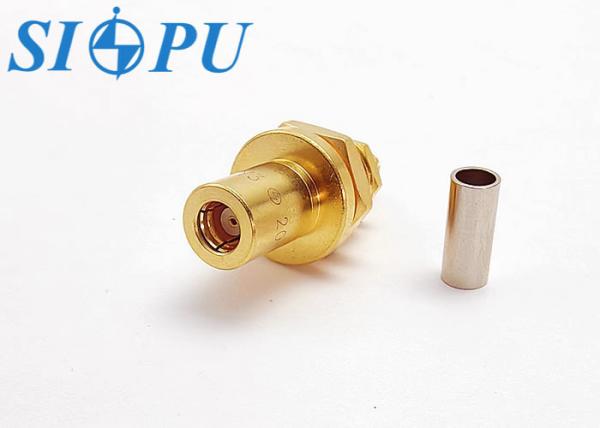

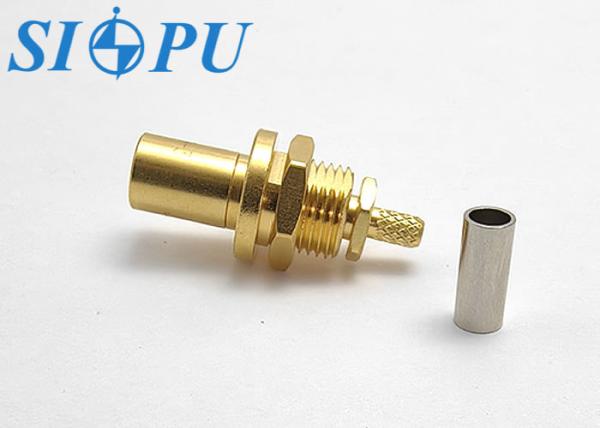

Product Image Gallery

SMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableSMB Female RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
